1N167 (9861-0) - Generac 6,500 Watt Portable Generator Engine Trim Parts Parts Diagram

6,500 Watt Portable Generator

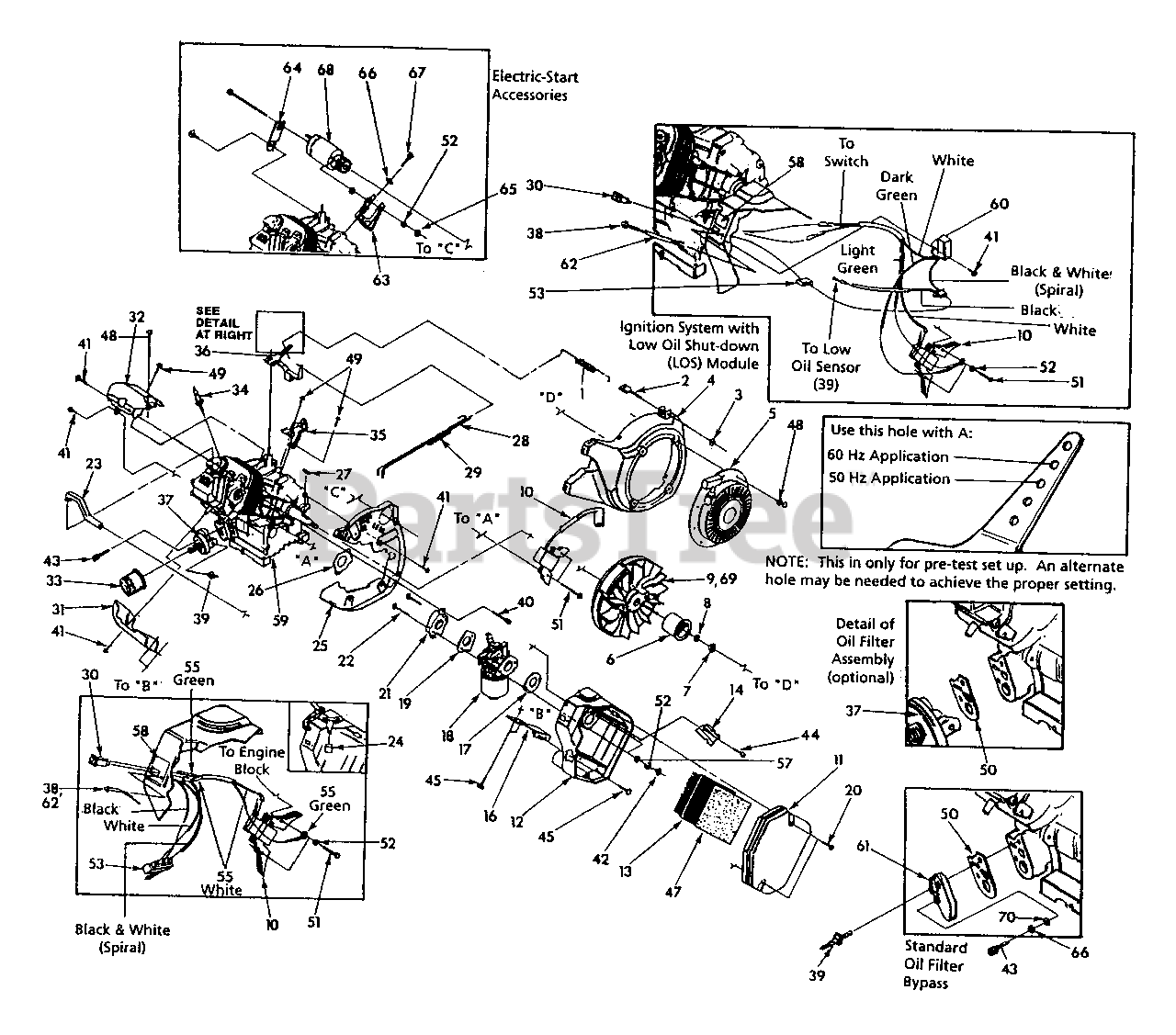

Engine Trim Parts Parts Diagram

  • Title

1

Briggs & Stratton 73100

Governor spring
(Superseded to 7073100SM)

$9.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 83502

M5 governor adjust bolt

$

$

Not available

3

Briggs & Stratton 83503

M5-0.8 Metal lock nut

$

$

Currently unavailable

4

Briggs & Stratton 92437

Blower housing assembly

$

$

Currently unavailable

5

Briggs & Stratton 81642

Recoil assembly

$

$

Currently unavailable

6

Briggs & Stratton 81641

Recoil cup

$

$

Currently unavailable

7

Briggs & Stratton 67890

Flywheel hex nut

$

$

Not available

8

Briggs & Stratton 67198N

Bevel washer

$

$

Currently unavailable

9

Briggs & Stratton 77147A

Flywheel assembly

$

$

Currently unavailable

10

Briggs & Stratton 84542

Ignition coil assembly

$

$

Currently unavailable

11

Briggs & Stratton 73104A

Air cleaner cover

$

$

Currently unavailable

12

Briggs & Stratton 73108A

Air cleaner base

$

$

Currently unavailable

13

Briggs & Stratton 73111

Air cleaner element
(Superseded to 73111GS)

$15.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 91204

Spit back plate

$

$

Not available

16

Briggs & Stratton 90827

Air box bracket

$

$

Not available

17

Briggs & Stratton 90970

Air cleaner gasket
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 91187

Carburetor
(Superseded to 7091187SM)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 89228

Carburetor/manifold gasket

$

$

Not available

20

Briggs & Stratton 78609

Air cleaner cover bolt

$

$

Not available

21

Briggs & Stratton 91028

Adapter "K"
(Superseded to 7091028YP)

$

$

Not available

22

Briggs & Stratton 81647

Carburetor mounting bolt

$

$

Not available

23

Briggs & Stratton 72745

Breather hose
(Superseded to 7072745YP)

$319.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 83504

Choke knob

$

$

Not available

25

Briggs & Stratton 73116A

Blower housing back plate

$

$

Currently unavailable

26

Briggs & Stratton 91039

Intake adapter gasket
(Superseded to 7091039YP)

$3.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 82774

Woodruff key 4 x 19mm

$

$

Not available

28

Briggs & Stratton 72735

Governor control rod

$

$

Not available

29

Briggs & Stratton 72789

Governor anti-lash spring

$

$

Currently unavailable

30

Briggs & Stratton 78653

Engine shut-off switch
(Superseded to 78653GS)

$

$

Not available

31

Briggs & Stratton 88434

Bottom wrapper

$

$

Currently unavailable

32

Briggs & Stratton 88433

Top wrapper

$

$

Currently unavailable

33

Briggs & Stratton 70185

Oil filter
(Superseded to 70185GS)

Note: (Optional)

$

$

Not available

34

Briggs & Stratton 72347

Spark plug
(Superseded to 491055S)

Note: (Champion 12YC)

$4.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 73101

Governor adjust bracket with idle control

$

$

Currently unavailable

36

Briggs & Stratton 72734

Governor lever assembly

$

$

Not available

37

Briggs & Stratton 94683

Oil filter adapter
(Superseded to 690369)

$5.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 85272

Low oil indicator lamp

$

$

Currently unavailable

39

Briggs & Stratton 77667

Low oil pressure switch

$

$

Not available

40

Briggs & Stratton 40945

M6-1.0 x 20mm Cap screw
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 45756

M6-1.0 x 10mm Screw

$

$

Not available

42

Briggs & Stratton 49813

M6-1.0 Hex nut
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 49821

M8-1.25 x 30mm Capscrew

$

$

Not available

44

Briggs & Stratton 59635

#8 x 3/8" Plastite screw

$

$

Currently unavailable

45

Briggs & Stratton 66476

M6-1.0 x 12mm Cap screw
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 81646

Air filter pre-cleaner

$

$

Not available

48

Briggs & Stratton 81668

M6-1.0 x 10mm Capscrew

$

$

Not available

49

Briggs & Stratton 83512

M8-1.25 x 15mm Screw
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 86999

Oil filter adapter gasket

$

$

Not available

51

Briggs & Stratton 92079

M6-1.0 x 25mm Screw
(Superseded to 7092079YP)

$4.99

$

Usually ships in 2-12 days

0

52

M6 Lockwasher

Note: Standard hardware item, available locally

$

$

Not available

53

Briggs & Stratton 84329

3-pin Male housing

$

$

Currently unavailable

55

Briggs & Stratton 92981

Ignition wire assembly

$

$

Currently unavailable

57

Briggs & Stratton 49811

M6 Flatwasher
(Superseded to 49811GS)

$1.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 93104

Low oil shutdown decal

$

$

Currently unavailable

59

Briggs & Stratton 91001A

Long block w/straight shaft

$

$

Currently unavailable

60

Briggs & Stratton 87221B

Low oil shutdown module

$

$

Currently unavailable

61

Briggs & Stratton 72709

Oil filter pad cover
(Superseded to 7072709YP)

$67.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93611

Sleeving

$

$

Not available

63

Briggs & Stratton 86260

Starter mount bracket

$

$

Not available

64

Briggs & Stratton 93922

Starter mount support
(Superseded to 93922GS)

$6.99

$

Usually ships in 2-12 days

0

65

1/4-20 Hex nut

Note: Standard hardware item, available locally

$

$

Not available

66

M8 Lockwasher

Note: Standard hardware item, available locally

$

$

Not available

67

Briggs & Stratton 40976

M8-1.25 x 20mm Capscrew

$

$

Not available

68

Briggs & Stratton 87266

Engine starter motor

$

$

Currently unavailable

69

Briggs & Stratton 91222B

Flywheel and ring gear assm.

$

$

Currently unavailable

70

M8 Flatwasher

Note: Standard hardware item, available locally

$

$

Not available
