1N167 (9861-0) - Generac 6,500 Watt Portable Generator Engine Long Block Parts Diagram

6,500 Watt Portable Generator

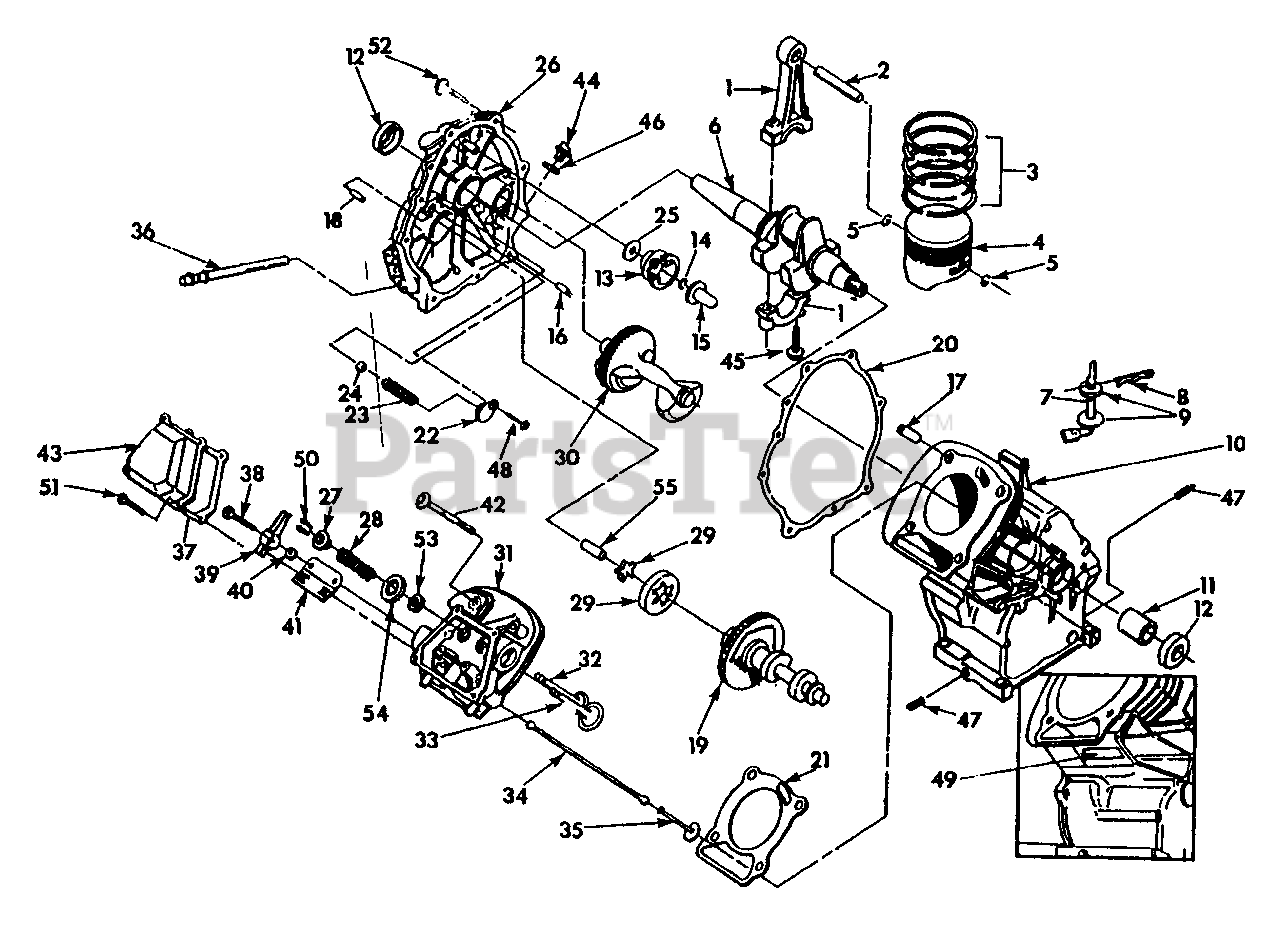

Engine Long Block Parts Diagram

  • Title

1

Briggs & Stratton 71978

Connecting rod with cap and bolt

$

$

Currently unavailable

2

Briggs & Stratton 71980

Piston pin

$

$

Currently unavailable

3

Briggs & Stratton 71977

Piston ring set

$

$

Currently unavailable

4

Briggs & Stratton 76339

Piston

$

$

Currently unavailable

5

Briggs & Stratton 71983

Piston pin retainer

$

$

Not available

6

Briggs & Stratton 76378

Crankshaft assm. w/gear

$

$

Currently unavailable

7

Briggs & Stratton 83948

Governor arm

$

$

Currently unavailable

8

Briggs & Stratton 78658

Governor arm "RP" pin

$

$

Not available

9

Briggs & Stratton 78659

Governor arm washer

$

$

Not available

10

Briggs & Stratton 88261

Crankcase

$

$

Currently unavailable

11

Briggs & Stratton 72654

Sleeve bearing

$

$

Currently unavailable

12

Briggs & Stratton 72655

Crankshaft seal

$11.99

$

In Stock, Qty 5

0

13

Briggs & Stratton 83912

Governor gear assembly

$

$

Currently unavailable

14

Briggs & Stratton 78645

Gov. retainer ("C" ring)

$

$

Not available

15

Briggs & Stratton 76365

Governor spool

$

$

Currently unavailable

16

Briggs & Stratton 78699B

Dowel sleeve (12mm I.D.)

$

$

Currently unavailable

17

Briggs & Stratton 78699C

Dowel sleeve (12mm I.D.)

$

$

Currently unavailable

18

Briggs & Stratton 87710

Solid dowel

$

$

Currently unavailable

19

Briggs & Stratton 83932

Camshaft assembly

$

$

Currently unavailable

20

Briggs & Stratton 76701

Crankcase gasket

$

$

Not available

21

Briggs & Stratton 73142

Cylinder head gasket
(Superseded to 7073142YP)

$16.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 78691

Oil pressure relief cover

$

$

Not available

23

Briggs & Stratton 83918

Pressure relief spring

$

$

Currently unavailable

24

Briggs & Stratton 76362

Pressure relief ball

$

$

Currently unavailable

25

Briggs & Stratton 76361

Thrust washer

$

$

Not available

26

Briggs & Stratton 88260B

Gear cover

$

$

Currently unavailable

27

Briggs & Stratton 86514

Valve spring retainer

$

$

Not available

28

Briggs & Stratton 83946

Valve spring

$

$

Currently unavailable

29

Briggs & Stratton 86025

Geroter set

$

$

Not available

30

Briggs & Stratton 84430

Balancer

$

$

Currently unavailable

31

Briggs & Stratton 83293

Cylinder head with valve seats and guides

$

$

Currently unavailable

32

Briggs & Stratton 86516

Exhaust valve

$

$

Not available

33

Briggs & Stratton 86517

Intake valve

$

$

Not available

34

Briggs & Stratton 88396B

Push rod

$

$

Currently unavailable

35

Briggs & Stratton 83897

Tappet

$

$

Not available

36

Briggs & Stratton 77158

Oil pickup assembly

$

$

Not available

37

Briggs & Stratton 71987

Rocker cover gasket
(Superseded to 7071987YP)

$12.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 72694

Pivot ball stud

$

$

Not available

39

Briggs & Stratton 83907

Rocker arm

$

$

Not available

40

Briggs & Stratton 72696

Jam nut (rocker arm)

$

$

Currently unavailable

41

Briggs & Stratton 78694

Push rod guide plate

$

$

Not available

42

Briggs & Stratton 73149

M8 x 100mm Head bolt

$

$

Currently unavailable

43

Briggs & Stratton 83938

Rocker cover breather assembly

$

$

Not available

44

Briggs & Stratton 76329

Oil fill plug

$

$

Not available

45

Briggs & Stratton 71979

Connecting rod bolt

$

$

Currently unavailable

46

Briggs & Stratton 86254

"O" Ring

$

$

Currently unavailable

47

Briggs & Stratton 78697

3/8" NPT Pipe plug

$

$

Currently unavailable

48

Briggs & Stratton 78692

M5-0.8 x 8mm Screw

$

$

Currently unavailable

49

Briggs & Stratton 82773B

Decal, serial number

$

$

Currently unavailable

50

Briggs & Stratton 86515

Valve spring keeper

$

$

Not available

51

Briggs & Stratton 78606

M6-1.0 x 12mm Screw with washer

$

$

Currently unavailable

52

Briggs & Stratton 73144

M8-1.25 x 45mm Flange bolt

$

$

Currently unavailable

53

Briggs & Stratton 78672

Valve stem seal

$

$

Not available

54

Briggs & Stratton 89673

Valve spring washer

$

$

Not available

55

Briggs & Stratton 83921

Generator bearing tube shaft

$

$

Currently unavailable
