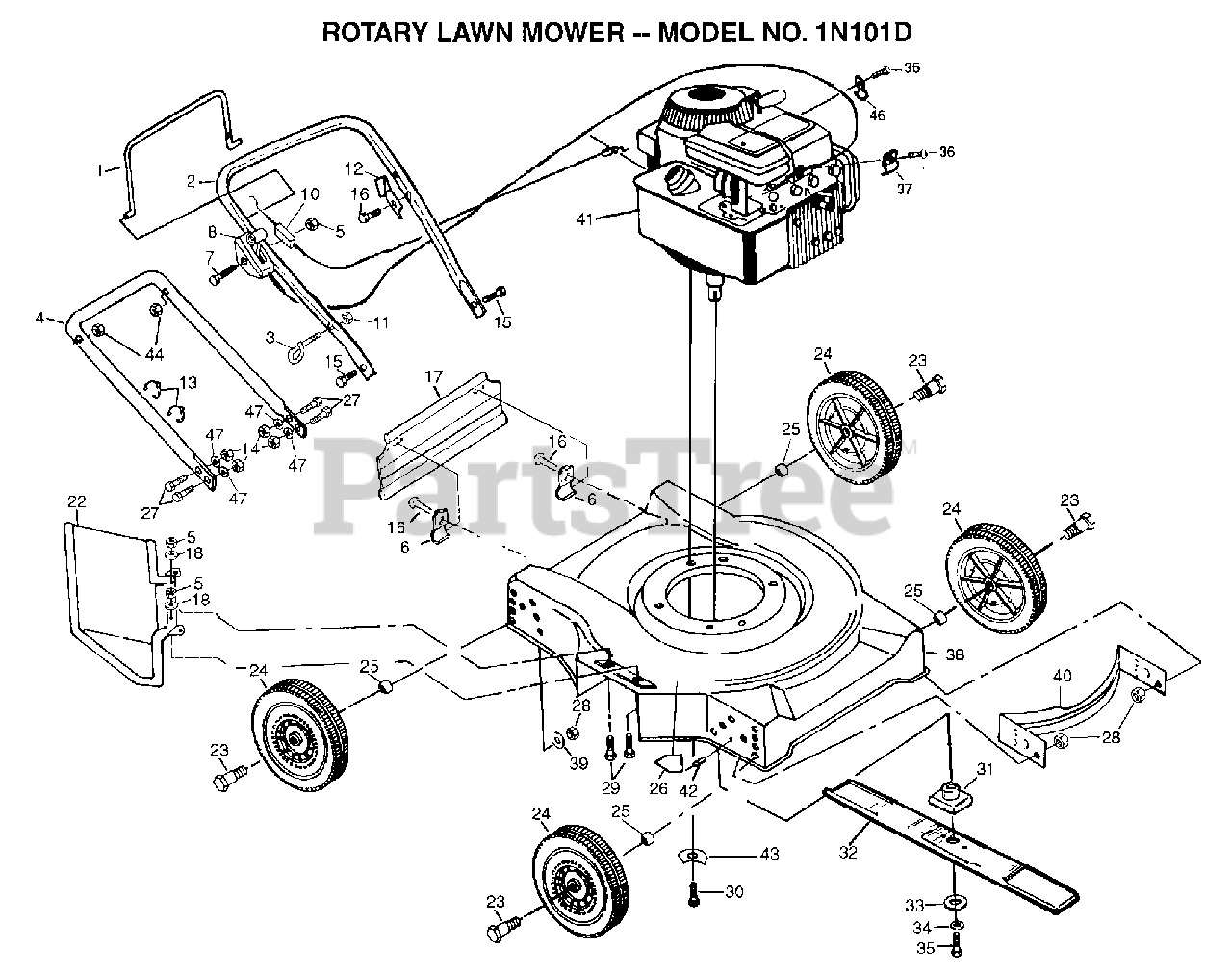

1N101 D - Electrolux/AYP Walk-Behind Mower (1996) LAWN MOWER Parts Diagram

Walk-Behind Mower

LAWN MOWER Parts Diagram

  • Title

1

Electrolux/AYP 86902

CONTROL BAR PM
(Superseded to 532086902)

$

$

Not available

2

Electrolux/AYP 132826X479

UPPER HANDLE
(Superseded to 165538X479)

$

$

Not available

3

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

4

Electrolux/AYP 851646X479

HANDLE LWR PM
(Superseded to 532196176)

$

$

Not available

5

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

6

Electrolux/AYP 87584X004

"BRKT,DEFL PM"
(Superseded to 532192301)

$

$

Not available

7

Electrolux/AYP 144929

SCREW.HXHD.WASH.
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 131922

SUB= 532131922

$

$

Not available

10

Electrolux/AYP 851809

CABLE.CONT.ENG

$

$

Not available

11

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

12

Electrolux/AYP 850733X004

"BRKT,UPSTOP"
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 66426

SUB= 7192J
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 132010

LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 74350424

BOLT 1/4-20-1 1/2

$

$

Not available

16

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

17

Electrolux/AYP 140541

SKIRT.REAR.20RD.
(Superseded to 532189009)

$

$

Not available

18

Electrolux/AYP 53847

SUB= 19091214

$

$

Not available

22

Electrolux/AYP 752052

"GRD,DISCHARGE"
(Superseded to 584365501)

$2.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 67609

AXLE BOLT
(Superseded to 532179613)

$6.49

$

In Stock, only 2 left!

0

24

Electrolux/AYP 130491

WHEEL ASSY
(Superseded to 583716501)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 136624

SUB= 532136624
(Superseded to 532136624)

$9.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 107339X

DECAL HYT
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 137009

SUB= 532137009

$

$

Not available

28

Electrolux/AYP 751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

30

Electrolux/AYP 150406

BOLT.ENG.3/8-16
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 145106

BLADE.20.MULCH.AY
(Superseded to 532145106)

$20.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, only 2 left!

0

34

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

36

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 213146

CABLE CLAMP

$

$

Not available

38

Electrolux/AYP 701106

SUB= 48285
(Superseded to 48320)

$

$

Not available

39

Electrolux/AYP 61537

SUB= 19132012

$

$

Not available

40

Electrolux/AYP 700839X479

FRONT BAFFLE

$

$

Not available

41

REFER TO IMAGE

$

$

Not available

42

Electrolux/AYP 128415

BLIND RIVET
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 851201X0047

ENGINE WASHER

$

$

Not available

44

Electrolux/AYP 132004

SUB= 73800400

$

$

Not available

46

Electrolux/AYP 87930

GUIDE CLIP PM
(Superseded to 532087930)

$5.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 55611

STEEL WASHER
(Superseded to 532055611)

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 145653

MANUAL.OP.GEN.RTA
(Superseded to 582964701)

$4.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 153522

MANUAL.P.1N101DM

$

$

Not available
