1D2A3 A - Electrolux/AYP Lawn Tractor (1993) TRANSAXLE Parts Diagram

Lawn Tractor

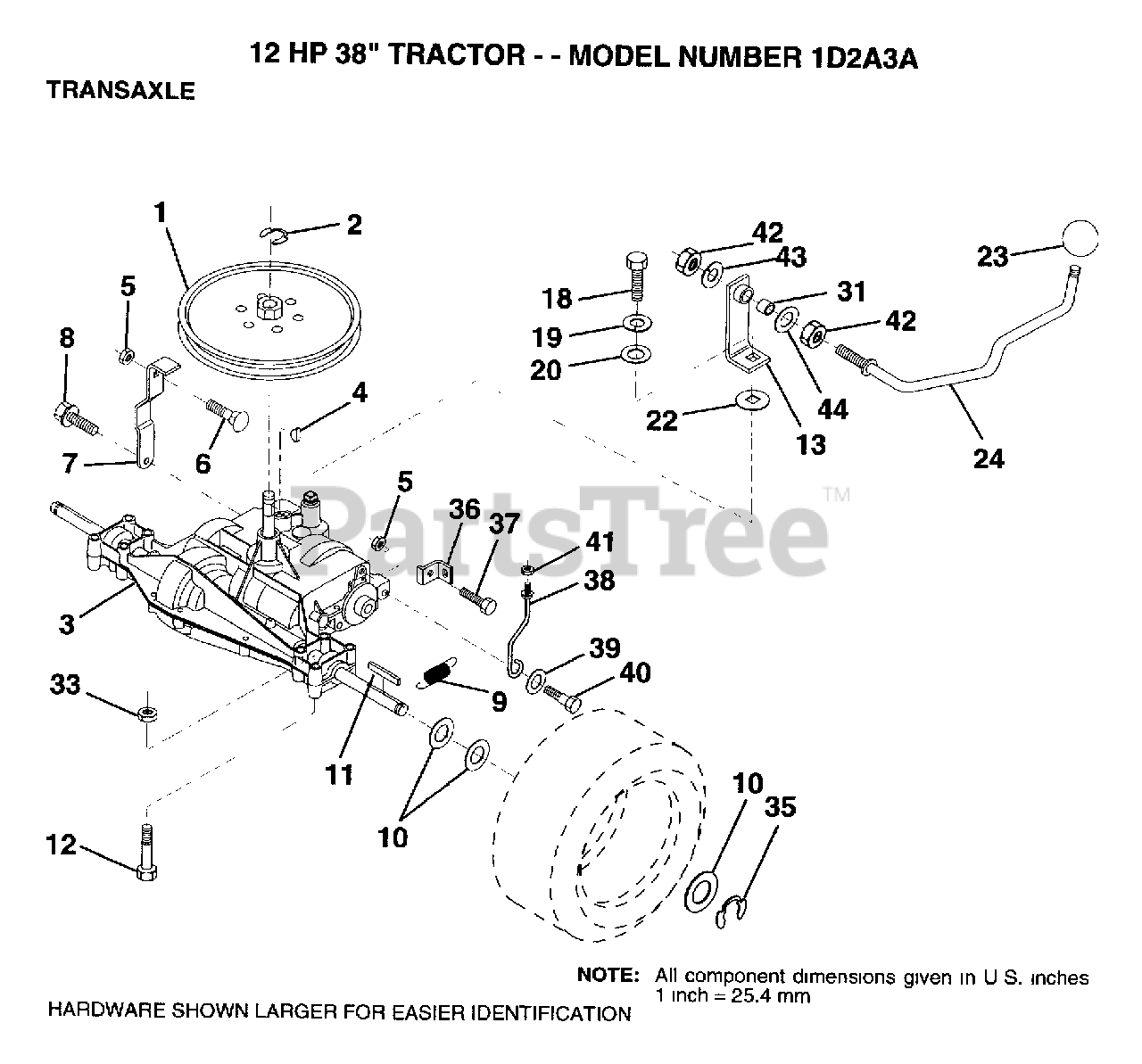

TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 123385X

PULLEY
(Superseded to 532123385)

$45.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

3

Electrolux/AYP 2000-06

TRANSAXLE DANA 6 SP

$

$

Not available

4

Murray 2228M

SUB= 2228M1

$

$

Not available

5

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 131939

STRAP.TORQUE.LH

$

$

Not available

8

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

9

$

$

Not available

10

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 123583X

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, only 4 left!

0

12

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 137491

BRACKET.ASM.SHIFT
(Superseded to 532137491)

$

$

Not available

18

Electrolux/AYP 71040412

SUB= 74550412

$

$

Not available

19

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 19091210

WASHER LT
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 131930

ROD.SHIFT.CNTR.LR

$

$

Not available

$

$

Not available

33

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 131935

BRACKET.BRAKE

$2.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 131937

KEEPER.BELT.RH

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 132827

BOLT SHD 5/16-18
(Superseded to 532132827)

$

$

Not available

41

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 73220700

NUT
(Superseded to 873220700)

$2.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 19151612

WASHER
(Superseded to 819151612)

$6.49

$

Usually ships in 3-10 days

0
