1D2A3 A - Electrolux/AYP Lawn Tractor (1993) MOWER LIFT LEVER Parts Diagram

Lawn Tractor

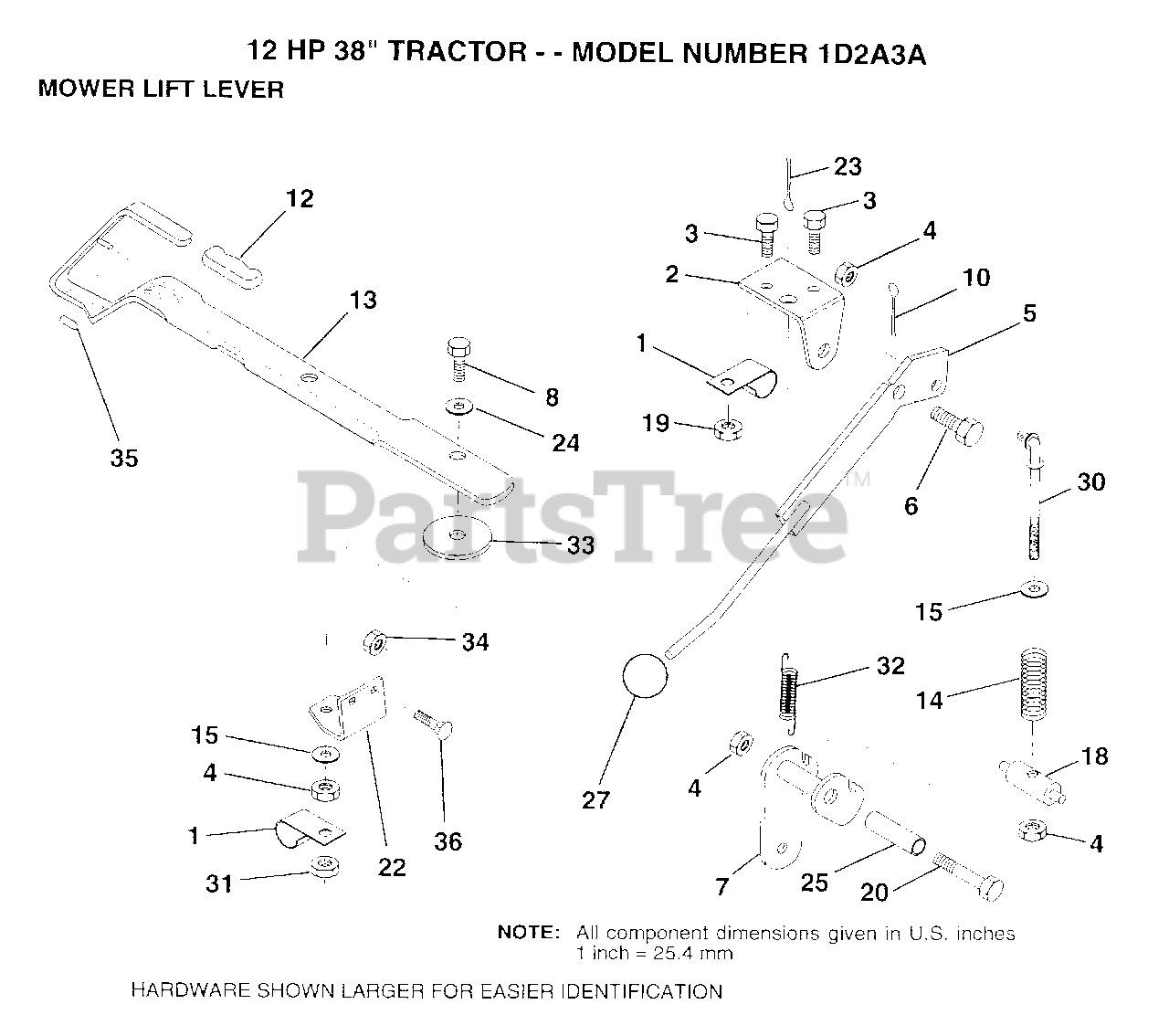

MOWER LIFT LEVER Parts Diagram

  • Title
1

Electrolux/AYP 126470X

"CLIP,INSULATOR"
(Superseded to 532126470)

$3.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 122018X

BRKT CLUTCH
(Superseded to 532122018)

$

$

Not available

3

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 132552

CLUTCH LEVER AS
(Superseded to 532132552)

$

$

Not available

6

Electrolux/AYP 106451X

"BOLT, SHOULDER LT"
(Superseded to 532106451)

$2.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 135110

MWR CLUT ARM ASM

$

$

Not available

8

Electrolux/AYP 74930624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 122027X

GRIP HANDLE
(Superseded to 532122027)

$

$

Not available

13

Electrolux/AYP 136658

LEVER LIFT LR
(Superseded to 532136658)

$

$

Not available

14

Electrolux/AYP 133939

COMP CLUTCH SPRNG
(Superseded to 532133939)

$

$

Not available

15

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 135107

TRUNNION
(Superseded to 532135107)

$

$

Not available

19

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

20

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 132561

LIFT LEVER BRKT
(Superseded to 532132561)

$

$

Not available

23

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 7672J

WASHER
(Superseded to 532007672)

$

$

Not available

25

Electrolux/AYP 121933X

TUBE SPACER
(Superseded to 532121933)

$

$

Not available

27

Electrolux/AYP 106932X

KNOB T(3/8 HOLE)
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

30

Electrolux/AYP 135039

ROD TENSION CLUTC
(Superseded to 532135039)

$

$

Not available

31

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 133435

SPRING EXT
(Superseded to 532133435)

$

$

Not available

33

Electrolux/AYP 62333

WASHER
(Superseded to 532062333)

$

$

Not available

34

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 133603

VINYL CAP RED
(Superseded to 532133603)

$2.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0
