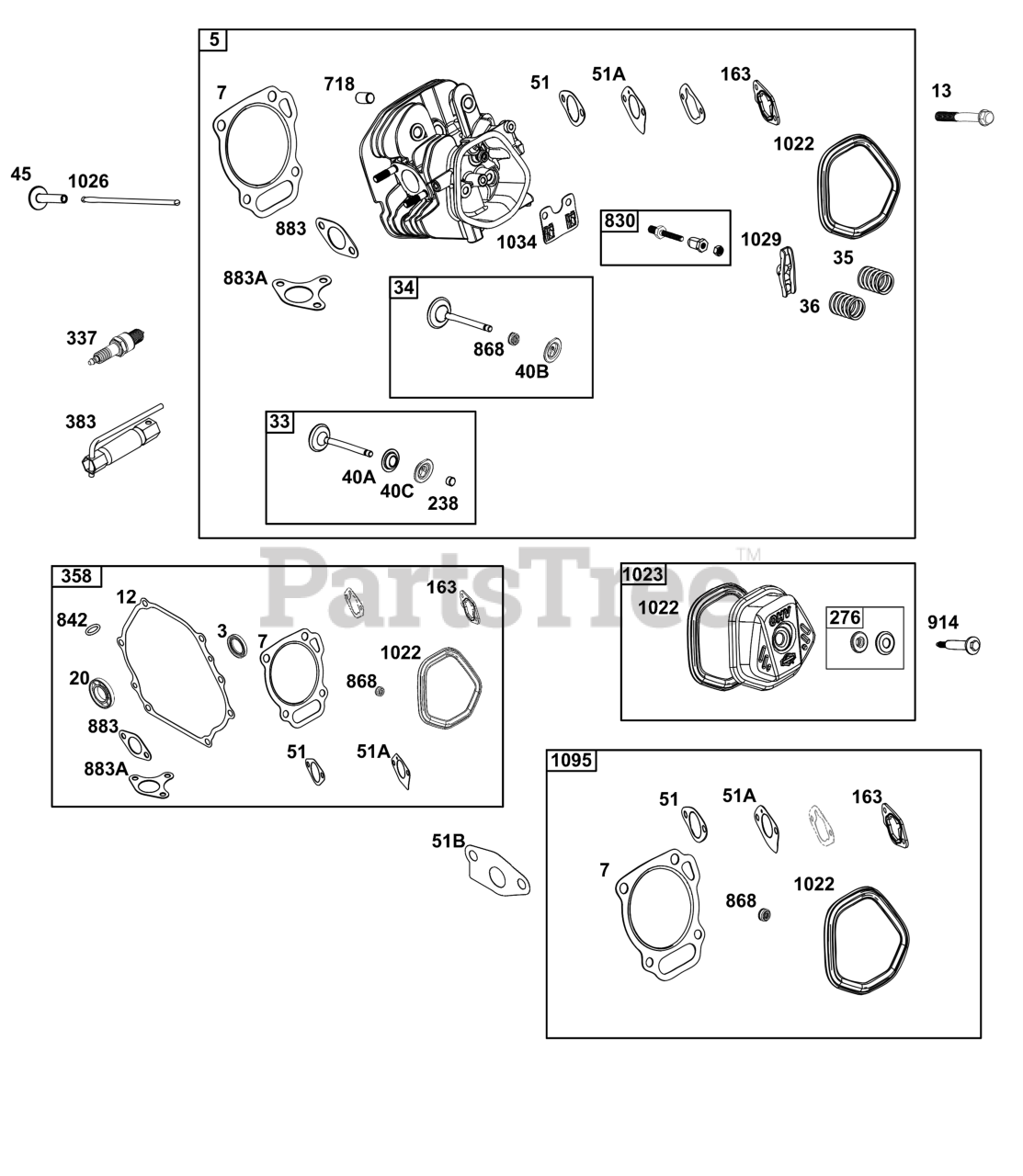

19T132-0002-H5 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 593093

HEAD, Cylinder

$232.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 592834

GASKET, Cylinder Head

$14.99

$

Usually ships in 2-12 days

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

13

Briggs & Stratton 797791

SCREW

Note: (Cylinder Head)

$3.99

$

In Stock, only 3 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

33

Briggs & Stratton 592612

VALVE, Exhaust

$26.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 592611

VALVE, Intake

$18.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 591814

SPRING, Valve

Note: (Intake)

$7.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 591814

SPRING, Valve

Note: (Exhaust)

$7.49

$

Usually ships in 2-12 days

0

40A

Briggs & Stratton 797782

RETAINER, Valve

$6.49

$

Usually ships in 2-12 days

0

40B

Briggs & Stratton 591815

RETAINER, Valve

$6.49

$

In Stock, only 1 left!

0

40C

Briggs & Stratton 591816

RETAINER, Valve

$6.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 797786

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 591779

GASKET, Intake

$4.49

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 591798

GASKET, Intake

$4.49

$

In Stock, Qty 11

0

51B

Briggs & Stratton 593320

GASKET, Intake

$3.49

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

238

Briggs & Stratton 591817

CAP, Valve

$9.49

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 797847

WASHER, Sealing

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 798615

PLUG, Spark

$7.49

$

In Stock, only 4 left!

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

718

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

830

Briggs & Stratton 591088

STUD, Rocker Arm

$7.99

$

Usually ships in 2-12 days

0

842

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

868

Briggs & Stratton 797854

SEAL, Valve

$12.99

$

Usually ships in 2-12 days

0

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

883A

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

914

Briggs & Stratton 797848

SCREW

Note: (Rocker Cover)

$5.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 797846

GASKET, Rocker Cover

$9.99

$

In Stock, Qty 5

0

1023

Briggs & Stratton 799778

COVER, Rocker

$37.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 591818

ROD, Push

$11.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 591087

ARM, Rocker

$20.99

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 591819

GUIDE, Push Rod

$20.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 593113

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$39.99

$

Usually ships in 2-12 days

0
