19T132-0002-H5 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

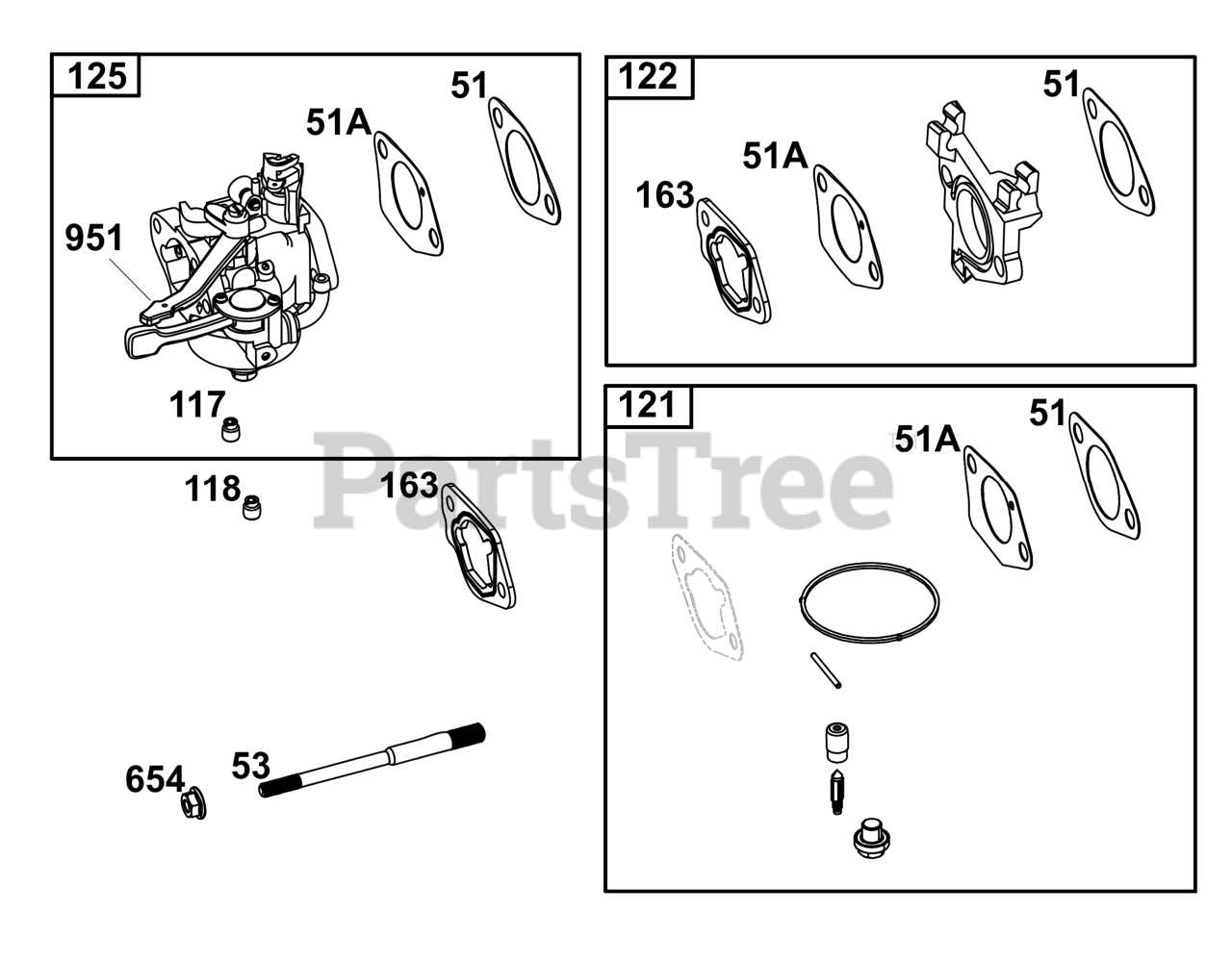

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 84002349

STUD

Note: (Carburetor)

$4.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 592598

JET, Main

Note: (Standard)

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 594713

JET, Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 84004390

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$44.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 596702

SPACER, Carburetor

$13.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 592594

CARBURETOR

$120.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 799883

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 10

0

654

Briggs & Stratton 690939

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 2 left!

0

951

Briggs & Stratton 593102

LEVER, Choke

$7.99

$

Usually ships in 2-12 days

0
