19N332-0001-H7 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

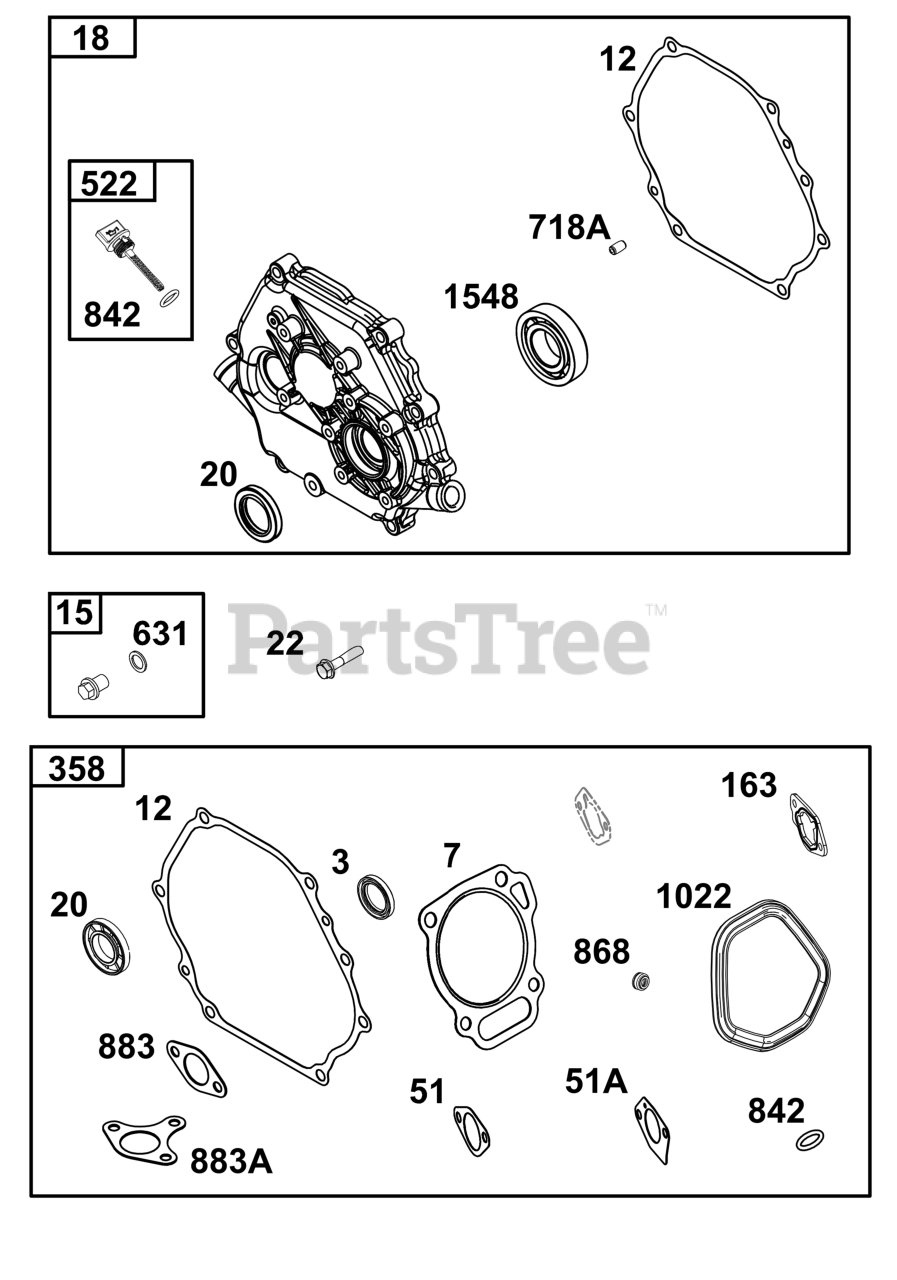

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 592597

GASKET, Crankcase

$14.99

$

Usually ships in 2-12 days

0

15

PLUG, Oil Drain

Note: (Part information located in Cylinder Group.)

$

$

Not available

18

Briggs & Stratton 84006791

COVER, CRANKCASE

$

$

Currently unavailable

20

Briggs & Stratton 591793

SEAL, Oil

Note: (PTO Side)

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 797776

SCREW

Note: (Crankcase Cover/Sump)

$4.49

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

358

Briggs & Stratton 593112

GASKET SET, Engine

Note: (Service Kits may include extra parts not specific to this engine.)

$70.99

$

Usually ships in 2-12 days

0

522

Briggs & Stratton 799941

PLUG, Dipstick/Fill

$8.99

$

Usually ships in 2-12 days

0

631

WASHER

Note: (Part information located in Cylinder Group.)

$

$

Not available

718A

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

842

Briggs & Stratton 797327

SEAL, O-Ring

$7.49

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

883A

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1548

Briggs & Stratton 591792

BEARING, Ball

Note: (Crankcase Cover/Sump)

$16.99

$

Usually ships in 2-12 days

0
