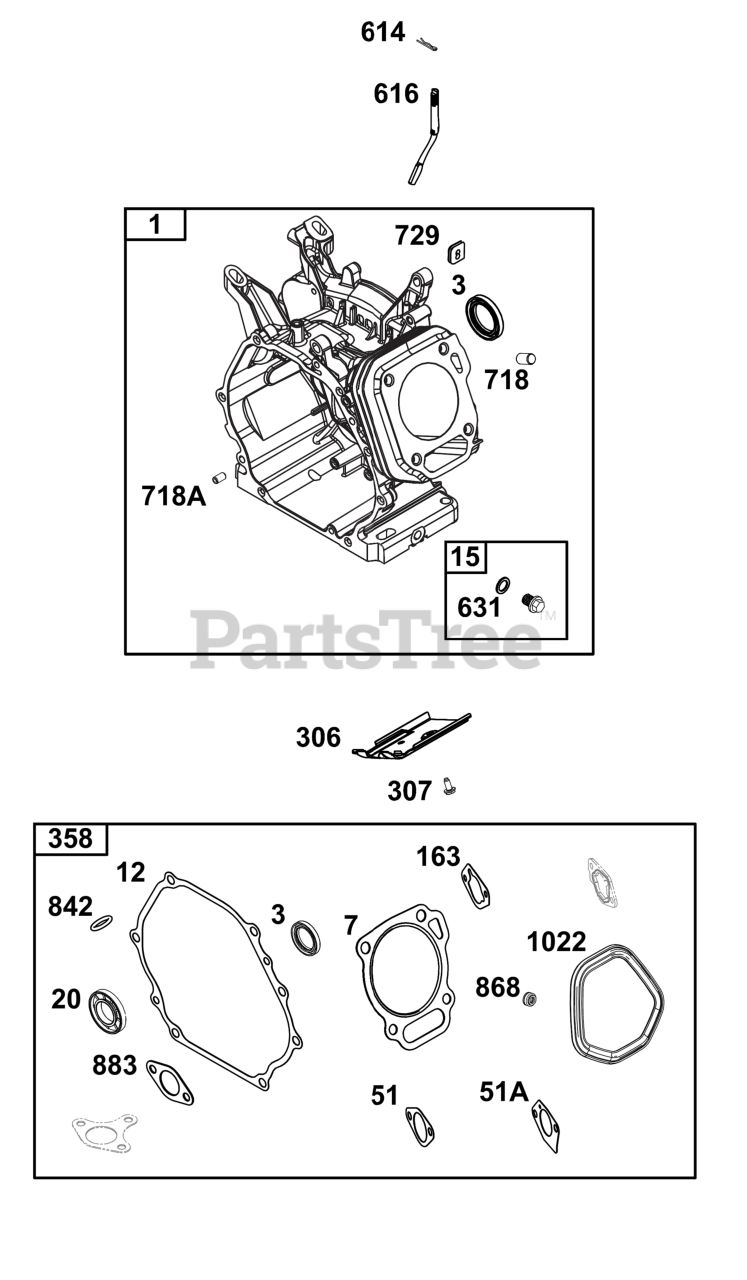

19N137-0344-B5 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 593140

CYLINDER ASSEMBLY

$291.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 591794

SEAL, Oil

Note: (Magneto Side)

$12.99

$

Usually ships in 2-12 days

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

15

Briggs & Stratton 797793

PLUG, Oil Drain

$5.99

$

Usually ships in 2-12 days

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

306

Briggs & Stratton 591790

SHIELD, Cylinder

$20.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 798618

SCREW

Note: (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

358

GASKET SET, Engine

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

614

Briggs & Stratton 797229

PIN, Cotter

$3.49

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 592615

CRANK, Governor

$11.99

$

Usually ships in 2-12 days

0

631

Briggs & Stratton 797794

WASHER

Note: (Oil Drain Plug)

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 797792

PIN, Locating

$5.99

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 797761

PIN, Locating

$4.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 797750

CLIP, Wire

$5.49

$

Usually ships in 2-12 days

0

842

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available
