19L232-0428-G1 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

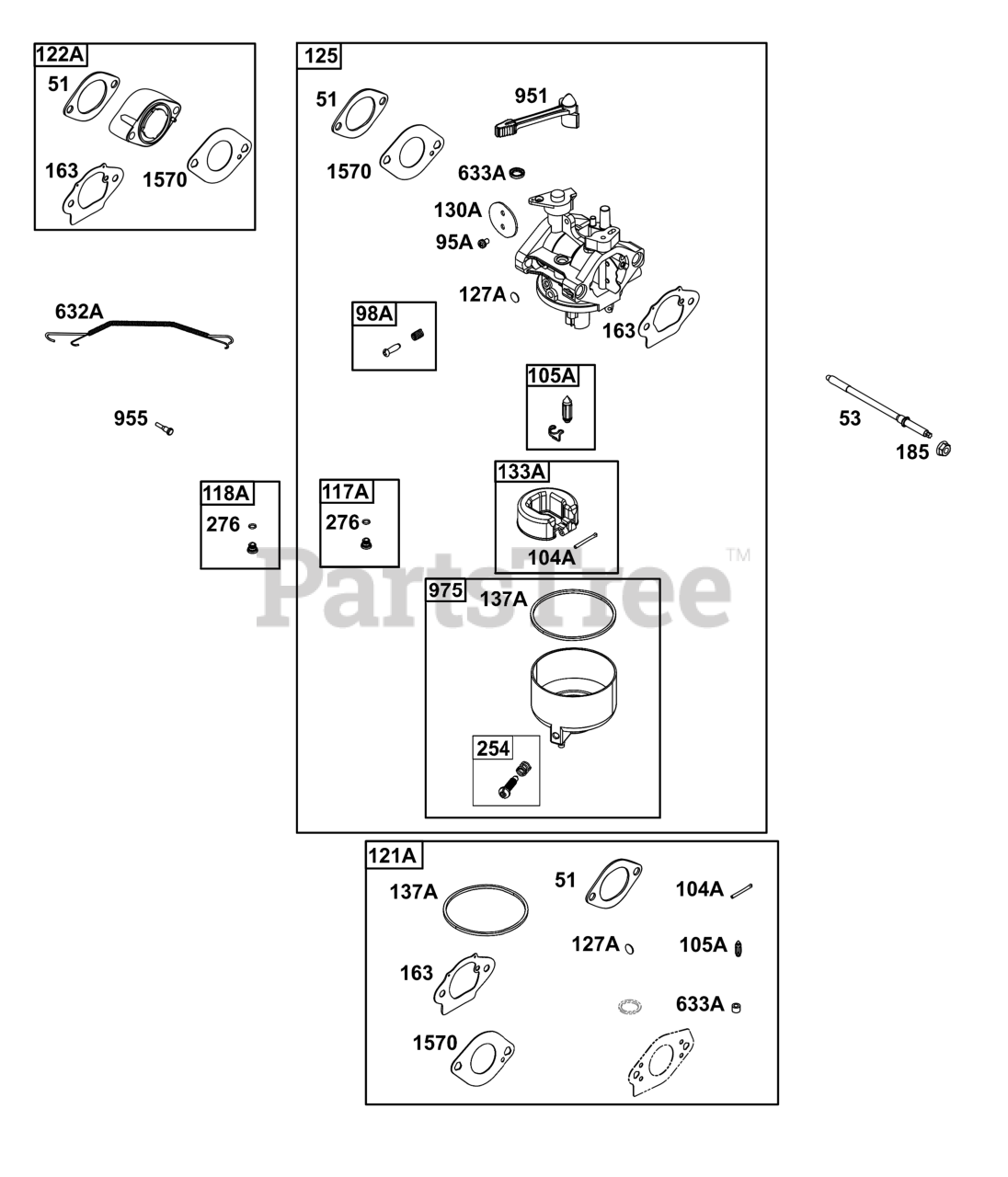

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 794830

STUD

Note: (Carburetor)

$8.49

$

In Stock, only 2 left!

0

95A

Briggs & Stratton 797161

SCREW

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 847139

KIT, Idle Speed

$5.49

$

Usually ships in 2-12 days

0

104A

Briggs & Stratton 597533

PIN, Float Hinge

$3.49

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 84004840

VALVE, Float Needle

$17.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 84004489

JET, Main

Note: (Standard)

$15.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 84004492

JET, MAIN

Note: (High Altitude)

$14.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 84004975

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$77.99

$

Usually ships in 2-12 days

0

122A

Briggs & Stratton 84004776

SPACER, Carburetor

$8.49

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 84003231

CARBURETOR

$155.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 84004841

PLUG, Welch

$3.99

$

Usually ships in 2-12 days

0

130A

Briggs & Stratton 84004397

VALVE, Throttle

$7.49

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 84004490

FLOAT, Carburetor

$14.99

$

Usually ships in 2-12 days

0

137A

Briggs & Stratton 84004205

GASKET, Float Bowl

$23.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692277

GASKET-AIR CLEANER

$6.99

$

In Stock, only 4 left!

0

185

NUT

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

254

Briggs & Stratton 595322

DRAIN, Carburetor Bowl

$3.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 84004488

WASHER, Sealing

$6.99

$

Usually ships in 2-12 days

0

632A

SPRING/LINK, Mechanical Governor

Note: (Part information located in Controls Group.)

$

$

Not available

633A

Briggs & Stratton 797629

SEAL, Choke/Throttle Shaft

$4.49

$

In Stock, only 1 left!

0

951

Briggs & Stratton 699961

LEVER, Choke

$11.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 595329

PLUG, Carburetor

$3.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 84004204

BOWL, Float

$11.99

$

Usually ships in 2-12 days

0

1570

Briggs & Stratton 84005011

GASKET, Spacer

$3.49

$

Usually ships in 2-12 days

0
