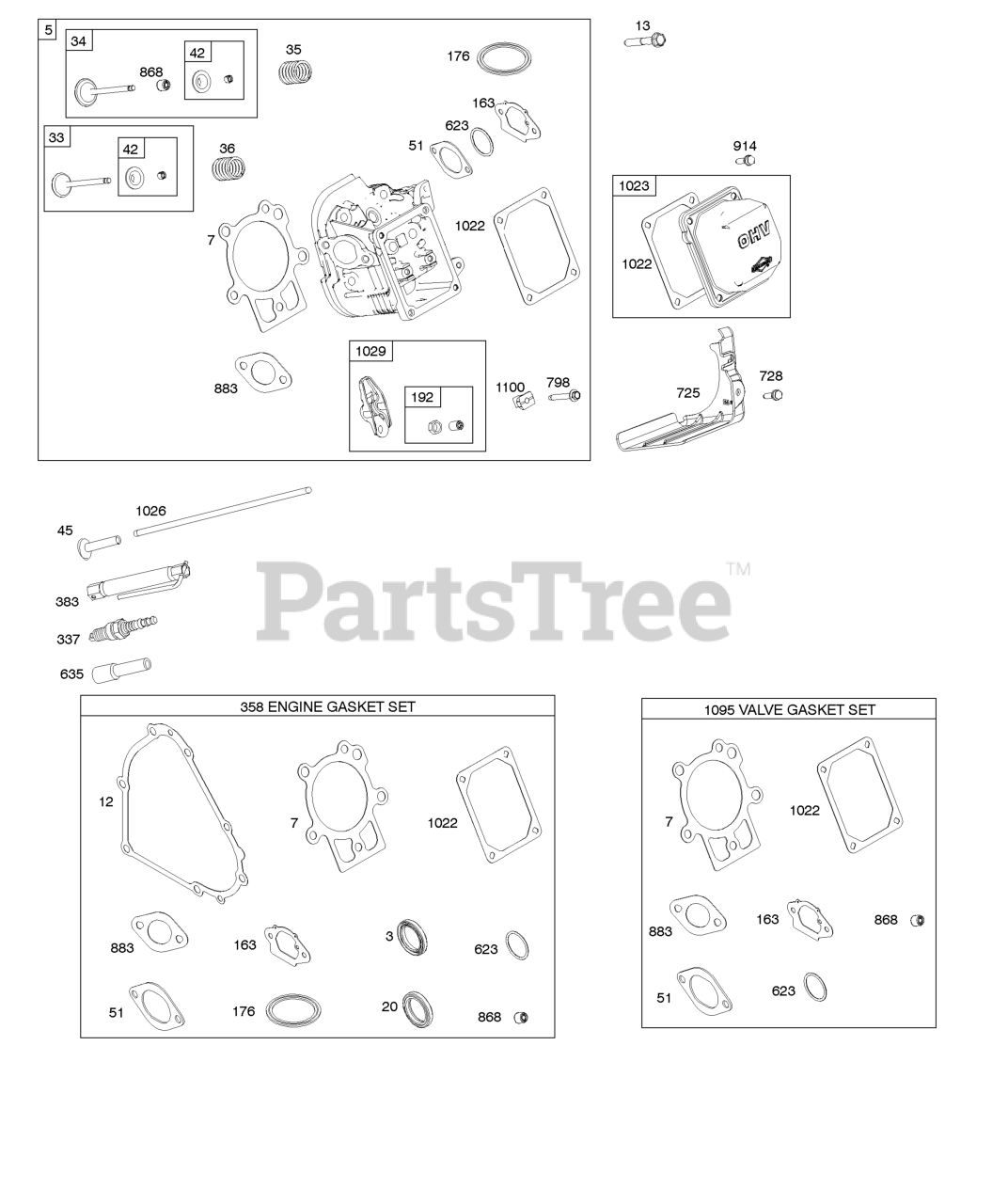

19L137-0113-F1 - Briggs & Stratton Horizontal Engine Cylinder Head, Gasket Set - Engine, Gasket Set - Valve Parts Diagram

Horizontal Engine

Cylinder Head, Gasket Set - Engine, Gasket Set - Valve Parts Diagram

  • Title

3

Briggs & Stratton 798991

SEAL, Oil

Note: (Magneto Side)

$10.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 799858

HEAD, Cylinder

$166.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 694872

GASKET, Cylinder Head

$20.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 798807

GASKET, Crankcase

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 794829

SCREW

Note: (Cylinder Head)

$3.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 798991

SEAL, Oil

Note: (PTO Side)

$10.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 697576

VALVE, Exhaust

$43.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 792200

VALVE, Intake

$25.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 694865

SPRING, Valve

Note: (Intake)

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 694865

SPRING, Valve

Note: (Exhaust)

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 499586

KEEPER, Valve

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 590396

GASKET, Intake

$4.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 798962

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 10

0

176

Briggs & Stratton 798965

SEAL, O-Ring

Note: (Air Cleaner Base)

$6.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 690083

ADJUSTER. Rocker Arm

$11.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 691043

PLUG, Spark

$6.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 491055S

PLUG, Spark

$4.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 798800

SET, Engine Gasket

$70.99

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

623

Briggs & Stratton 799051

SEAL, O-Ring

Note: (Carburetor Spacer)

$5.49

$

In Stock, only 2 left!

0

635

Briggs & Stratton 691909

BOOT, Spark Plug

$4.99

$

In Stock, Qty 5

0

725

Briggs & Stratton 590347

SHIELD, Heat

$20.99

$

Usually ships in 2-12 days

0

728

Briggs & Stratton 699481

SCREW

Note: (Heat Shield)

$3.99

$

In Stock, only 4 left!

0

798

Briggs & Stratton 697890

SCREW

Note: (Rocker Arm)

$3.49

$

In Stock, Qty 7

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

914

Briggs & Stratton 794827

SCREW

Note: (Rocker Cover)

$4.99

$

In Stock, only 1 left!

0

1022

Briggs & Stratton 690971

GASKET, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 697691

COVER, Rocker

$37.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 592673

ROD, Push

$8.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 690972

ARM, Rocker

$12.99

$

In Stock, Qty 13

0

1095

Briggs & Stratton 798801

GASKET SET, Valve

$45.99

$

Usually ships in 2-12 days

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 2 left!

0
