19K437-0111-01 - Briggs & Stratton Horizontal Engine Crankcase/Cover Sump, Cylinder/Piston Group Parts Diagram

Horizontal Engine

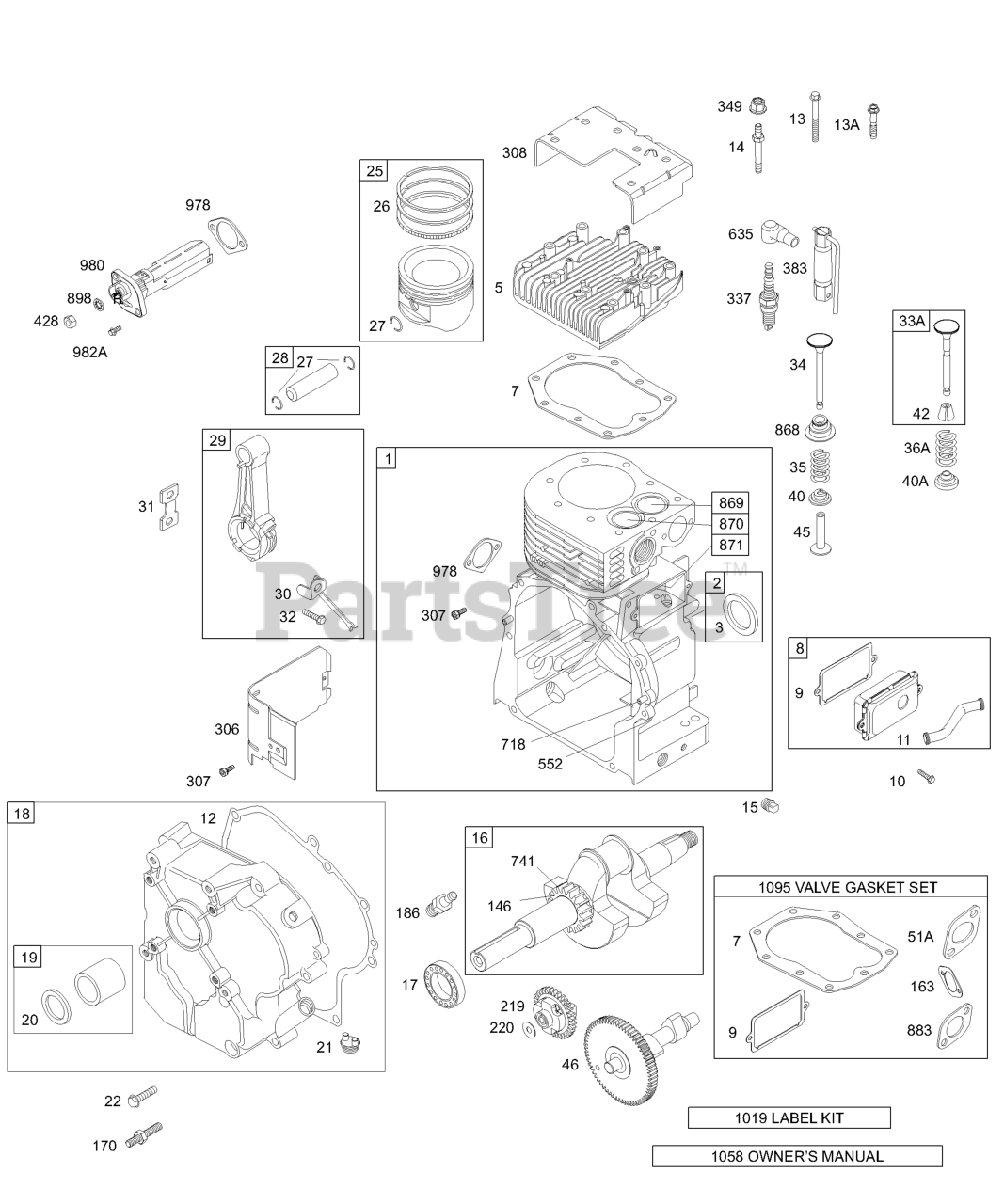

Crankcase/Cover Sump, Cylinder/Piston Group Parts Diagram

  • Title

1

Briggs & Stratton 495656

Cylinder Assembly

$

$

Not available

2

Briggs & Stratton 495657

Kit-Bushing/Seal
(Superseded to 698340)

Note: (Magneto Side)

$22.99

$

In Stock, Qty 5

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 693600

Head-Cylinder

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272163S

Gasket-Cylinder Head

$7.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 498038

Breather Assembly

$60.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803S

Gasket-Breather

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 691666

Screw

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691907

Tube-Breather

$24.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 27877

Gasket-Crankcase

Note: (.009" Thick)

$10.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 692221

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$8.99

$

In Stock, Qty 7

0

12

Briggs & Stratton 27876

Gasket-Crankcase

Note: (.005" Thick)

$

$

Not available

13

Briggs & Stratton 691651

Screw
(Superseded to 592244)

Note: (Cylinder Head) (2 9/16" Long)

$3.49

$

In Stock, Qty 20+

0

13A

Briggs & Stratton 690904

Screw

Note: (Cylinder Head) (3" Long)

$11.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 690289

Plug-Oil Drain

Note: (Carburetor Side)

$6.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (Opposite Side of Carburetor)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 495790

Crankshaft

$176.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 691069

Bearing-Ball

$35.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 496980

Cover-Crankcase

$85.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295964

Kit-Bushing/Seal

Note: (PTO Side)

$35.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391086S

SEAL, Oil

Note: (PTO Side)

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691625

Screw
(Superseded to 691103)

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 499961

Piston Assembly

Note: (.010" Oversize)

$67.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499962

Piston Assembly

Note: (.020" Oversize)

$156.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499963

Piston Assembly

Note: (.030" Oversize)

$

$

Not available

25

Briggs & Stratton 499960

Piston Assembly

Note: (Standard)

$140.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690016

Ring Set

Note: (.020" Oversize)

$78.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690017

Ring Set

Note: (.030" Oversize)

$68.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690015

Ring Set

Note: (.010" Oversize)

$33.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690014

Ring Set

Note: (Standard)

$

$

Not available

27

Briggs & Stratton 690975

LOCK, Piston Pin

$3.99

$

In Stock, Qty 11

0

28

Briggs & Stratton 499303

Pin-Piston

Note: (.005" Oversize)

$5.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 499302

Pin-Piston

Note: (Standard)

$15.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390773

Rod-Connecting

Note: (.020" Undersize)

$103.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390401

Rod-Connecting

Note: (Standard)

$

$

Not available

30

Briggs & Stratton 691728

Dipper-Connecting Rod

$8.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222114

Lock-Rod Screw

$

$

Not available

32

Briggs & Stratton 690352

Screw

Note: (Connecting Rod)

$6.99

$

In Stock, only 3 left!

0

33A

Briggs & Stratton 691794

Valve-Exhaust

$

$

Not available

34

Briggs & Stratton 261055S

Valve-Intake

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 691605

Spring-Valve

Note: (Intake)

$6.99

$

In Stock, only 1 left!

0

36A

Briggs & Stratton 691597

Spring-Valve

Note: (Exhaust)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 690656

Retainer-Valve

Note: (Intake)

$

$

Not available

40A

Briggs & Stratton 691939

Retainer-Valve

Note: (Exhaust)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

Keeper-Valve

Note: (Exhaust)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 691793

Tappet-Valve

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 691167

Camshaft

$

$

Not available

51A

Briggs & Stratton 691885

Gasket-Intake

Note: (Manifold To Engine)

$4.99

$

In Stock, Qty 8

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

163

Briggs & Stratton 692277

Gasket-Air Cleaner

$6.99

$

In Stock, only 4 left!

0

170

Briggs & Stratton 691695

Stud

Note: (Crankcase Cover/Sump) (Used In Position 1)

$6.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 691764

Connector-Hose

$14.99

$

In Stock, only 4 left!

0

219

Briggs & Stratton 496786

Gear-Governor

$32.99

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 691724

Washer

Note: (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

306

Briggs & Stratton 496797

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 691201

Cover-Cylinder Head

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592S

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

349

Briggs & Stratton 691105

Nut

Note: (Cylinder Head Cover)

$7.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838S

Wrench-Spark Plug

$6.49

$

In Stock, only 4 left!

0

428

Briggs & Stratton 691612

NUT

Note: (Oil GARD Kit)

$3.49

$

In Stock, only 1 left!

0

552

Briggs & Stratton 491986

Bushing-Governor Crank

$

$

Not available

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 12

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 691288

GEAR, Timing

$21.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 692036

Seal-Valve
(Superseded to 692324)

$

$

Not available

869

Briggs & Stratton 691703

Seat-Valve
(Superseded to 691844)

Note: (Intake)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 691844

Seat-Valve

Note: (Exhaust)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

Bushing-Valve Guide

Note: (Copper)

$14.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231218

Bushing-Valve Guide

Note: (Copper)

$14.99

$

In Stock, Qty 7

0

883

Briggs & Stratton 697815

Gasket-Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

898

Briggs & Stratton 691077

Washer

Note: (Oil GARD Kit

$3.49

$

In Stock, only 2 left!

0

978

Briggs & Stratton 273326S

Gasket-Oil Gard

$7.49

$

Usually ships in 2-12 days

0

980

Briggs & Stratton 496605

Kit-Oil Gard

$42.99

$

Usually ships in 2-12 days

0

982A

Briggs & Stratton 690350

Screw

Note: (Oil GARD) (Oil GARD Kit)

$3.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 693974

Kit-Label

$20.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 498534

Gasket Set-Valve

$28.99

$

Usually ships in 2-12 days
