19K432-0114-01 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

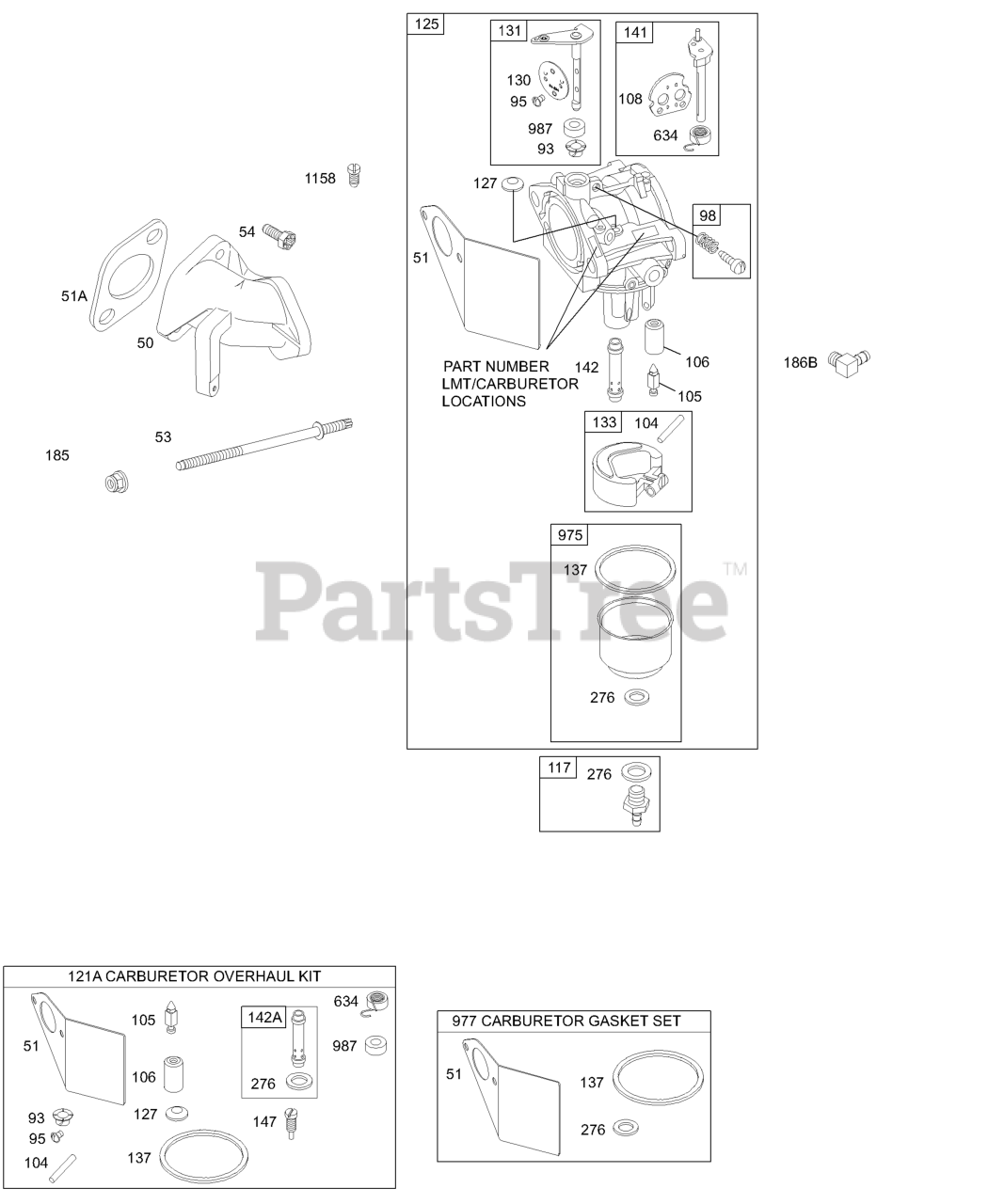

Carburetor Group Parts Diagram

  • Title

50

Briggs & Stratton 691157

Manifold-Intake

$

$

Not available

51

Briggs & Stratton 691886

Gasket-Intake

Note: (Manifold To Carburetor)

$

$

Not available

51A

Briggs & Stratton 691885

Gasket-Intake

Note: (Manifold To Engine)

$4.99

$

In Stock, Qty 7

0

53

Briggs & Stratton 691672

Stud

Note: (Carburetor)

$

$

Not available

54

Briggs & Stratton 93208

Screw

Note: (Intake Manifold)

$8.49

$

In Stock, only 3 left!

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Kit-Idle Speed

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Float Hinge

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 691782

Valve-Float Needle

$18.99

$

In Stock, Qty 7

0

106

Briggs & Stratton 691780

Seat-Inlet

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 692344

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 693612

Jet-Main

Note: (Standard)

$14.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 497578

Kit-Carburetor Overhaul

$

$

Not available

125

Briggs & Stratton 693615

Carburetor

$186.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694524

Plug-Welch

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 690468

Valve-Throttle

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 693602

Kit-Throttle Shaft

$36.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

$4.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 693601

Kit-Choke Shaft

$11.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 693613

Nozzle-Carburetor

$23.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 690958

NUT

Note: (Air Cleaner Base)

$3.49

$

In Stock, only 3 left!

0

186B

Briggs & Stratton 692317

Connector-Hose

Note: Used Before Code Date 01030500

$6.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

$5.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 690802

Spring/Seal Assembly

Note: (Choke Shaft)

$9.49

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 495933

Bowl-Float

$

$

Not available

977

Briggs & Stratton 497069

Gasket Set-Carburetor
(Superseded to 497849)

$

$

Not available

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.49

$

Usually ships in 2-12 days

0

1158

Briggs & Stratton 695659

Screw

Note: (Carburetor Plug)

$5.49

$

Usually ships in 2-12 days

0
