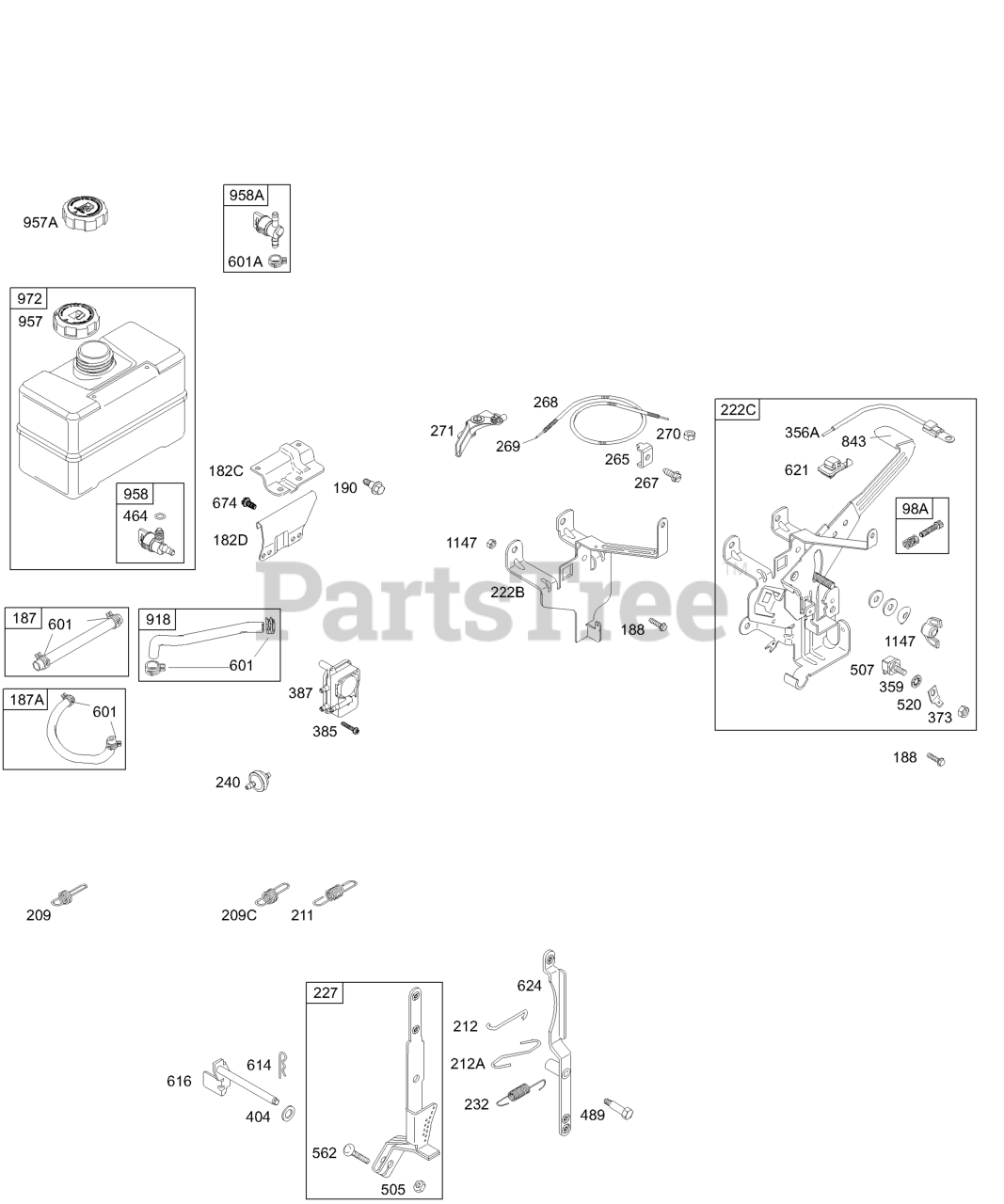

19K432-0110-01 - Briggs & Stratton Horizontal Engine Controls, Fuel Tank Parts Diagram

Horizontal Engine

Controls, Fuel Tank Parts Diagram

  • Title

98A

Briggs & Stratton 493280

Kit-Idle Speed

$8.99

$

Usually ships in 2-12 days

0

182C

Briggs & Stratton 695451

Bracket-Fuel Tank

$17.99

$

Usually ships in 2-12 days

0

182D

Briggs & Stratton 694592

Bracket-Fuel Tank

$17.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 296004

Line-Fuel
(Superseded to 791745)

Note: (Cut To Required Length)

$10.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 497029

Line-Fuel

Note: (Molded)

$16.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 8

0

190

Briggs & Stratton 692199

Screw

Note: (Fuel Tank)

$3.49

$

In Stock, only 3 left!

0

209

Briggs & Stratton 692136

Spring-Governor

Note: (Yellow)

$10.99

$

In Stock, only 1 left!

0

212

Briggs & Stratton 691853

Link-Throttle

Note: (Linkage Lever To Throttle Shaft)

$9.49

$

Usually ships in 2-12 days

0

212A

Briggs & Stratton 691854

Link-Throttle

Note: (Governor Control Lever To Linkage Lever)

$12.99

$

Usually ships in 2-12 days

0

222B

Briggs & Stratton 693606

Bracket-Control
(Superseded to 694182)

$37.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 692143

Lever-Governor Control

Note: (Short Lever)

$12.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 691848

Spring-Governor Link

$11.99

$

In Stock, only 3 left!

0

240

Briggs & Stratton 298090S

Filter-Fuel

$

$

Not available

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 5

0

267

Briggs & Stratton 690804

Screw

Note: (Casing Clamp)

$

$

Not available

268

Briggs & Stratton 691025

CASING, Control Wire

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

385

Briggs & Stratton 691673

Screw

Note: (Fuel Pump)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 692026

Pump-Fuel
(Superseded to 799056)

$30.99

$

In Stock, Qty 20+

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

464

Briggs & Stratton 691898

Seal-O Ring

Note: (Fuel Shut-off Valve)

$5.49

$

In Stock, only 1 left!

0

489

Briggs & Stratton 691776

Screw

Note: (Linkage Lever)

$

$

Not available

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 2 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 16

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 691405

Crank-Governor

$

$

Not available

624

Briggs & Stratton 691415

Lever-Linkage

$12.99

$

In Stock, only 1 left!

0

674

Briggs & Stratton 690708

Screw

Note: (Fuel Tank Bracket)

$2.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 691322

Sleeve-Lever

$2.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 497457

Hose-Vacuum

Note: (Molded)

$9.49

$

In Stock, Qty 5

0

957

Briggs & Stratton 692662

Cap-Fuel Tank

$9.49

$

In Stock, only 1 left!

0

958

Briggs & Stratton 698182

Valve-Fuel Shut Off

$

$

Not available

958A

Briggs & Stratton 698181

Valve-Fuel Shut Off
(Superseded to 698180)

$11.99

$

In Stock, Qty 20+

0

1147

Briggs & Stratton 691612

NUT

Note: (Control Bracket)

$3.49

$

In Stock, only 1 left!
