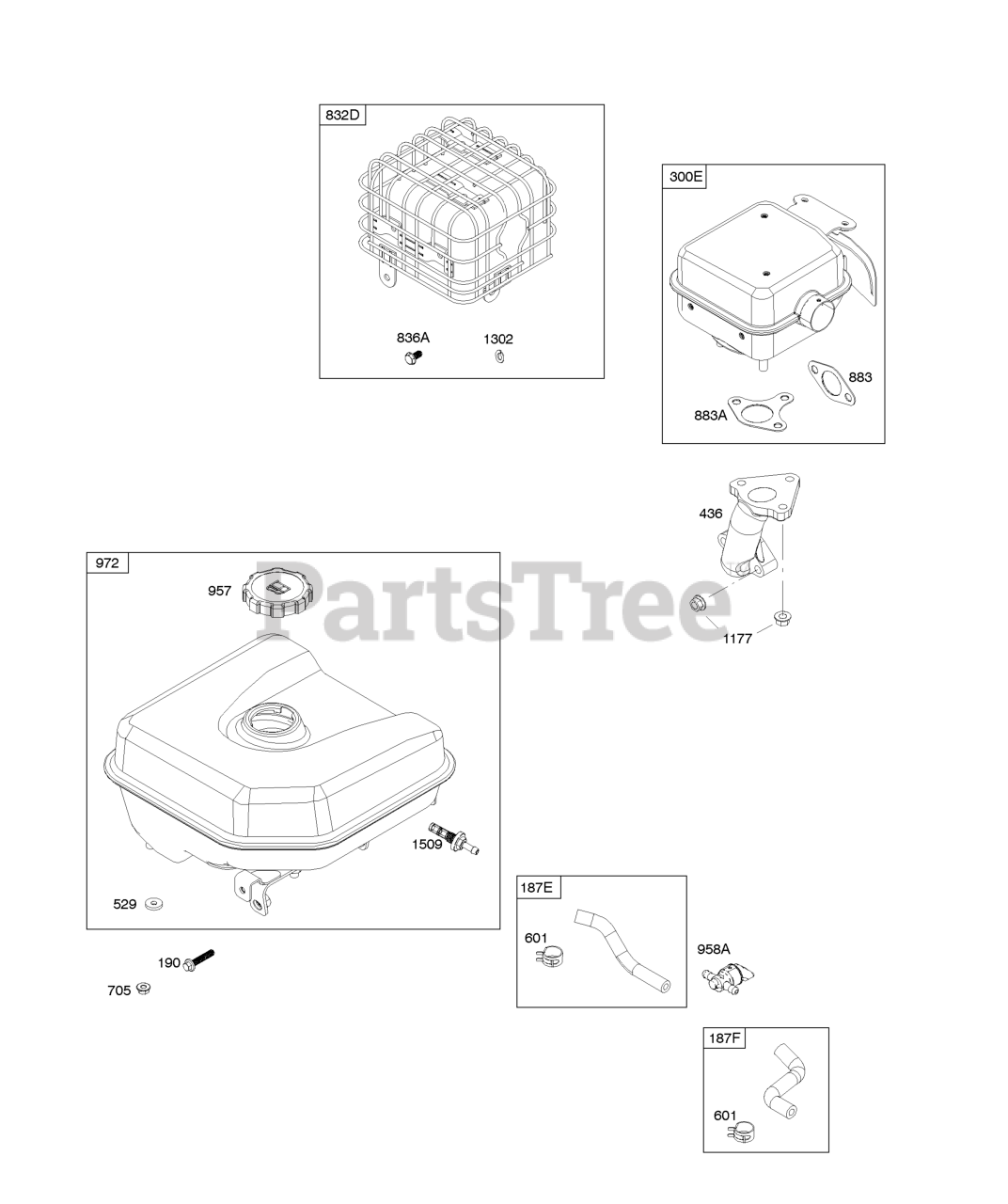

19J137-0010-F1 - Briggs & Stratton Horizontal Engine Exhaust System, Fuel Supply Parts Diagram

Horizontal Engine

Exhaust System, Fuel Supply Parts Diagram

  • Title

187E

Briggs & Stratton 593671

LINE, Fuel

Note: (Formed Hose)

$21.99

$

Usually ships in 2-12 days

0

187F

Briggs & Stratton 593670

LINE, Fuel

Note: (Formed Hose)

$21.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 590997

SCREW

Note: (Fuel Tank)

$3.49

$

Usually ships in 2-12 days

0

300E

Briggs & Stratton 593186

MUFFLER

$74.99

$

Usually ships in 2-12 days

0

436

Briggs & Stratton 799796

MANIFOLD, Exhaust

$45.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 799933

GROMMET

Note: (Fuel Tank)

$8.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

705

Briggs & Stratton 590965

NUT

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

832D

Briggs & Stratton 593187

GUARD, Muffler

$53.99

$

Usually ships in 2-12 days

0

836A

Briggs & Stratton 798976

SCREW

Note: (Muffler Guard)

$4.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 797770

GASKET, Exhaust

$6.99

$

Usually ships in 2-12 days

0

883A

Briggs & Stratton 799797

GASKET, Exhaust

$6.99

$

In Stock, only 1 left!

0

957

Briggs & Stratton 794641

CAP, Fuel Tank

$20.99

$

In Stock, only 3 left!

0

958A

Briggs & Stratton 593171

VALVE, Fuel Shut Off

$12.99

$

Usually ships in 2-12 days

0

972

Briggs & Stratton 593170

TANK, Fuel

$132.99

$

Usually ships in 2-12 days

0

1177

Briggs & Stratton 590965

NUT

Note: (Muffler)

$3.99

$

Usually ships in 2-12 days

0

1302

Briggs & Stratton 590457

WASHER

Note: (Muffler Guard)

$3.49

$

Usually ships in 2-12 days

0

1509

Briggs & Stratton 797346

OUTLET, Tank

$12.99

$

In Stock, Qty 7

0
