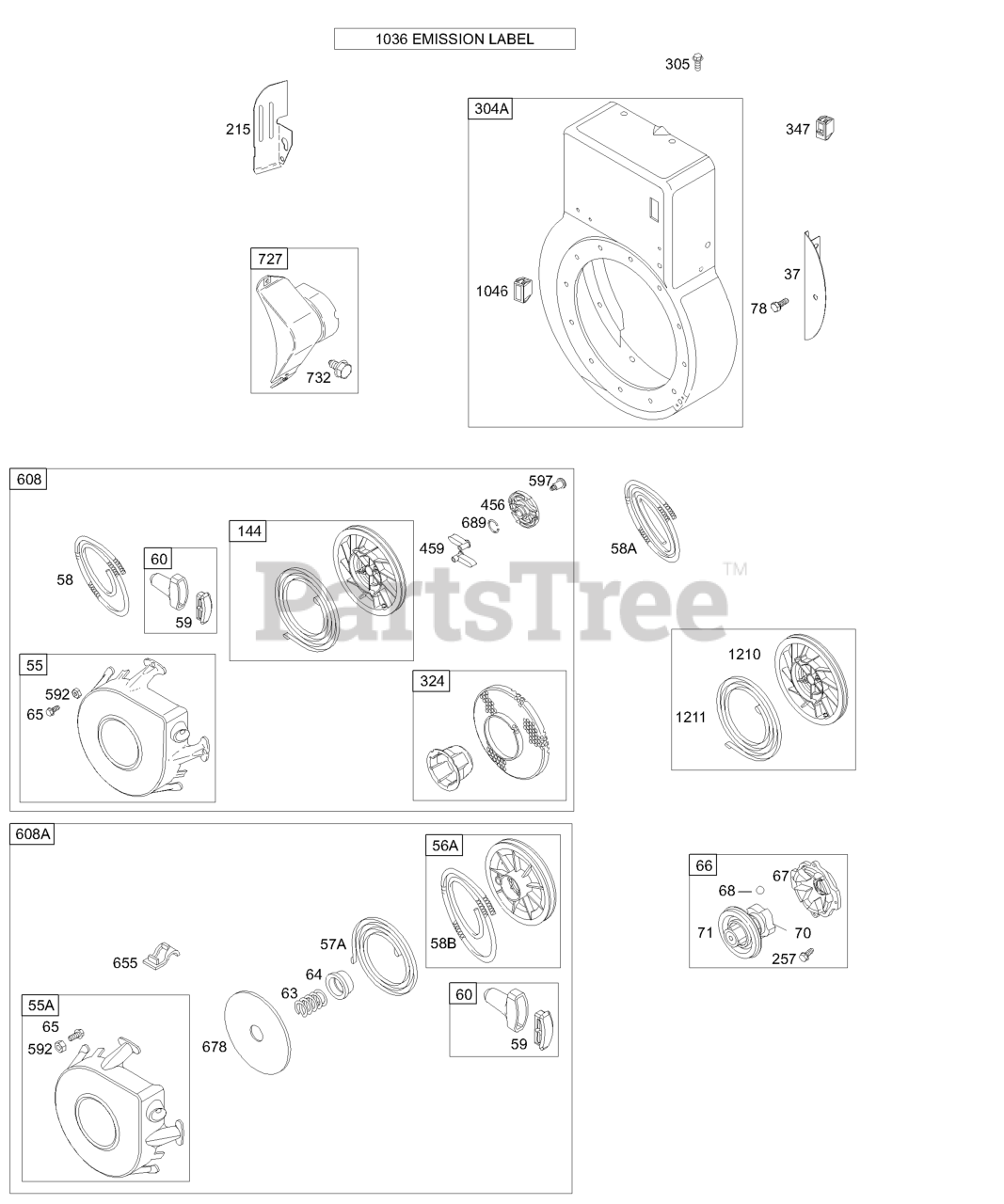

19F412-0136-01 - Briggs & Stratton Horizontal Engine BLOWER HOUSING, REWIND STARTER Parts Diagram

Horizontal Engine

BLOWER HOUSING, REWIND STARTER Parts Diagram

  • Title

37

Briggs & Stratton 690411

Guard-Flywheel

$

$

Not available

55

Briggs & Stratton 693904

Housing-Rewind Starter

Note: Used After Code Date 98111500

$

$

Not available

55A

Briggs & Stratton 393576

Housing-Rewind Starter

Note: Used Before Code Date 98111600

$85.99

$

Usually ships in 2-12 days

0

56A

Briggs & Stratton 295871

Pulley-Starter

Note: Used Before Code Date 98111600

$14.99

$

In Stock, Qty 20+

0

57A

Briggs & Stratton 490179

Spring-Rewind Starter

Note: Used Before Code Date 98111600

$

$

Not available

58

Briggs & Stratton 693389

ROPE, Starter (Cut To Required Length)

Note: (70" Long)

$9.49

$

In Stock, only 2 left!

0

58A

Briggs & Stratton 695002

Rope-Starter

Note: (99" Long)(Cut to Required Length)

$8.49

$

Usually ships in 2-12 days

0

58B

Briggs & Stratton 692188

Rope-Starter

Note: (63" Long)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 490653

Insert-Grip
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 12

0

63

Briggs & Stratton 690547

Spring-Ratchet

Note: Used Before Code Date 98111600

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 691920

Adapter-Ratchet Spring

Note: Used Before Code Date 98111600

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 690837

Screw

Note: (Rewind Starter)

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

Clutch-Starter

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 691604

Ball-Clutch

$

$

Not available

70

Briggs & Stratton 691945

Ratchet-Clutch

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 691359

Cover-Ratchet

$9.99

$

In Stock, Qty 13

0

78

Briggs & Stratton 690364

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, only 2 left!

0

144

Briggs & Stratton 697843

Pulley/Spring Assembly

$27.99

$

In Stock, only 1 left!

0

215

Briggs & Stratton 691170

Guide-Air

$15.99

$

Usually ships in 2-12 days

0

257

Briggs & Stratton 691660

Screw

Note: (Starter Clutch)

$3.99

$

In Stock, Qty 8

0

304A

Briggs & Stratton 497142

Housing-Blower

$

$

Not available

305

Briggs & Stratton 692198

Screw

Note: (Blower Housing)

$5.99

$

In Stock, Qty 11

0

324

Briggs & Stratton 695160

Screen/Cup Assembly

$45.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 495098S

Switch-Rocker

$23.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 13

0

592

Briggs & Stratton 690800

Nut

Note: (Rewind Starter)

$3.99

$

In Stock, Qty 13

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

608

Briggs & Stratton 693900

Starter-Rewind

Note: (70" Long) Used After Code Date 98111500

$131.99

$

In Stock, Qty 9

0

608A

Briggs & Stratton 390391

Starter-Rewind
(Superseded to 693900)

Note: (63" Long) Used Before Code Date 98111600

$131.99

$

In Stock, Qty 9

0

655

Briggs & Stratton 691734

Anchor-Rewind Spring

$4.99

$

Usually ships in 2-12 days

0

678

Briggs & Stratton 490817

Spacer-Rewind

$9.49

$

In Stock, Qty 5

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 2 left!

0

727

Briggs & Stratton 395405

Cover-Starter Drive

$

$

Not available

732

Briggs & Stratton 691097

Screw

Note: (Starter Drive Cover)

$3.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 695696

Label-Emissions

Note: Used After Code Date 00070100 Used Before Code Date 01073100

$3.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 694313

Label-Emissions

Note: Used After Code Date 98123100 Used Before Code Date 99100100

$3.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499354

Label-Emissions

Note: Used Before Code Date 98101100

$4.49

$

In Stock, only 1 left!

0

1036

Briggs & Stratton 696768

Label-Emissions

Note: Used After Code Date 01073000

$12.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 694988

Label-Emissions

Note: Used After Code Date 99093000 Used Before Code Date 00070100

$3.99

$

Usually ships in 2-12 days

0

1046

Briggs & Stratton 691337

Plug-Blower Housing

$6.49

$

Usually ships in 2-12 days

0

1210

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Pulley) Used After Code Date 00082000 Used Before Code Date 01051100

$19.99

$

In Stock, Qty 20+

0

1211

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Spring) Used After Code Date 00082000 Used Before Code Date 01051100

$19.99

$

In Stock, Qty 20+

0
