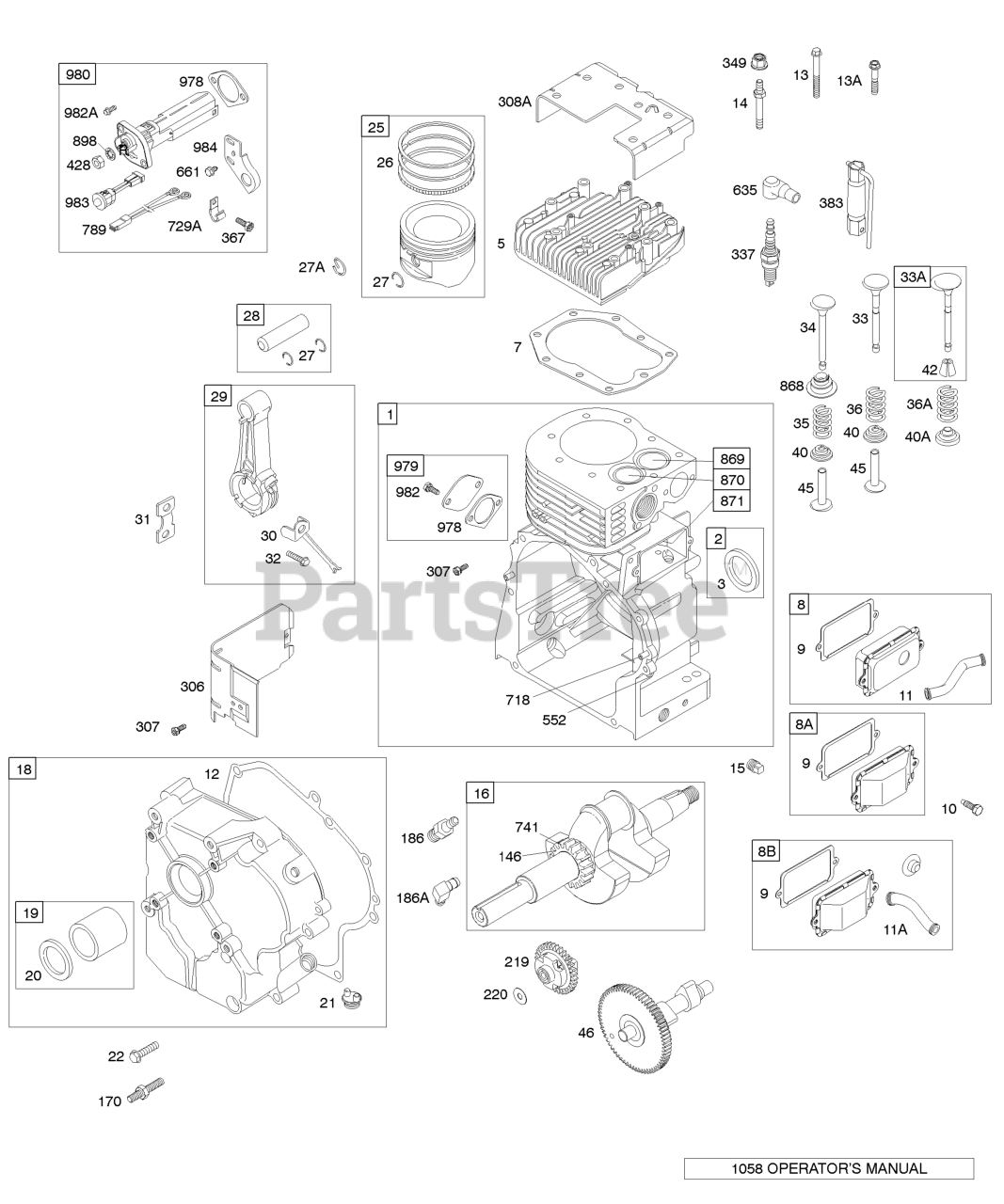

19E416-0108-01 - Briggs & Stratton Horizontal Engine Cam, Crankshaft, Cylinder, Valves, Piston/Rings, Crankcase Cover/Sump, Head, Breather Parts Diagram

Horizontal Engine

Cam, Crankshaft, Cylinder, Valves, Piston/Rings, Crankcase Cover/Sump, Head, Breather Parts Diagram

  • Title

1

Briggs & Stratton 495656

Cylinder Assembly

$316.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 698340

Kit-Bushing/Seal

Note: (Magneto Side)

$22.99

$

In Stock, Qty 5

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 691159

Head-Cylinder

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272163S

Gasket-Cylinder Head

$7.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 498038

Breather Assembly

Note: Used After Code Date 95040200

$60.99

$

Usually ships in 2-12 days

0

8A

Briggs & Stratton 495736

Breather Assembly

Note: Used After Code Date 95010100 Used Before Code Date 95040300

$42.99

$

Usually ships in 2-12 days

0

8B

Briggs & Stratton 497710

Breather Assembly

Note: Used Before Code Date 95010200

$55.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 27803S

Gasket-Breather

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 691666

Screw

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691907

Tube-Breather

Note: Used After Code Date 95040200

$24.99

$

In Stock, only 1 left!

0

11A

Briggs & Stratton 691899

Tube-Breather

Note: Used After Code Date 95010100 Used Before Code Date 95040300

$13.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 27876

Gasket-Crankcase

Note: (.005" Thick)

$

$

Not available

12

Briggs & Stratton 692221

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$8.99

$

In Stock, Qty 9

0

12

Briggs & Stratton 27877

Gasket-Crankcase

Note: (.009" Thick)

$10.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 691651

Screw
(Superseded to 592244)

Note: (Cylinder Head)

$3.49

$

In Stock, Qty 20+

0

13A

Briggs & Stratton 690904

Screw

Note: (Cylinder Head)

$11.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 691690

Stud

Note: (Cylinder Head) (Used In Positions 5 And 6)

$

$

Not available

15

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (Square Head)

$5.99

$

In Stock, Qty 14

0

15

Briggs & Stratton 690289

Plug-Oil Drain

Note: (Magnetic)

$6.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 495790

Crankshaft

$176.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 496984

Cover-Crankcase

$108.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295964

Kit-Bushing/Seal

Note: (PTO Side)

$35.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391086S

SEAL, Oil

Note: (PTO Side)

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 693972

Screw
(Superseded to 691103)

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, only 4 left!

0

22

Briggs & Stratton 691103

Screw

Note: (Crankcase Cover/Sump) (Used In Position 1)

$3.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 499960

Piston Assembly

Note: (Standard)

$140.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499962

Piston Assembly

Note: (.020" Oversize)

$156.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 299743

Ring Set
(Superseded to 690014)

Note: (Standard)(Chrome)

$

$

Not available

26

Briggs & Stratton 690014

Ring Set

Note: (Standard)

$

$

Not available

26

Briggs & Stratton 690016

Ring Set

Note: (.020" Oversize)

$78.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690017

Ring Set

Note: (.030" Oversize)

$68.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690975

LOCK, Piston Pin

Note: Used After Code Date 96102700

$3.99

$

In Stock, Qty 11

0

27A

Briggs & Stratton 691073

Lock-Piston Pin

Note: Used Before Code Date 96102800

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 499302

Pin-Piston

Note: (Standard) Used After Code Date 96102700

$15.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 499303

Pin-Piston

Note: (.005" Oversize) Used After Code Date 96102700

$5.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390401

Rod-Connecting

$

$

Not available

29

Briggs & Stratton 390773

Rod-Connecting

Note: (.020" Undersize)

$103.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 691728

Dipper-Connecting Rod

$8.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222114

Lock-Rod Screw

$

$

Not available

32

Briggs & Stratton 690352

Screw

Note: (Connecting Rod)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 691287

Valve-Exhaust

$

$

Not available

33A

Briggs & Stratton 691794

Valve-Exhaust

Note: Used Before Code Date 95041700

$

$

Not available

34

Briggs & Stratton 261055S

Valve-Intake

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 691605

Spring-Valve

Note: (Intake)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 691605

Spring-Valve

Note: (Exhaust)

$6.99

$

In Stock, only 1 left!

0

36A

Briggs & Stratton 691597

Spring-Valve

Note: (Exhaust) Used Before Code Date 95041700

$10.99

$

In Stock, Qty 5

0

40

Briggs & Stratton 690656

Retainer-Valve

Note: (Exhaust)

$

$

Not available

40A

Briggs & Stratton 691939

Retainer-Valve

Note: (Exhaust) Used Before Code Date 95041700

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

Keeper-Valve

Note: (Exhaust) Used Before Code Date 95041700

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 691793

Tappet-Valve

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 691167

Camshaft

$36.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

170

Briggs & Stratton 691695

Stud

Note: (Crankcase Cover/Sump)

$6.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 691764

Connector-Hose

Note: (Straight)

$14.99

$

In Stock, only 4 left!

0

186A

Briggs & Stratton 691609

Connector-Hose

Note: (90 Degree)

$7.49

$

In Stock, Qty 7

0

219

Briggs & Stratton 496786

Gear-Governor

$32.99

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 691724

Washer

Note: (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

306

Briggs & Stratton 496797

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

308A

Briggs & Stratton 691212

Cover-Cylinder Head

$12.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 496018S

Plug-Spark

$4.49

$

In Stock, Qty 20+

0

349

Briggs & Stratton 691105

Nut

Note: (Cylinder Head Cover)

$7.99

$

In Stock, only 1 left!

0

367

Briggs & Stratton 691058

Screw

Note: (Wire Clip)

$5.99

$

In Stock, Qty 11

0

383

Briggs & Stratton 89838S

Wrench-Spark Plug

$6.49

$

In Stock, only 4 left!

0

428

Briggs & Stratton 691612

NUT

Note: (Oil GARD Kit)

$3.49

$

In Stock, only 1 left!

0

552

Briggs & Stratton 491986

Bushing-Governor Crank

$

$

Not available

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 12

0

661

Briggs & Stratton 690661

SCREW

Note: (Oil Gard Light Bracket)

$3.49

$

In Stock, Qty 9

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

729A

Briggs & Stratton 690430

Clip-Wire

$4.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 691288

GEAR, Timing

$21.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 398661

Harness-Wiring

$34.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 692036

Seal-Valve
(Superseded to 692324)

$

$

Not available

869

Briggs & Stratton 691844

Seat-Valve

Note: (Intake)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 691844

Seat-Valve

Note: (Exhaust)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Bushing-Valve Guide

Note: (Intake)

$14.99

$

In Stock, Qty 7

0

871

Briggs & Stratton 261961

Bushing-Valve Guide

Note: (Exhaust)

$14.99

$

Usually ships in 2-12 days

0

898

Briggs & Stratton 691077

Washer

Note: (Oil GARD Kit

$3.49

$

In Stock, only 2 left!

0

978

Briggs & Stratton 273326S

Gasket-Oil Gard

$7.49

$

Usually ships in 2-12 days

0

979

Briggs & Stratton 691382

Cover-OIL GARD

$4.99

$

Usually ships in 2-12 days

0

980

Briggs & Stratton 398182

Kit-Oil Gard

$102.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 690351

SCREW

Note: (Oil GARD) (Oil GARD Cover)

$3.99

$

In Stock, only 2 left!

0

982A

Briggs & Stratton 690350

Screw

Note: (Oil GARD) (Oil GARD Kit)

$3.99

$

Usually ships in 2-12 days

0

983

Briggs & Stratton 398660

Light-Indicator

$

$

Not available

984

Briggs & Stratton 692340

Bracket-Oil Gard Light

$5.49

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 274786

Operator's Manual

$6.49

$

Usually ships in 2-12 days

0
