19E412-1069-E1 - Briggs & Stratton Horizontal Engine Carburetor, Carburetor Overhaul Kits Parts Diagram

Horizontal Engine

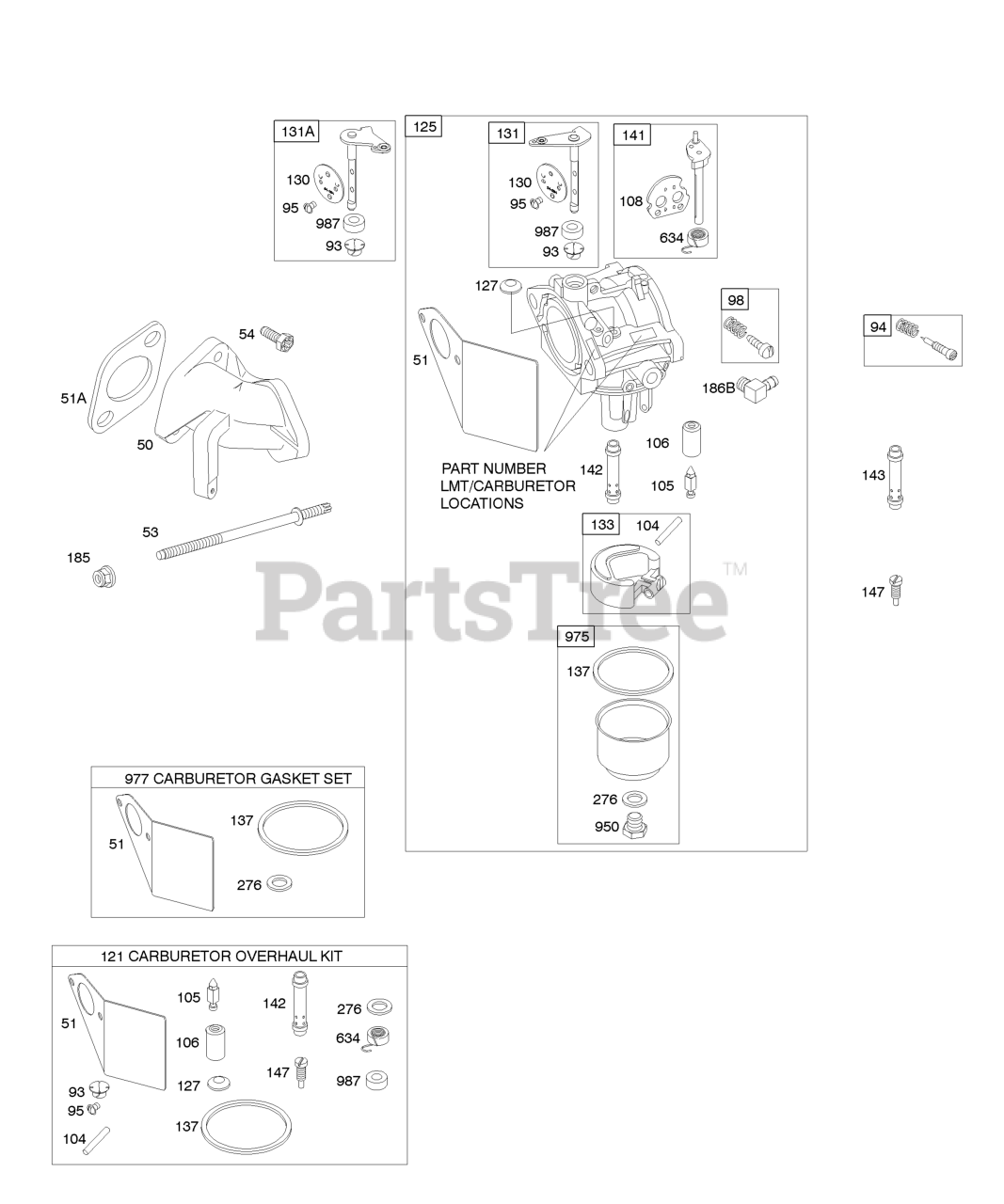

Carburetor, Carburetor Overhaul Kits Parts Diagram

  • Title

50

Briggs & Stratton 691157

Manifold-Intake

$

$

Not available

51

Briggs & Stratton 691886

Gasket-Intake

Note: (Manifold To Carburetor)

$

$

Not available

51A

Briggs & Stratton 691885

Gasket-Intake

Note: (Manifold To Engine)

$4.99

$

In Stock, Qty 7

0

53

Briggs & Stratton 691672

Stud

Note: (Carburetor)

$

$

Not available

54

Briggs & Stratton 690953

Screw

Note: (Intake Manifold)

$5.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 494383

Kit-Idle Mixture

Note: (LMT 102, 113, 114, 116)

$13.99

$

In Stock, only 1 left!

0

94

Briggs & Stratton 496589

Kit-Idle Mixture

Note: (LMT 172)

$12.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498836

Kit-Idle Mixture

Note: (LMT 141)

$18.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Kit-Idle Speed

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Float Hinge

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 691782

Valve-Float Needle

$18.99

$

In Stock, Qty 7

0

106

Briggs & Stratton 691780

Seat-Inlet

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 690467

Valve-Choke

$5.49

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 497166

Kit-Carburetor Overhaul

Note: Used Before Code Date 94062400

$71.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 497849

Kit-Carburetor Overhaul

Note: Used After Code Date 94062300

$

$

Not available

125

Briggs & Stratton 690115

Carburetor

Note: (LMT 186)

$

$

Not available

125

Briggs & Stratton 499029

Carburetor

Note: (LMT 116, 141, 172)

$

$

Not available

125

Briggs & Stratton 497164

Carburetor

Note: (LMT 102, 113, 114) Used Before Code Date 94090100

$192.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694524

Plug-Welch

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691750

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 497846

Kit-Throttle Shaft

$36.99

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 497159

Kit-Throttle Shaft

Note: Used Before Code Date 94090100

$21.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

$4.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 497160

Kit-Choke Shaft

$15.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497564

Nozzle-Carburetor

Note: (LMT 113, 114, 116)

$29.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 498716

Nozzle-Carburetor

Note: (LMT 141)

$23.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 690128

Nozzle-Carburetor

Note: (LMT 186)

$30.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 691477

Nozzle-Carburetor

Note: (LMT 172)

$29.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497197

Nozzle-Carburetor

Note: (LMT 102)

$24.99

$

Usually ships in 2-12 days

0

143

Briggs & Stratton 497848

Nozzle-Carburetor

Note: (High Altitude) (LMT 113, 114, 116)

$30.99

$

Usually ships in 2-12 days

0

143

Briggs & Stratton 499032

Nozzle-Carburetor

Note: (High Altitude) (LMT 141)

$30.99

$

Usually ships in 2-12 days

0

143

Briggs & Stratton 499826

Nozzle-Carburetor

Note: (High Altitude) (LMT 172)

$24.99

$

Usually ships in 2-12 days

0

143

Briggs & Stratton 690129

Nozzle-Carburetor

Note: (High Altitude) (LMT 186)

$24.99

$

Usually ships in 2-12 days

0

143

Briggs & Stratton 497198

Nozzle-Carburetor

Note: (High Altitude) (LMT 102)

$23.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497472

Jet-Pilot

Note: (LMT 102, 113, 114, 116)

$22.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 691259

Jet-Pilot

Note: (LMT 141)

$8.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 690958

NUT

Note: (Air Cleaner Base)

$3.49

$

In Stock, only 3 left!

0

186B

Briggs & Stratton 692317

Connector-Hose

Note: (Carburetor)

$6.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

$5.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 690802

Spring/Seal Assembly

$9.49

$

Usually ships in 2-12 days

0

950

Briggs & Stratton 691657

Screw-Float Bowl

$7.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Bowl-Float

$

$

Not available

977

Briggs & Stratton 497069

Gasket Set-Carburetor
(Superseded to 497849)

$

$

Not available

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.49

$

Usually ships in 2-12 days

0
