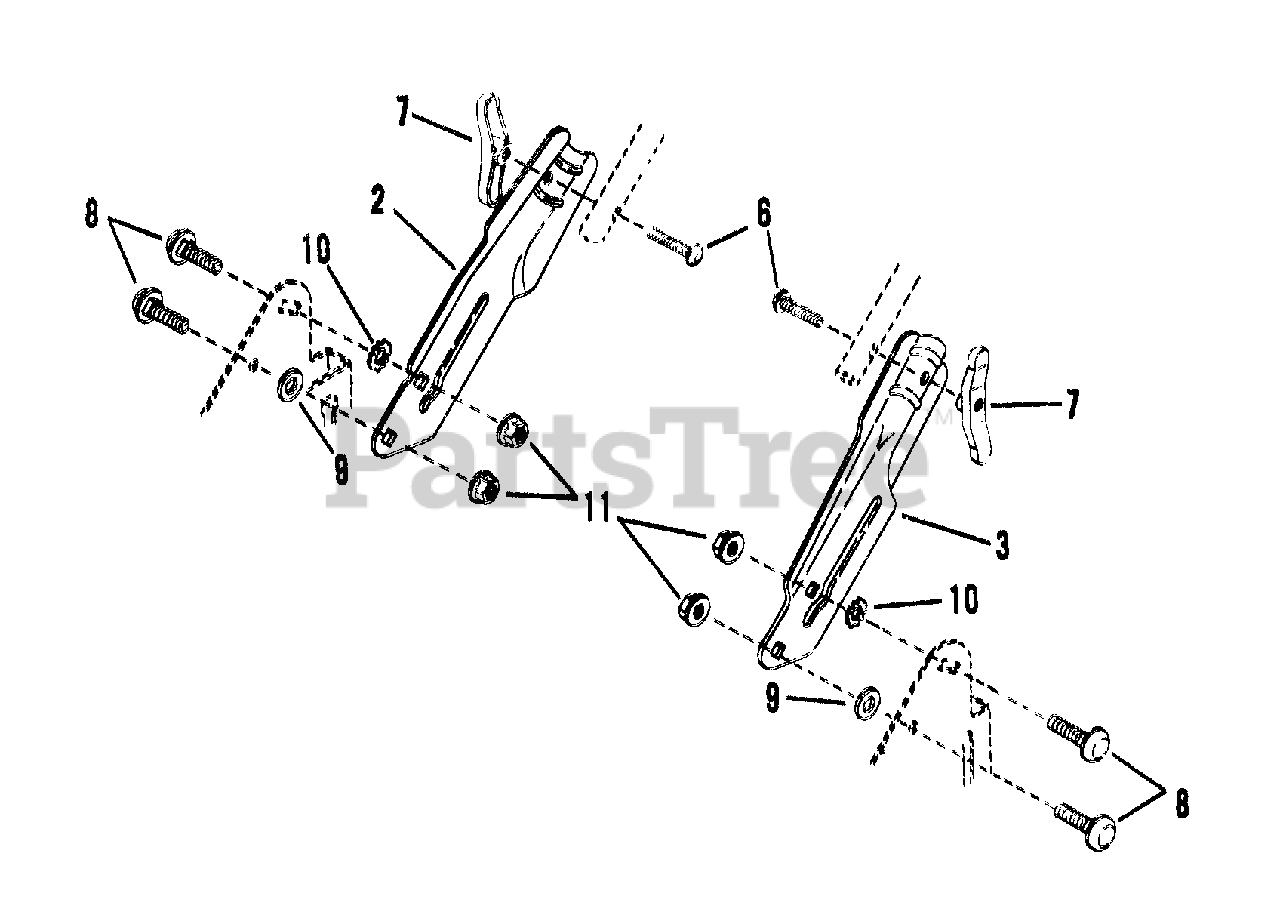

19E03 (83546) - Snapper 19" Walk-Behind Mower, 3hp Lower Handles '87 Model Year Parts Diagram

19" Walk-Behind Mower, 3hp

Lower Handles '87 Model Year Parts Diagram

  • Title
2

Snapper 7038246

HANDLE, Lower R. H.
(Superseded to 7038246YP)

Note: (19E03) ('87 Model Year)

$25.99

$

Usually ships in 2-12 days

0

3

Snapper 7038247

HANDLE, Lower L. H.
(Superseded to 7038247YP)

Note: (19E03) ('87 Model Year)

$33.99

$

Usually ships in 2-12 days

0

6

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Short Neck Carriage
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7015693

NUT, 1/4-20 Wing
(Superseded to 014X79MA)

Note: Was 14207

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7090189

WASHER, 5/16 Internal-External Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

11

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0
