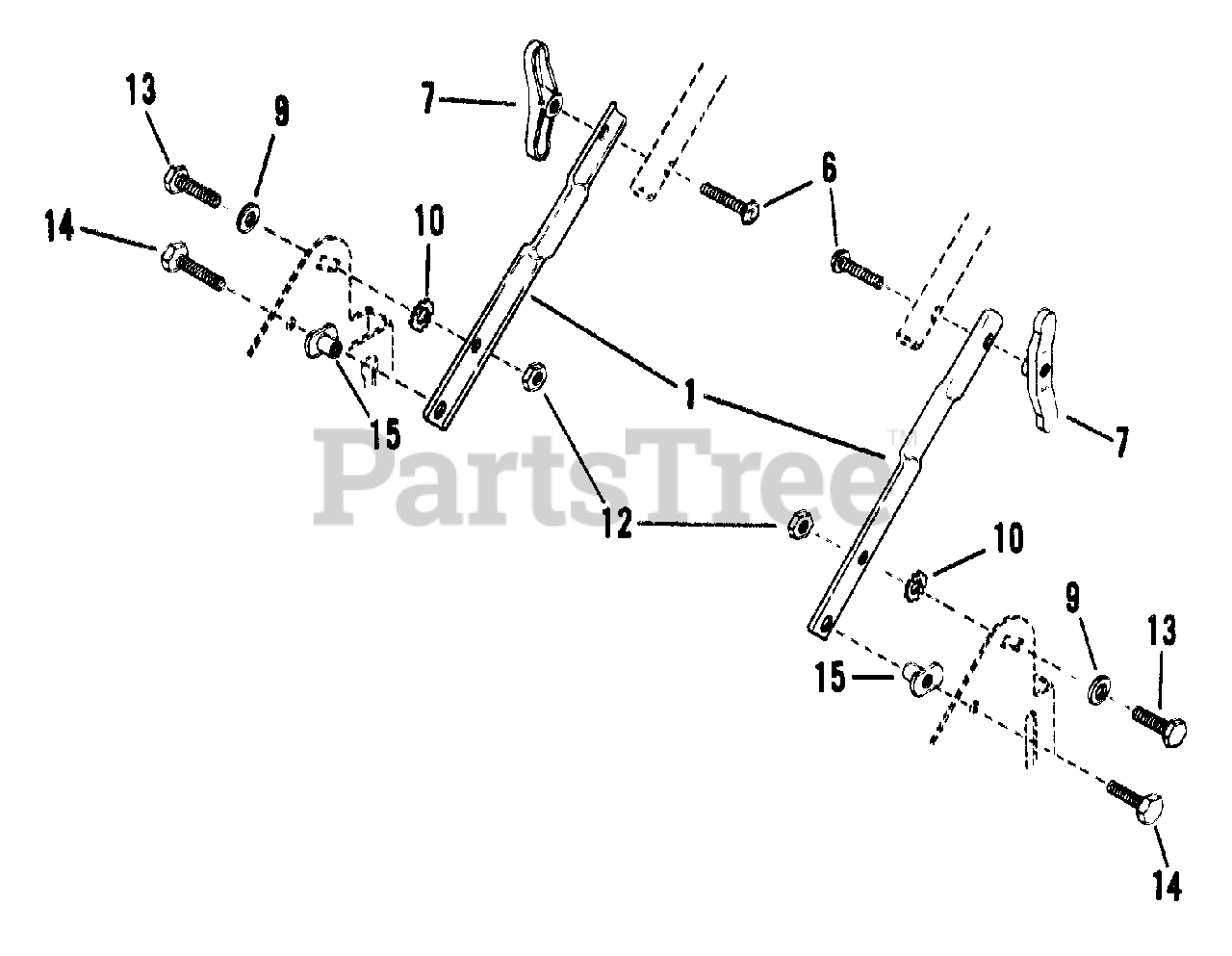

19E03 (83546) - Snapper 19" Walk-Behind Mower, 3hp Lower Handles '86 Model Year Parts Diagram

19" Walk-Behind Mower, 3hp

Lower Handles '86 Model Year Parts Diagram

  • Title
1

Snapper 7038209

HANDLE, Lower

Note: (19E03) ('86 Model Year)

$

$

Not available

6

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Short Neck Carriage
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7015693

NUT, 1/4-20 Wing
(Superseded to 014X79MA)

Note: Was 14207

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7090189

WASHER, 5/16 Internal-External Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

12

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Cap
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

14

Snapper 7090534

SCREW,5/16-18 x 1/2" Hex Cap
(Superseded to 704317)

Note: Was 90203

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7090388

T-NUT, 5/16-18
(Superseded to 7090388YP)

$3.49

$

In Stock, only 2 left!

0
