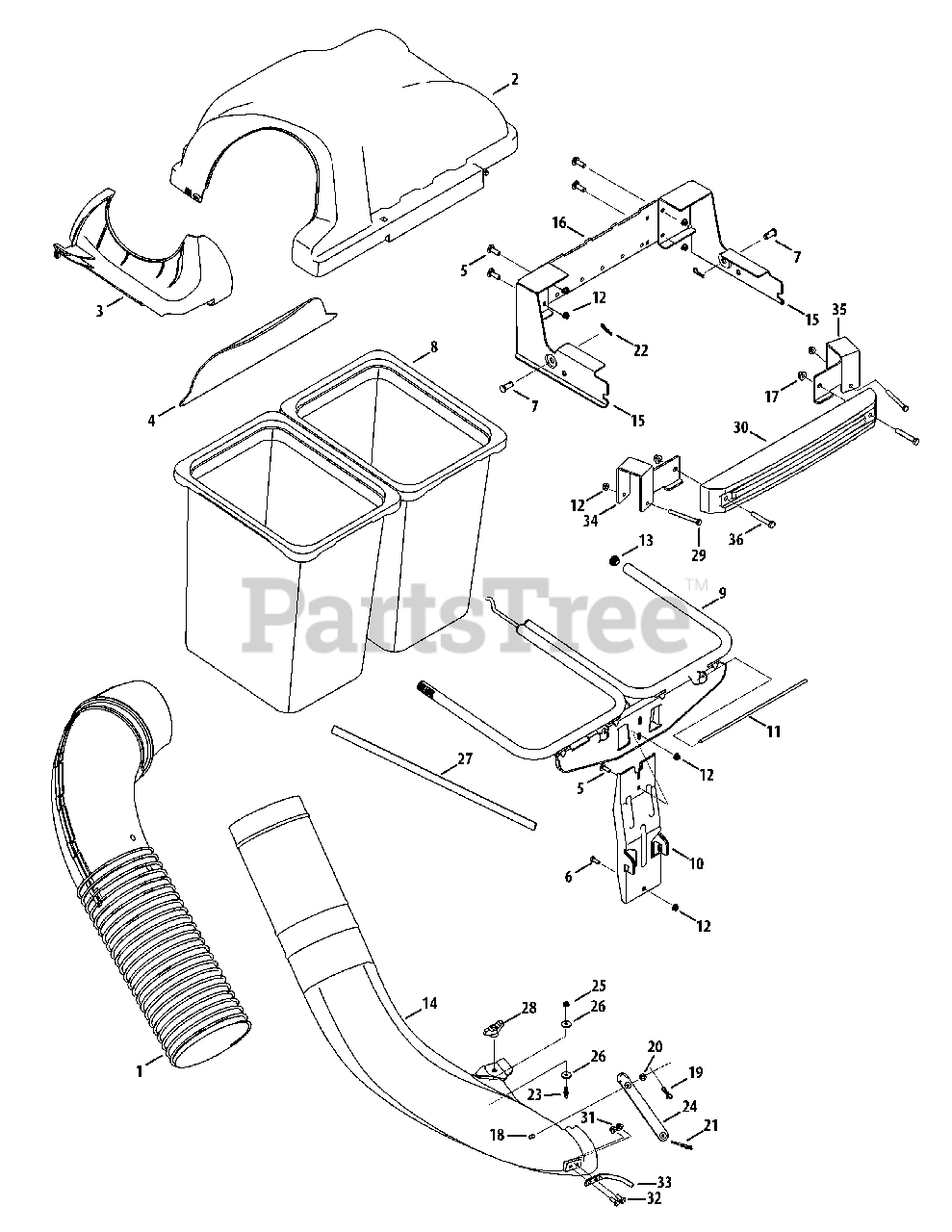

19C70020 (19C70020100) - Cub Cadet Twin Rear Bagger att2 General Assembly Parts Diagram

Twin Rear Bagger

General Assembly Parts Diagram

  • Title

1

Cub Cadet 903-05204

Upper Chute Assembly

$212.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 931-04292

Twin Bagger Cover Assembly

$147.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-06497

Upper Chute Support

$36.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-06504

Bagger Cover Screen

$17.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 14

0

6

Cub Cadet 710-0376

Hex Head Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, only 4 left!

0

7

Cub Cadet 911-0310

Clevis Pin, .50" Dia. x 1.18
(Superseded to 711-0310)

$

$

Not available

8

Cub Cadet 964-04090A

Grass-bag Assembly

$95.99

$

In Stock, Qty 20+

0

9

Cub Cadet 683-04461A-0637

Twin Bag Support Assembly
(Superseded to 683-04461B-0637)

$207.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 683-04519B-0637

Vertical Support Bracket

$143.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-04988

Cover Hinge Pin

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 735-0246A

End Plug

$5.99

$

In Stock, only 1 left!

0

14

Cub Cadet 731-09329A

Discharge Chute Elbow

$121.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 689-00204A

RZT Hitch Bracket Kit

Note: (Incl. Ref. 15, 16, 34 & 35)

$191.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 783-06168-0637

Universal Cross Bracket

$140.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 711-05063

Clevis Pin 5/16 x 3/4

$3.99

$

In Stock, only 4 left!

0

19

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 8

0

21

Cub Cadet 732-04510A

Torsion Spring Hook

$4.99

$

In Stock, Qty 11

0

22

Cub Cadet 914-04023

Cotter Pin, .080 x 1.5625 Internal
(Superseded to 714-04023)

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet 711-05049

Grass-catcher Pin

$8.99

$

In Stock, only 1 left!

0

24

Cub Cadet 723-04008A

Chute Strap

$9.99

$

In Stock, Qty 20+

0

25

Cub Cadet 912-3027

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 936-0176

Flat Washer
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 6

0

27

Cub Cadet 721-04388

Foam Strip

$7.49

$

In Stock, Qty 10

0

28

Cub Cadet 720-04122

Wing Knob,

$6.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3056

Hex Head Screw, 5/16-18 x 3.25

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 719-04271A

RZT Bagger Weight

$252.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 712-04064

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 738-05040

Screw 1/4-20 x .750

$5.49

$

In Stock, only 1 left!

0

33

Cub Cadet 747-06043

Rod, Lower Chute

$8.49

$

In Stock, Qty 7

0

34

Cub Cadet 703-09193-0637

Wt. Mount Bracket, RH

$42.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 703-09197-0637

Wt. Mount Bracket, LH

$42.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-0859

Hex Head Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16
