19C432-0056-01 - Briggs & Stratton Horizontal Engine Carburetor Assy Parts Diagram

Horizontal Engine

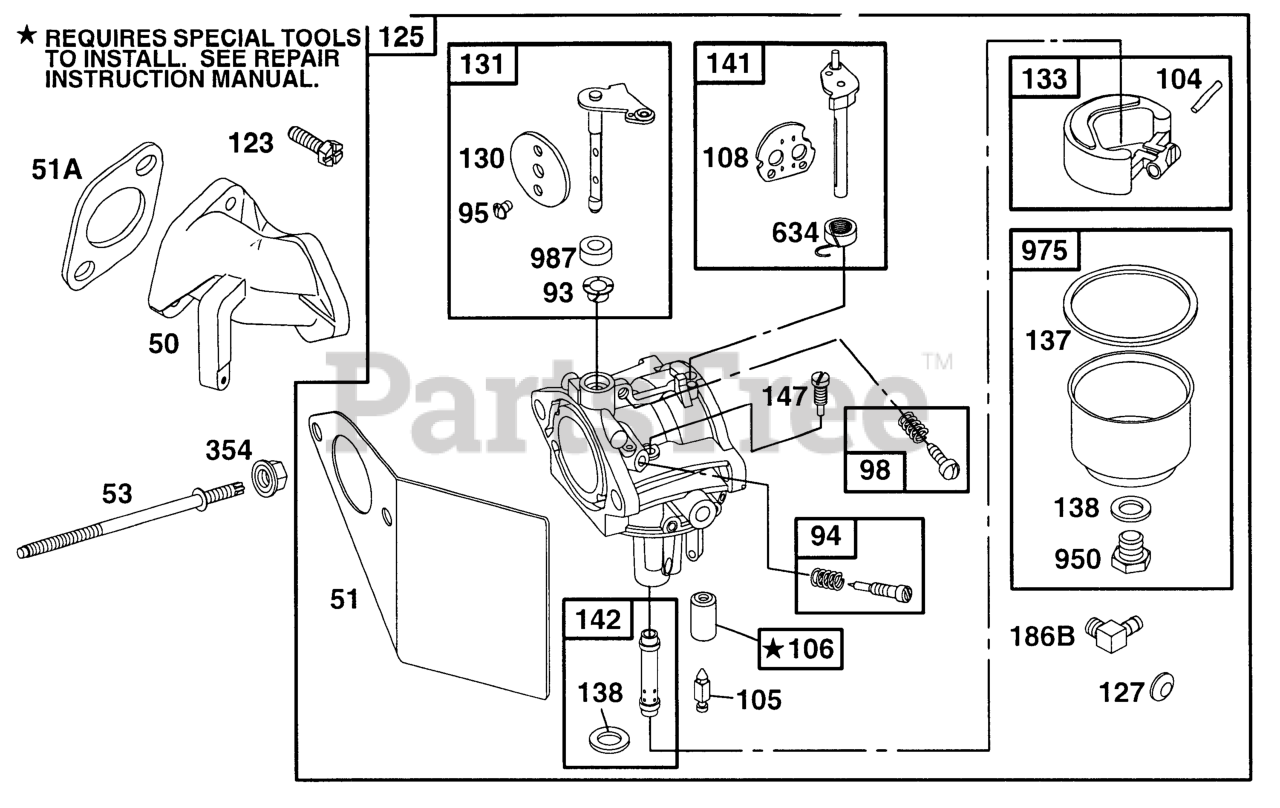

Carburetor Assy Parts Diagram

  • Title

50

Briggs & Stratton 214170

Manifold-Intake
(Superseded to 691157)

$

$

Not available

51A

Briggs & Stratton 272708

Gasket-Intake
(Superseded to 691886)

Note: Included in Gasket Set-Part No. 497070.

$

$

Not available

51

Briggs & Stratton 272707

Gasket-Intake
(Superseded to 691885)

Note: Included in Carburetor Kit-Part No. 497578. Included in Carburetor Gasket Set-Part No. 497069.

$4.99

$

In Stock, Qty 7

0

53

Briggs & Stratton 94778

Stud, Collar
(Superseded to 691672)

$

$

Not available

93

Briggs & Stratton 281346

Bushing-Throttle Shaft
(Superseded to 690602)

Note: Included in Carburetor Kit-Part No. 497578.

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 494383

Kit-Idle Mixture (Lmt 71,101,102,113,114,116)

$13.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 94098

Screw, Round Washer
(Superseded to 691636)

Note: Included in Carburetor Kit-Part No. 497578.

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Screw-Idle Speed (Lmt 54, 55, 91)

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

Pin-Float Hinge
(Superseded to 690525)

Note: Included in Carburetor Kit-Part No. 497578.

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231935

Valve-Needle
(Superseded to 691782)

Note: Included in Carburetor Kit-Part No. 497578.

$18.99

$

In Stock, Qty 7

0

106

Briggs & Stratton 231856

Seat, Inlet (Pump Feed)
(Superseded to 691780)

Note: Included in Carburetor Kit-Part No. 497578.

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 224540

Valve, Choke (Choke-A-Matic)
(Superseded to 692344)

$8.49

$

Usually ships in 2-12 days

0

123

Briggs & Stratton 94913

Screw, Hex Head Tor
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 497581

Carburetor (Lmt 115,171)

$

$

Not available

127

No Nomenclature

Note: Included in Carburetor Kit-Part No. 497578.

$

$

Not available

130

Briggs & Stratton 224668

Valve-Throttle
(Superseded to 690468)

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 497579

Throttle Shaft Kit
(Superseded to 693602)

$36.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Float Bowl
(Superseded to 281165S)

Note: Included in Carburetor Kit-Part No. 497578. Included in Carburetor Gasket Set-Part No. 497069.

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer-Seal
(Superseded to 692255)

Note: Included in Carburetor Kit-Part No. 497578. Included in Carburetor Gasket Set-Part No. 497069.

$5.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 497043

Shaft-Choke

$14.99

$

In Stock, only 2 left!

0

142

Briggs & Stratton 497040

Nozzle-Carburetor (High Altitude, Lmt 69, 103, 115)

$27.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 499042

Nozzle-Carburetor

Note: Included in Carburetor Kit-Part No. 497578.

$

$

Not available

142

Briggs & Stratton 499094

Nozzle-Carburetor (Std, Lmt 171)

$18.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497472

Jet-Pilot

Note: Included in Carburetor Kit-Part No. 497578. (LMT 1,2,3,4,5,7,33,34,37,38,39,40,41,63, 65, 66,77,78,79,80,81,89,97,98,100,101,102,103,113,114,115,116,117,119)

$22.99

$

Usually ships in 2-12 days

0

186B

Briggs & Stratton 493496

Connector-Hose
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

354

Briggs & Stratton 94010

Nut, Hex
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

634

Briggs & Stratton 281168

Seal-Choke Shaft
(Superseded to 690597)

Note: Included in Carburetor Kit-Part No. 497578.

$6.49

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 494455

Spring & Seal Assem (Choke-A-Matic)
(Superseded to 690802)

$9.49

$

Usually ships in 2-12 days

0

950

Briggs & Stratton 94642

Screw, Hex Head
(Superseded to 691657)

$7.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Screw-Bowl Mounting

$

$

Not available

987

Briggs & Stratton 281166

Seal-Throttle Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-Part No. 497578.

$5.49

$

Usually ships in 2-12 days

0
