19B70039 (19B70039100) - Cub Cadet 60" Xtreme Fab Mulch Kit (2021) General Assembly Parts Diagram

60" Xtreme Fab Mulch Kit

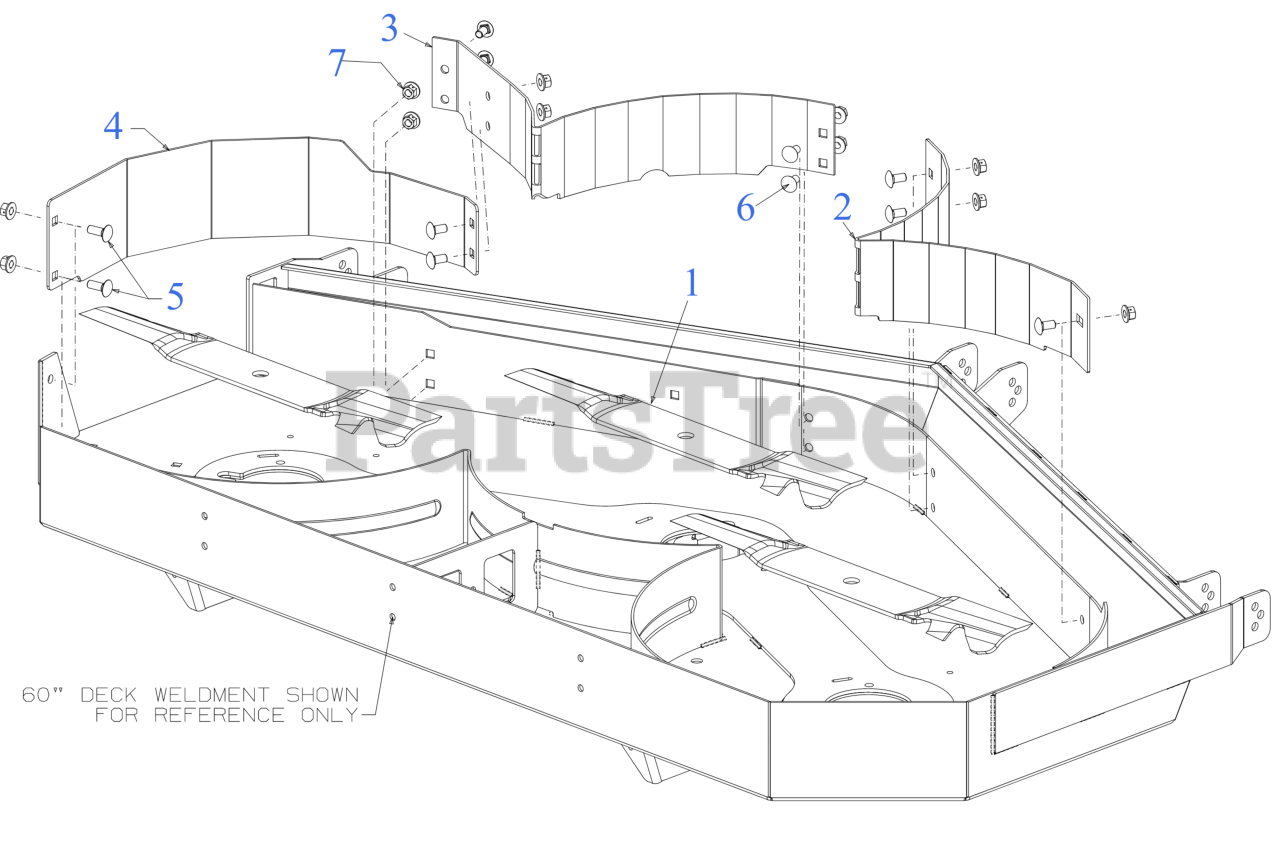

General Assembly Parts Diagram

  • Title
1

Cub Cadet 01005381P-X

21" XTREME BLADE

$43.99

$

In Stock, only 3 left!

0

2

Cub Cadet 703-07177A-0637

MULCH BAFFLE (LEFT)

$131.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-07178-0637

MULCH BAFFLE (CENTER)
(Superseded to 703-07178A-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

$99.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09531A

60" DISCHARGE BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09531A-0637

BAFFLE-DISCHRG MULCH - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-05007

NUT-CTRLCK FLG HEX

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 19B70039100

60" FAB XTREME MULCH KIT

$263.99

$

Usually ships in 3-6 days

0
