19B70032 (19B70032100) - Cub Cadet Zero-Turn Light Kit General Assembly Parts Diagram

Zero-Turn Light Kit

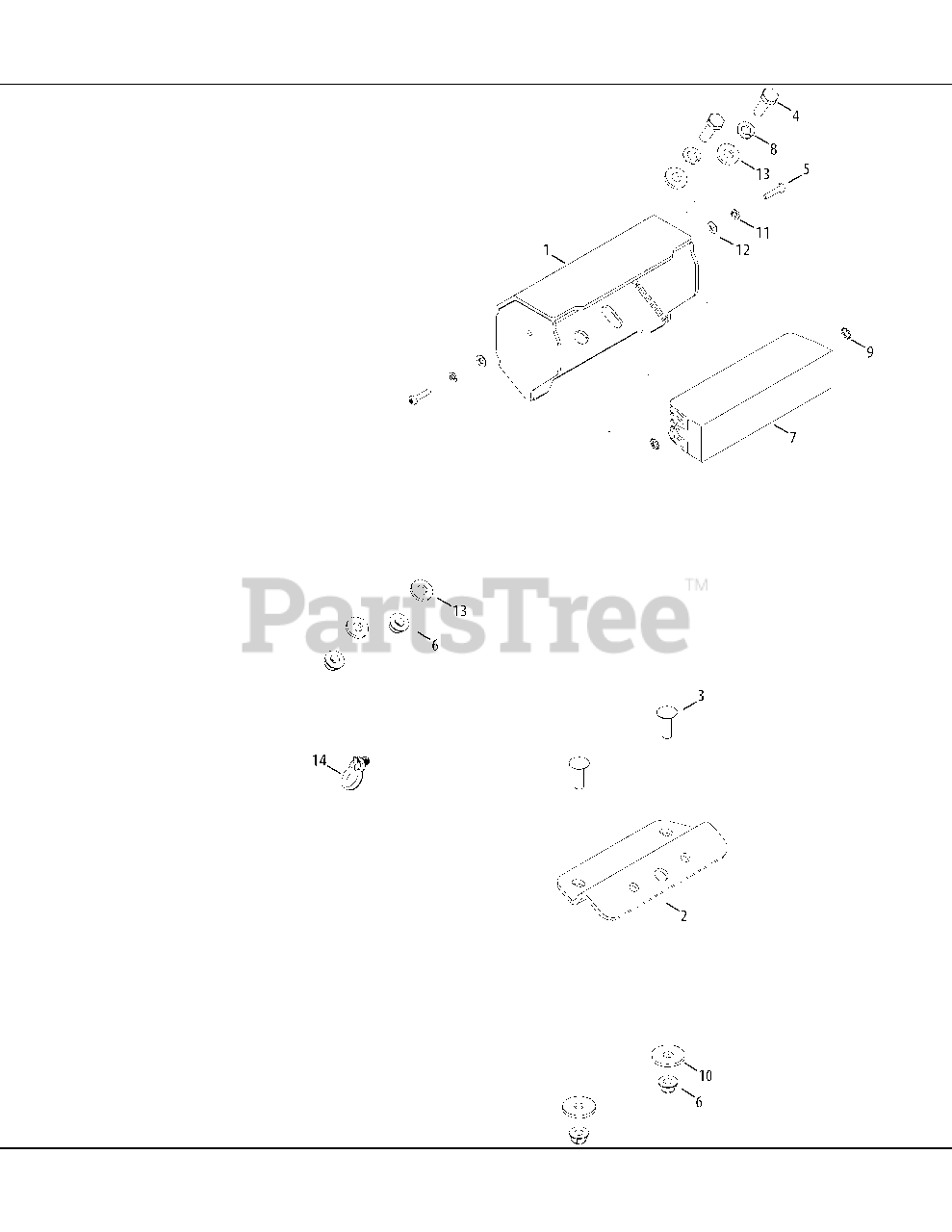

General Assembly Parts Diagram

  • Title

1

Cub Cadet 603-05077-0637

Headlight Bracket

$69.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09867-0637

Headlight Mounting Bracket

$35.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04879

Machine Screw, #8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 925-06054

Headlight Assembly

$137.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 936-0147

External Tooth Lock Washer, #10

$3.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 936-0231

Flat Washer, .344 x 1.125 x .120
(Superseded to 736-0231)

$

$

Not available

11

Cub Cadet 936-0722

Lock Washer, #10
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0931

Flat Washer, .203 x .403 x .040

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 726-0470

Cable Tie, 19 x 8.39

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-06069A

Headlight Harness

Note: (not shown)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-06070A

Headlight Adapter Harness

Note: (not shown)

$19.99

$

Usually ships in 3-6 days

0
