19B70028OEM - Troy-Bilt 52" Snow Blade General Assembly Parts Diagram

52" Snow Blade

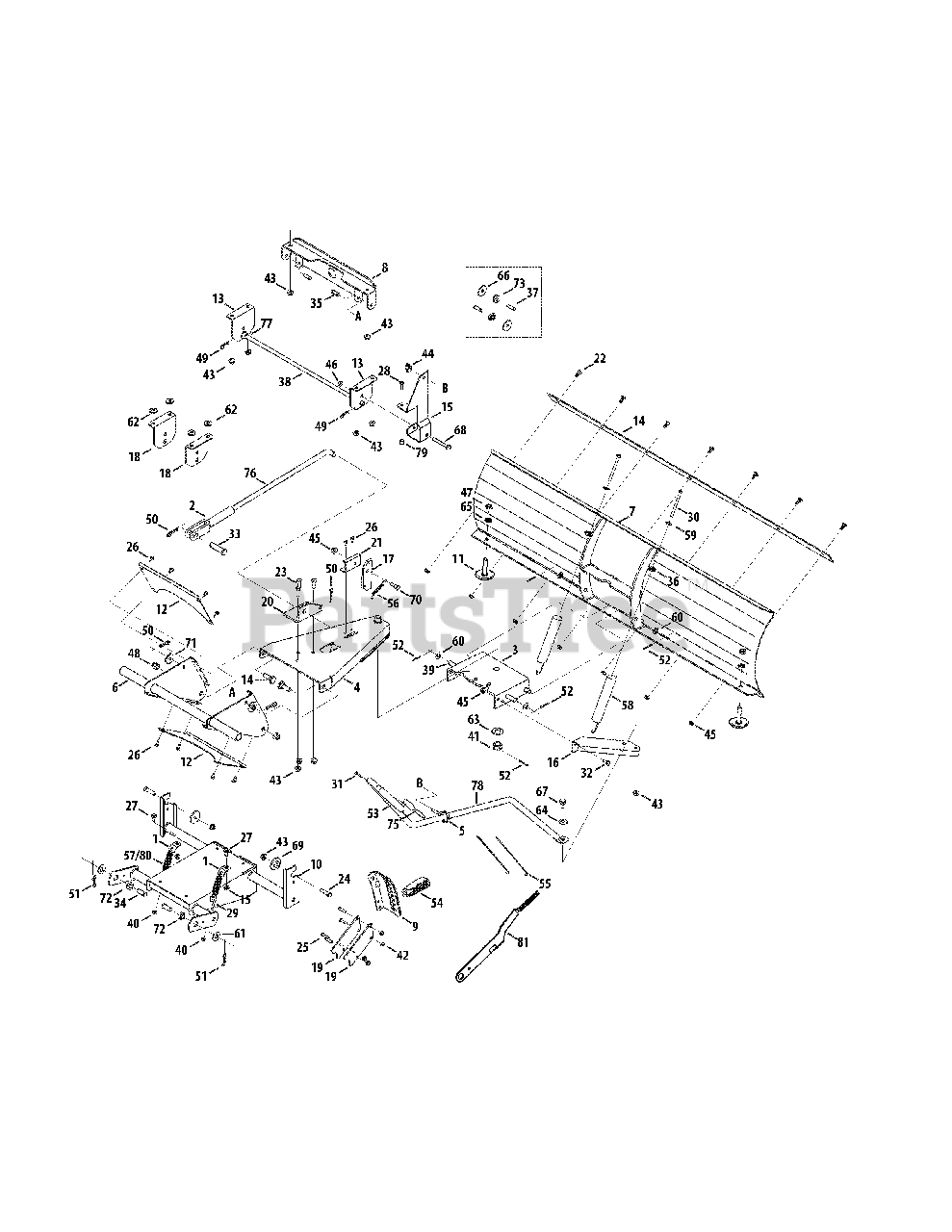

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 02004195

Spring Mount Bracket

$31.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 10991-0637

Clevis Adjustment Assembly

$137.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 603-0266-0637

Blade Pivot Assembly

$144.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 603-0267A-0637

Blade Frame Assembly

$354.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 603-0297

Eyebolt Assembly

$14.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 603-04963-0637

Bracket Assembly

$197.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 603-04969-0637

52" Blade Assembly

$682.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 603-05003A-0637

Blade Mount Bracket Assembly

$128.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 603-05018B

Blade Height Adj. Index Bracket

$55.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 603-05153-0637

Lift Bracket Assembly

$325.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 703-0650

Skid Shoe Assembly

Variations

Troy-Bilt 703-0650-0637

Snow Skid Shoe - POWDER BLACK (0637)

$47.99

$

In Stock, Qty 8

0

$47.99

$

In Stock, Qty 8

0

12

Troy-Bilt 703-08843-0637

Cover Brace

$39.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 703-08844-0637

Mounting Bracket

$24.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 703-08866-0637

52" Blade Scraper Plate

$144.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 703-08868A-0637

Handle Mount Bracket

$61.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 603-05171-0637

RH Blade Adjustment Arm

$69.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 703-09000A

Blade Lock Plate

$42.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 703-09133-0637

Mount Bracket

$26.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 703-09157-0637

Lift Arm Stiffener Bracket

$21.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 703-2679-0637

Front Lift Bracket

$22.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 703-2693-0637

Pivot Bracket

$19.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 710-0520

Hex Screw, 3/8-16 x 1.50

$4.49

$

In Stock, Qty 5

0

25

Troy-Bilt 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 13

0

26

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 710-0650

Hex Washer Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 710-0788

Hex Washer Screw, 1/4-20 x 1.000

$7.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 710-1205

Eye Bolt, 1/4-20

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 710-1207

Hex Screw, 5/16-18 x 3.50

$6.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 710-1233

Machine Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

32

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 711-0299

Clevis Pin, .625 x 2.40

$36.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 711-04061

Clevis Pin, .500 x 1.25

$4.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 711-04722

Clevis Pin, .375 x .969

$6.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 711-0509

Spring Insert

$60.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 711-05735

Clevis Pin, 3/8 x 1.123

$12.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 711-05748

Rod, .50 x 22.65

$94.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 711-3402A

Rod, .50 x 10.428

$37.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 712-0271

Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

41

Troy-Bilt 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 712-0421

Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 912-3020

Jam Lock Nut, 3/8-16

$6.49

$

In Stock, Qty 10

0

47

Troy-Bilt 912-3048

Jam Nut, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 714-0147

Cotter Pin, .125 x 1.75

$4.99

$

In Stock, Qty 6

0

51

Troy-Bilt 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 12

0

52

Troy-Bilt 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 720-0283

Foam Grip

$8.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 720-04139B

Grip, .50

$18.99

$

In Stock, Qty 10

0

55

Troy-Bilt 725-0157

Cable Tie, 3/16 x 7.4

$3.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 932-0320

Extension Spring, .38 x 3.25

$10.99

$

In Stock, Qty 6

0

57

Troy-Bilt 732-05034

Extension Spring, .99 x 3.50

$14.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 732-3123

Extension Spring, 1.25 x 6.7

$28.99

$

In Stock, only 4 left!

0

59

Troy-Bilt 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

60

Troy-Bilt 936-0160

Flat Washer, .530 x .930 x .050

$4.49

$

In Stock, only 1 left!

0

61

Troy-Bilt 936-0179

Flat Washer, .531 x 1.250 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

62

Troy-Bilt 736-0258

Flat Washer, .385 x 1.000 x .135

$4.49

$

In Stock, only 4 left!

0

63

Troy-Bilt 736-0315

Flat Washer, .760 x 1.500 x .120

$6.99

$

In Stock, Qty 6

0

64

Troy-Bilt 936-0414

Flat Washer, .570 x 1.120 x .062
(Superseded to 736-0414)

$

$

Not available

65

Troy-Bilt 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

66

Troy-Bilt 936-3039

Flat Washer, .406 x 1.500 x .105
(Superseded to 736-3039)

$

$

Not available

67

Troy-Bilt 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

68

Troy-Bilt 738-04128

Shoulder Bolt, 3/8-16 x .500 x 2.38

$7.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 738-04162C

Shoulder Spacer, .8840 x .190

$13.99

$

In Stock, Qty 20+

0

70

Troy-Bilt 738-04320

Shoulder Screw, 5/16-18 x .405 x .435

$5.49

$

In Stock, only 2 left!

0

71

Troy-Bilt 738-04420

Shoulder Spacer, 1.375 x .380 x .183

$6.99

$

In Stock, only 3 left!

0

72

Troy-Bilt 738-05086

Shoulder Spacer, .50 x .75 x .170

$27.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 738-05087

Shoulder Spacer, .375 x .75 x .170

$25.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 938-0744A

Shoulder Screw, 1/2-13 x .625 x .36

$11.99

$

In Stock, only 4 left!

0

75

Troy-Bilt 946-3059B

Blade Release Cable

$56.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 747-05715

Lift Rod

$53.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 948-0108

Flange Bearing, .503 x .75

$8.99

$

In Stock, Qty 20+

0

78

Troy-Bilt 749-04953A-0637

Blade Adjust Handle

$138.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 950-04143

Spacer, .258 x .50 x .50

$6.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 732-05221

Extension Spring, 1.4 x 3.5 x .200

$27.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 603-05170

Lift Handle

$78.99

$

Usually ships in 3-6 days

0
