19B70004OEM - Troy-Bilt Twin Rear Bagger (2013) General Assembly Parts Diagram

Twin Rear Bagger

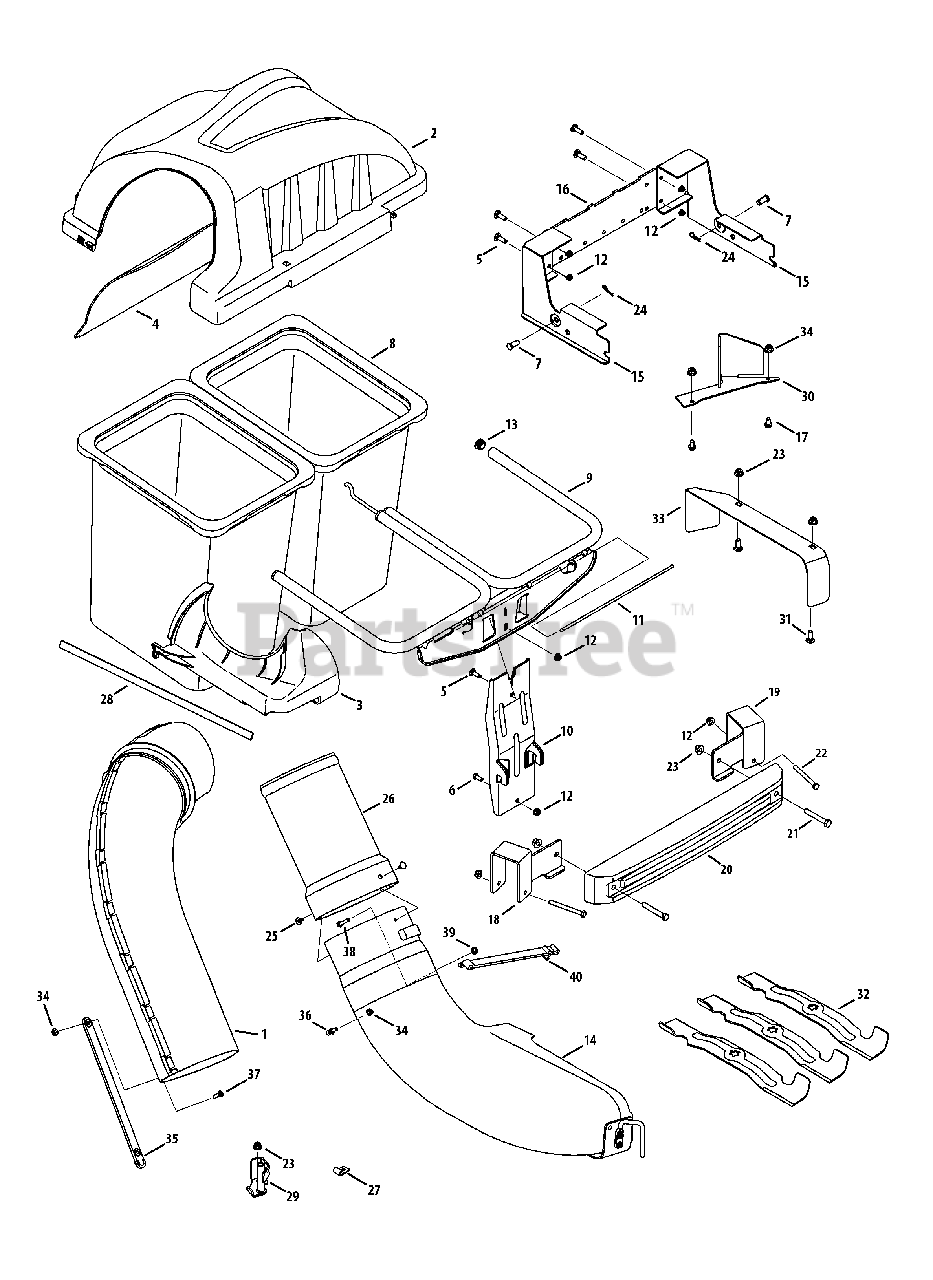

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 931-04295A

Upper Chute Assembly
(Superseded to 931-04295B)

$145.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 931-04292

Twin Bagger Cover Assembly

$147.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-06497

Upper Chute Support

$36.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 731-06504

Bagger Cover Screen

$17.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 12

0

6

Troy-Bilt 710-0376

Hex Head Screw, 5/16-18 x .75"

$3.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 911-0310

Clevis Pin, .50" Dia.
(Superseded to 711-0310)

$

$

Not available

8

Troy-Bilt 964-04090A

Grass-bag Assembly

$95.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 683-04461A-0637

Twin Bag Support Assembly
(Superseded to 683-04461B-0637)

$207.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 683-04519A-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$143.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 711-04988

Cover Hinge Pin

$12.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 735-0246A

End Plug

$5.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 631-04300C

Discharge Chute Elbow

$283.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 689-00204A

RZT Hitch Bracket Kit (RH & LH)

$191.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 783-06168-0637

Universal Cross Bracket

$140.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-04666

Hex Head Screw, 1/4 - 20 x .75

$6.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 703-09193-0637

Weight Mount Bracket, RH

$42.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 703-09197-0637

Weight Mount Bracket, LH

$42.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 719-04271A

Bagger Weight

$252.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 710-0859

Hex Head Screw, 3/8 - 16 x 2.50

$6.99

$

In Stock, Qty 16

0

22

Troy-Bilt 710-3056

Hex Head Screw, 5/16-18 x 3.25

$10.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 712-04065

Flange Lock Nut, 3/8 - 16

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 914-04023

Cotter Pin, .080 x 1.5625 Internal
(Superseded to 714-04023)

$4.49

$

In Stock, only 4 left!

0

25

Troy-Bilt 726-3046

Ratchet Clip, .250

Note: 2/25/2014 & Before

$3.99

$

In Stock, Qty 16

0

25

Troy-Bilt 710-3013

Hex Head Screw, 1/4-20 x .5 Gr 5

Note: 2/25/2014 & After

$4.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 912-0442

Acorn Hex Nut
(Superseded to 712-0442)

Note: 2/25/2014 & After

$

$

Not available

26

Troy-Bilt 731-06611

Bagger Chute Adapter, 8 x 13.5

$46.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 96606

Retainer Hook Bracket

$7.49

$

In Stock, Qty 7

0

28

Troy-Bilt 721-04388

Adhesive Strip

$7.49

$

In Stock, Qty 10

0

29

Troy-Bilt 683-0617A-0637

Chute Stop Bracket

$64.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 703-05783-0637

Deck Baffle, 50"

$87.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 742-04056C-0637

Bagging Blade, 17.90 Lg. Star
(Superseded to 942-04056C)

$35.99

$

In Stock, only 3 left!

0

33

Troy-Bilt 783-06694-0637

Chute Discharge Plate
(Superseded to 783-06694A-0637)

$43.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 912-3027

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 723-04009A

Chute Strap

$11.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 911-04069

Grass-catcher Pin

$8.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 710-0924

Machine Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 710-3015

Hex Head Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0
