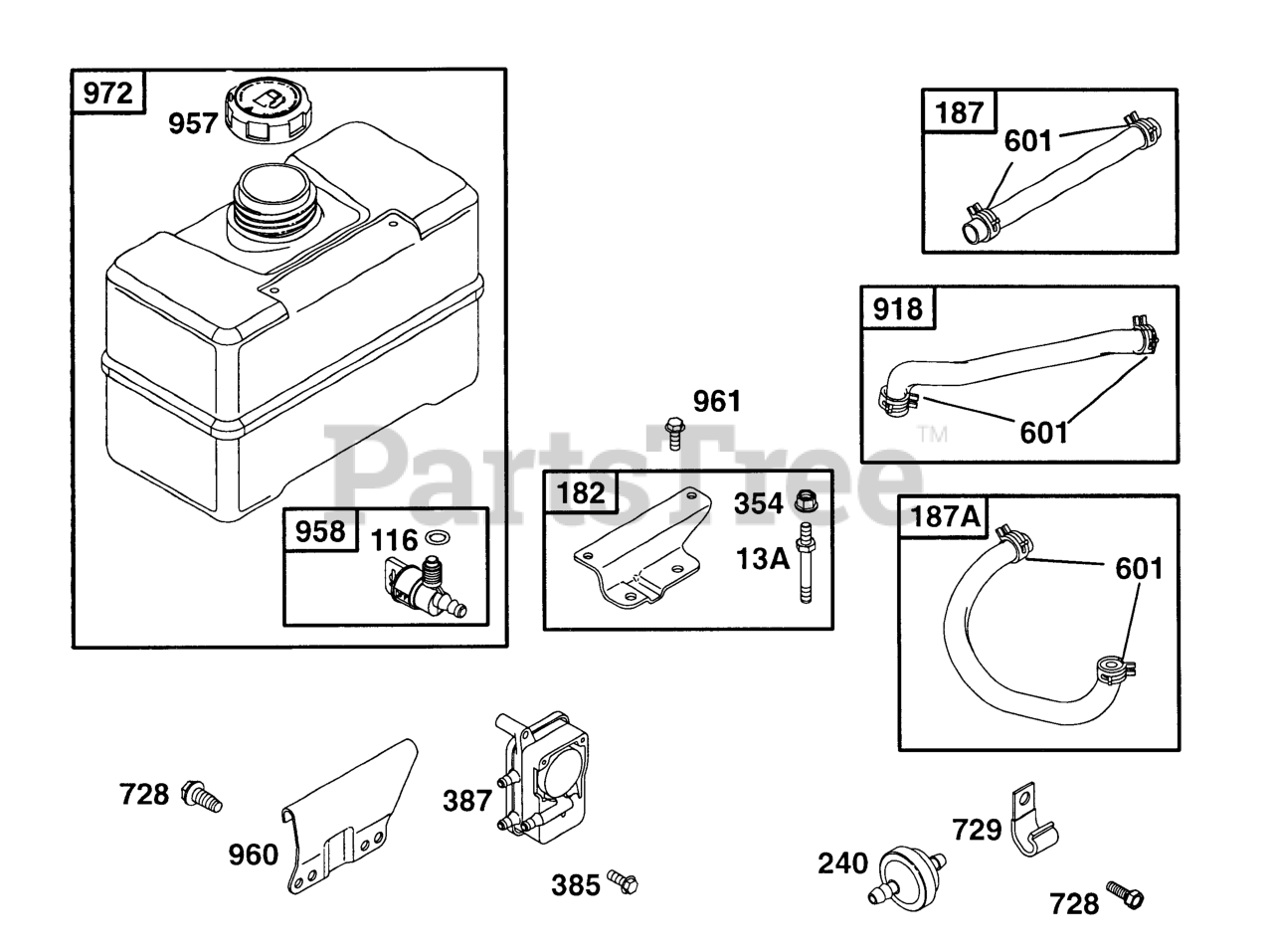

19B412-0124-01 - Briggs & Stratton Horizontal Engine Fuel Tank Grp Parts Diagram

Horizontal Engine

Fuel Tank Grp Parts Diagram

  • Title

13A

Briggs & Stratton 94733

Stud, Hex Washer He (3 5/16" Long)
(Superseded to 691690)

$

$

Not available

116

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 1 left!

0

182

Briggs & Stratton 495664

Bracket-Fuel Tank (Upper)

$

$

Not available

187A

Briggs & Stratton 497029

Line-Fuel (Molded)

$16.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296004

Line-Fuel (23" Cut To Length)
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 394358

Filter, Fuel (Used With Fuel Pump)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

354

Briggs & Stratton 94726

Nut, Hex Flange
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

385

Briggs & Stratton 94789

Screw-Hex.
(Superseded to 691673)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 496257

Pump-Fuel
(Superseded to 799056)

$30.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

728

Briggs & Stratton 94627

Screw, Sem Hex Head
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

729

Briggs & Stratton 223528

Clip, Retainer
(Superseded to 690430)

$4.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 497457

Hose-Vacuum

$9.49

$

In Stock, only 4 left!

0

957

Briggs & Stratton 493988

Cap, Tank (Plastic)
(Superseded to 799719)

$40.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 399517

Vlv-Shut Off Plas (Plastic)
(Superseded to 698182)

$

$

Not available

960

Briggs & Stratton 492990

Bracket-Fuel Tank (Lower)
(Superseded to 694592)

$17.99

$

In Stock, only 1 left!

0

961

Briggs & Stratton 94095

Screw, Tapping Hex
(Superseded to 690708)

$2.99

$

Usually ships in 2-12 days

0

972

Briggs & Stratton 493337

Tank/Cap Black Assy (4 Quart Plastic)
(Superseded to 691993)

$166.99

$

In Stock, Qty 10

0
