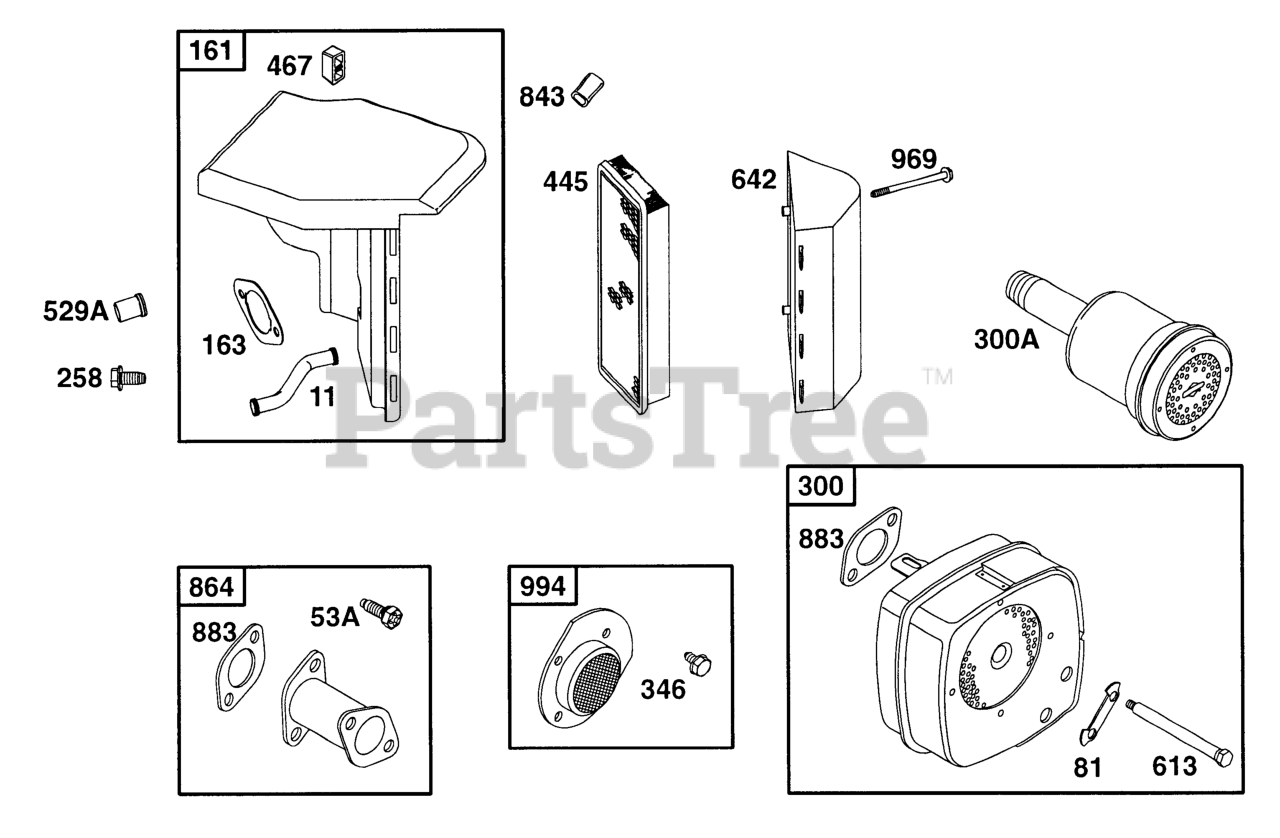

19B412-0123-01 - Briggs & Stratton Horizontal Engine Air Cleaner, Mufflers Parts Diagram

Horizontal Engine

Air Cleaner, Mufflers Parts Diagram

  • Title

11

Briggs & Stratton 280819

Tube-Breather
(Superseded to 691907)

Note: Used After Code Date 95040200

$24.99

$

In Stock, only 1 left!

0

53A

Briggs & Stratton 94706

Screw, Sem Hex Head
(Superseded to 691665)

$7.99

$

In Stock, only 4 left!

0

81

Briggs & Stratton 222263

Lock, Screw Head (3/8" Dia. Bolt Holes)
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

161

Briggs & Stratton 497669

Base-Air Cleaner
(Superseded to 498544)

$152.99

$

Usually ships in 2-12 days

0

161

Briggs & Stratton 498544

Base-Air Cleaner

Note: Used Before Code Date 95010200

$152.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 272706

Gasket, Air Cleaner (Included In Gasket Sets Packaged)
(Superseded to 692277)

Note: Included in Valve Overhaul Gasket Set-Part No. 498534. Included in Gasket Set-Part No. 497070

$6.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 272706

Gasket, Air Cleaner (Included In Gasket Sets Packaged)
(Superseded to 692277)

Note: Included in Gasket Set-Part No. 497070. Included in Valve Overhaul Gasket Set-Part No. 498534

$6.99

$

In Stock, only 2 left!

0

258

Briggs & Stratton 94620

Screw, Tapping Hex
(Superseded to 691693)

$3.99

$

In Stock, Qty 9

0

300A

Briggs & Stratton 496127

Muffler-Exhaust
(Superseded to 692025)

$41.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 391370

Muffler Grp (Lo-Tone)
(Superseded to 691951)

$80.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

445

Briggs & Stratton 496077

Filter-Air
(Superseded to 691643)

$17.99

$

In Stock, Qty 6

0

467

Briggs & Stratton 280715

Knob-Speed Control Lever
(Superseded to 692295)

$9.49

$

In Stock, only 4 left!

0

529A

Briggs & Stratton 281426

Tube-Breather

Note: Used Before Code Date 94111100

$

$

Not available

613

Briggs & Stratton 94042

Screw, Shoulder Muf
(Superseded to 691632)

$8.49

$

In Stock, only 2 left!

0

642

Briggs & Stratton 281357

Cover-air Cleaner
(Superseded to 691925)

$

$

Not available

843

Briggs & Stratton 280149

Sleeve-Lever
(Superseded to 691895)

$4.99

$

In Stock, only 1 left!

0

864

Briggs & Stratton 497140

Adapter-Muffler

$63.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 272309

Gasket-Muffler
(Superseded to 692237)

Note: Included in Gasket Set-Part No. 497070. Included in Valve Overhaul Gasket Set-Part No. 498534

$5.49

$

In Stock, only 3 left!

0

883

Briggs & Stratton 272309

Gasket-Muffler
(Superseded to 692237)

Note: Included in Valve Overhaul Gasket Set-Part No. 498534. Included in Gasket Set-Part No. 497070

$5.49

$

In Stock, only 3 left!

0

969

Briggs & Stratton 94777

Screw, Machine Hex
(Superseded to 691671)

$5.99

$

In Stock, Qty 9

0

994

Briggs & Stratton 399541

Spark Arrester

$28.99

$

Usually ships in 2-12 days

0
