19B40034 (19B40034100) - Cub Cadet XT3 Snow Cab (2019) General Assembly Parts Diagram

XT3 Snow Cab

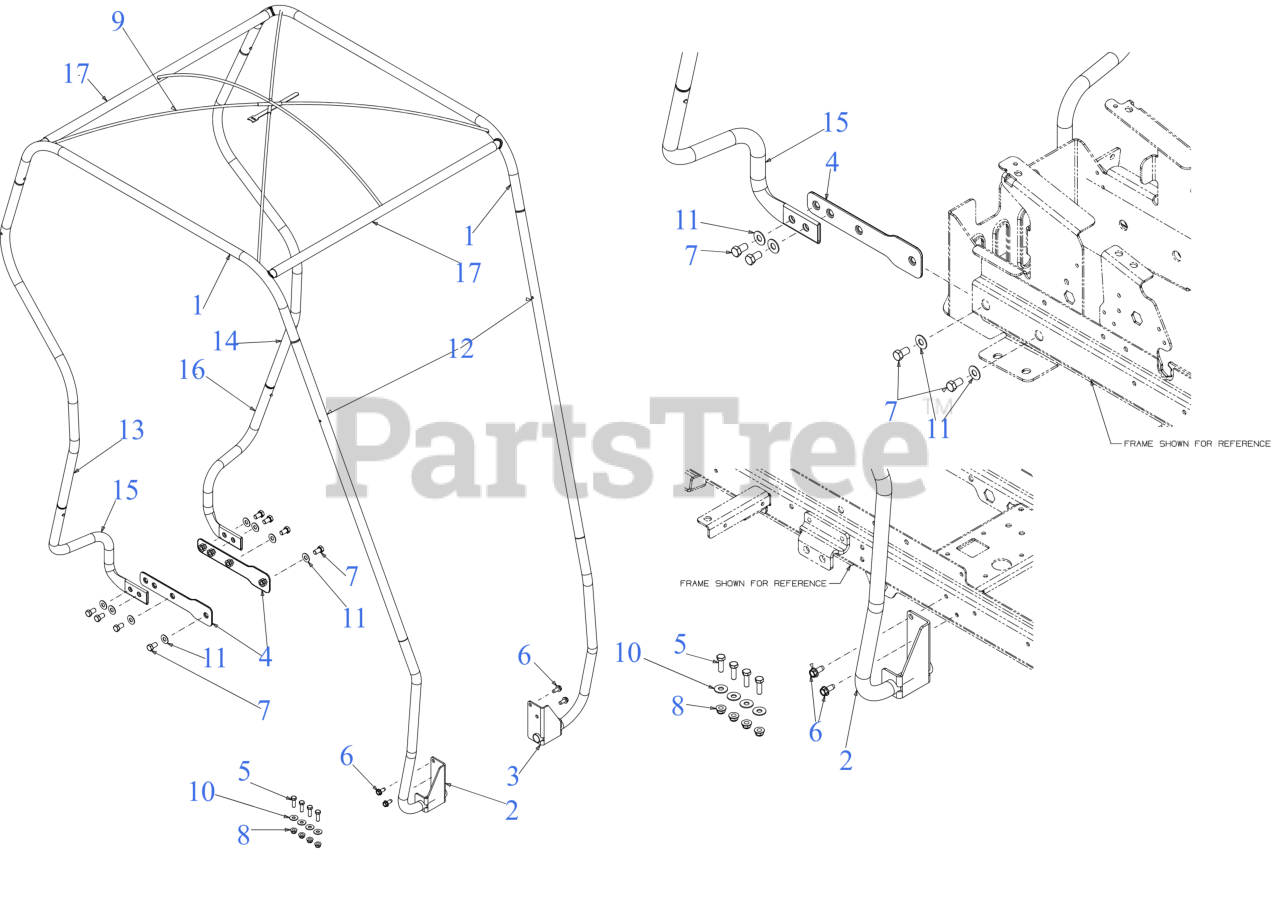

General Assembly Parts Diagram

  • Title
1

Cub Cadet 649-05053A

SUPPORT TUBE ASSEMBLY

$31.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 649-05084A

RIGHT FRONT BOTTOM SUPPORT

$34.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 649-05085A

LEFT FRONT BOTTOM SUPPORT

$34.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 683-05242

MOUNTING BRACKET

$26.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3030

SCREW 7/16-14X .750 GR5

$

$

Not available

8

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 720-05501

FLEX CABLE RODS

$56.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0371

FLAT WASHER

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 736-04006

FLAT WASHER .444x1.000x.057

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 749-05434A

FRONT RIGHT SIDE SUPPORT

$31.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 749-05435A

RIGHT REAR SUPPORT

$31.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 749-05436A

LEFT REAR SIDE SUPPORT

$34.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 749-05437A

RIGHT REAR BOTTOM SUPPORT

$39.99

$

In Stock, only 1 left!

0

16

Cub Cadet 749-05438A

LEFT REAR BOTTOM SUPPORT

$39.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 749-07234

CROSS SUPPORT TUBE

$31.99

$

Usually ships in 3-6 days

0
