19B40026 (19B40026100) - Cub Cadet EZ-Stow Hauler (2016) Bed Assembly Parts Diagram

EZ-Stow Hauler

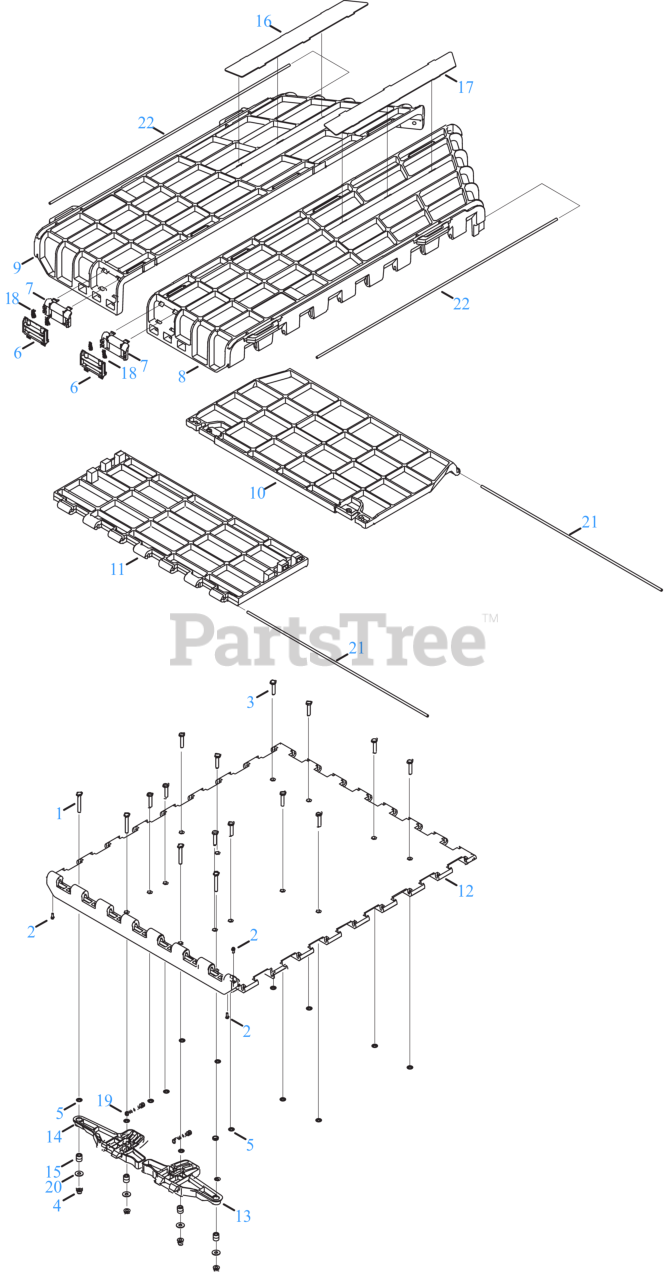

Bed Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

2

Cub Cadet 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

3

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 5

0

5

Cub Cadet 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 731-11047

PANEL LATCH

$9.49

$

In Stock, only 2 left!

0

7

Cub Cadet 731-11048

RETAINING PANEL LATCH

$9.49

$

In Stock, only 2 left!

0

8

Cub Cadet 931-11050

SIDE PANEL-LEFT
(Superseded to 931-11050B)

$76.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 931-11051

SIDE PANEL- RIGHT
(Superseded to 931-11051B)

$88.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 931-11052

TAILGATE PANEL
(Superseded to 931-11052A)

$252.99

$

In Stock, only 4 left!

0

11

Cub Cadet 931-11055

FRONT PANEL

$

$

Not available

12

Cub Cadet 931-11056

BASE PANEL

$72.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-11058

DOOR RELEASE LEVER (RH)

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-11059

DOOR RELEASE LEVER (LH)

$9.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-11060

LEVER SPACER

$

$

Not available

16

Cub Cadet 731-11118

LABEL PLATE - LEFT

$12.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-11119

LABEL PLATE - RIGHT

$13.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 732-05329

COMPRESSION SPRING

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-05330

COMPRESSION SPRING

$2.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 747-06517

HINGE ROD .25 x 27.7

$14.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 747-06518

HINGE ROD .25 x 36.8

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 19A40027OEM

TOW BEHIND CART HANDLE KIT

$122.99

$

Usually ships in 3-6 days

0

Cub Cadet 19A40030OEM

TOW BEHIND CART TOOL HOLDER KIT

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet HPA-20

HITCH PIN ASSEMBLY

$15.99

$

Usually ships in 3-6 days

0
