19B40024 (19B40024OEM) - Cub Cadet 42" 3X Snow Thrower Attachment (2023) Spindle Assembly Parts Diagram

42" 3X Snow Thrower Attachment

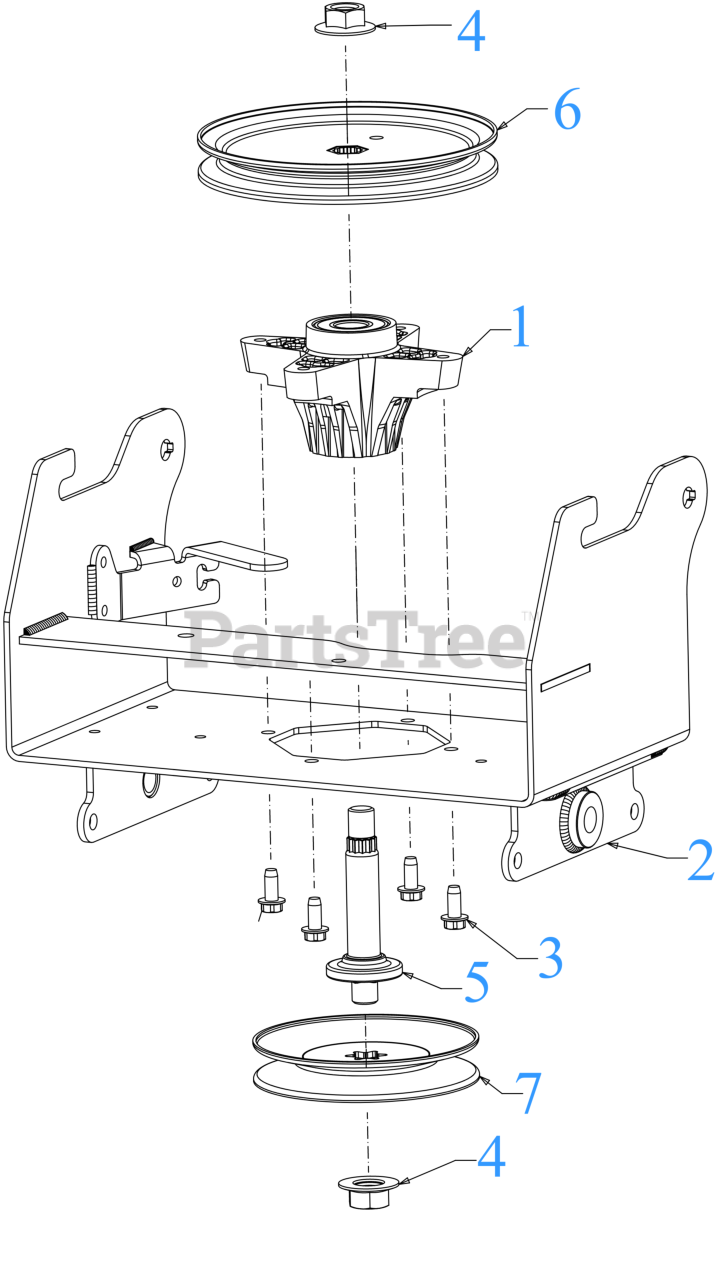

Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 918-07070

SPINDLE HOUSING ASSEMBLY

$72.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 941-0919B

BALL BEARING

Note: (Not Shown)

$21.99

$

In Stock, Qty 20+

0

1

Cub Cadet 750-1096

SPACER .800 x 1.100 x 1.5300 LG

Note: (Not Shown)

$8.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-05082A-0637

SPINDLE MOUNTING BRACKET (POWDER BLACK)

$420.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

5

Cub Cadet 738-0976

BLADE SPINDLE SHAFT 4.125 LG

$48.99

$

In Stock, only 4 left!

0

6

Cub Cadet 756-05080

V-PULLEY 7.25 DIA

$63.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 756-05081

V-PULLEY 5.57 DIA

$49.99

$

Usually ships in 3-6 days

0
