19B40024 (19B40024OEM) - Cub Cadet 42" 3X Snow Thrower Attachment (2023) Auger Housing Parts Diagram

42" 3X Snow Thrower Attachment

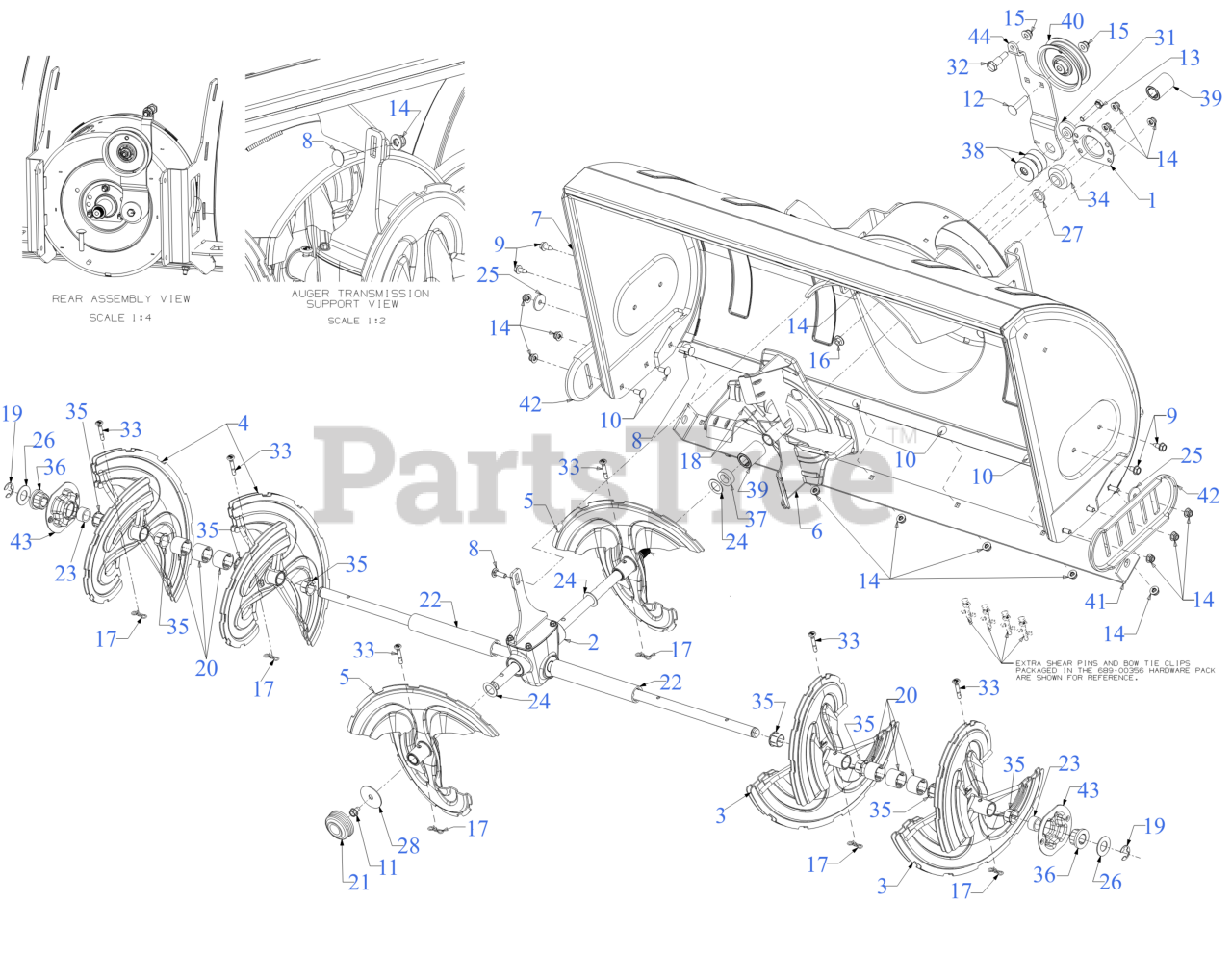

Auger Housing Parts Diagram

  • Title

1

Cub Cadet 05931A

HOUSING-BEARING

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07340

42" AUGER GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$714.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-04163A

AUGER ASSEMBLY (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 684-04163A-0637

SPIRAL ASM-AUGER LH - POWDER BLACK (0637)

$116.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-04164A

AUGER ASSEMBLY (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 684-04164A-0637

SPIRAL ASM-AUGER RH - POWDER BLACK (0637)

$116.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 684-05015C

ACCELERATOR AUGER W/BUSHNG

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 684-05015C-4021

Accelerator Auger - CUB YELLOW 2 (4021)

$74.99

$

In Stock, only 2 left!

0

Cub Cadet 684-05015C-0662

Accelerator Auger - OYSTER GRAY (0662)

$74.99

$

In Stock, only 2 left!

0

Cub Cadet 684-05015C-0638

Accelerator Auger - MTD/TROY-BILT RED (0638)

$74.99

$

In Stock, only 2 left!

0

Cub Cadet 684-05015C-0606

AUGER-ACCELERATOR - MAJESTIC ORANGE (0606)

$74.99

$

In Stock, only 2 left!

0

Cub Cadet 684-05015C-0637

Accelerator Auger - POWDER BLACK (0637)

$74.99

$

In Stock, only 2 left!

0

Cub Cadet 684-05015C-0691

AUGER-ACCELERATOR - BLACK JACK (0691)

$74.99

$

In Stock, only 2 left!

0

Cub Cadet 684-05015C-4028

AUGER-ACCELERATOR - SEARS YELLOW (4028)

$74.99

$

In Stock, only 2 left!

0

$60.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 684-05075-0637

IMPELLER ASSEMBLY (POWDER BLACK)

$132.99

$

In Stock, only 1 left!

0

7

Cub Cadet 684-05231

42" AUGER HOUSING ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 684-05231-0637

AUGER HOUSING ASSE - POWDER BLACK (0637)

$1155.99

$

Usually ships in 3-6 days

0

$934.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

12

Cub Cadet 710-06234

BOLT 3/8-16 x 1.69 GR5

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3096

SCREW 3/8-16 x 2.0 GR 8

$7.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

18

Cub Cadet 715-0114

ROLL PIN

$9.49

$

In Stock, Qty 20+

0

19

Cub Cadet 716-0231

E-RING

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 731-08637A

CAP

$5.49

$

In Stock, Qty 19

0

22

Cub Cadet 731-09558

SPACER

$10.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-10404

SPACER

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0287

FLAT WASHER .793ID x 1.24OD x .060

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0343

WASHER-5/16 x 1.25X 1.27

$4.49

$

In Stock, Qty 7

0

26

Cub Cadet 736-0445

FLAT WASHER

$4.49

$

In Stock, Qty 11

0

27

Cub Cadet 736-04624

FLAT WASHER .75 x 1.13 x .10

$4.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 6

0

31

Cub Cadet 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

32

Cub Cadet 738-04518

SHOULDER BOLT .50X.892X3/8

$5.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 738-05273

SHEAR PIN (.25 x 1.50)

$2.49

$

In Stock, Qty 20+

0

33

Cub Cadet 490-241-C062

Cub Cadet SHEAR PINS (3X SNOW)

$15.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 490-241-Y062

Troy-Bilt SHEAR PINS (3X SNOW)

$16.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 753-10904

KIT-SHEAR PIN 3 STAGE (05273/06654)

$20.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 941-0309

BEARING W/OUT COLLAR

$74.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 741-05041

FLANGE BEARING

$9.99

$

In Stock, only 2 left!

0

37

Cub Cadet 750-05218

SPACER

$7.49

$

In Stock, only 1 left!

0

38

Cub Cadet 750-06184

SPACER .385ID x 1.75OD x .585THK

$11.99

$

In Stock, only 1 left!

0

39

Cub Cadet 750-06261

SPACER

$12.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 756-0627D

FLAT PULLEY

$30.99

$

In Stock, Qty 20+

0

41

Cub Cadet 784-0396C-0637

SHAVE PLATE 42"

$64.99

$

In Stock, Qty 9

0

42

Cub Cadet 784-5038B-0637

SLIDE SHOE (POWDER BLACK)

$27.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 790-00534

HEX BREARING HOUSING

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 790-00534-0637

HOUSING-HEX BRG - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

Cub Cadet 790-00534-4021

Hex Bearing Housing - CUB YELLOW 2 (4021)

$13.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 790-00636-0637

IDLER PIVOT BRACKET (POWDER BLACK)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 689-00356A

HARDWARE PACK (SPARE SHEAR PINS)

$17.99

$

Usually ships in 3-6 days

0
