19B40015 (19B40015100) - Cub Cadet 48" FAB Mower Deck in Black (2015) att Mower Deck 48-Inch Fabricated Deck Parts Diagram

48" FAB Mower Deck in Black

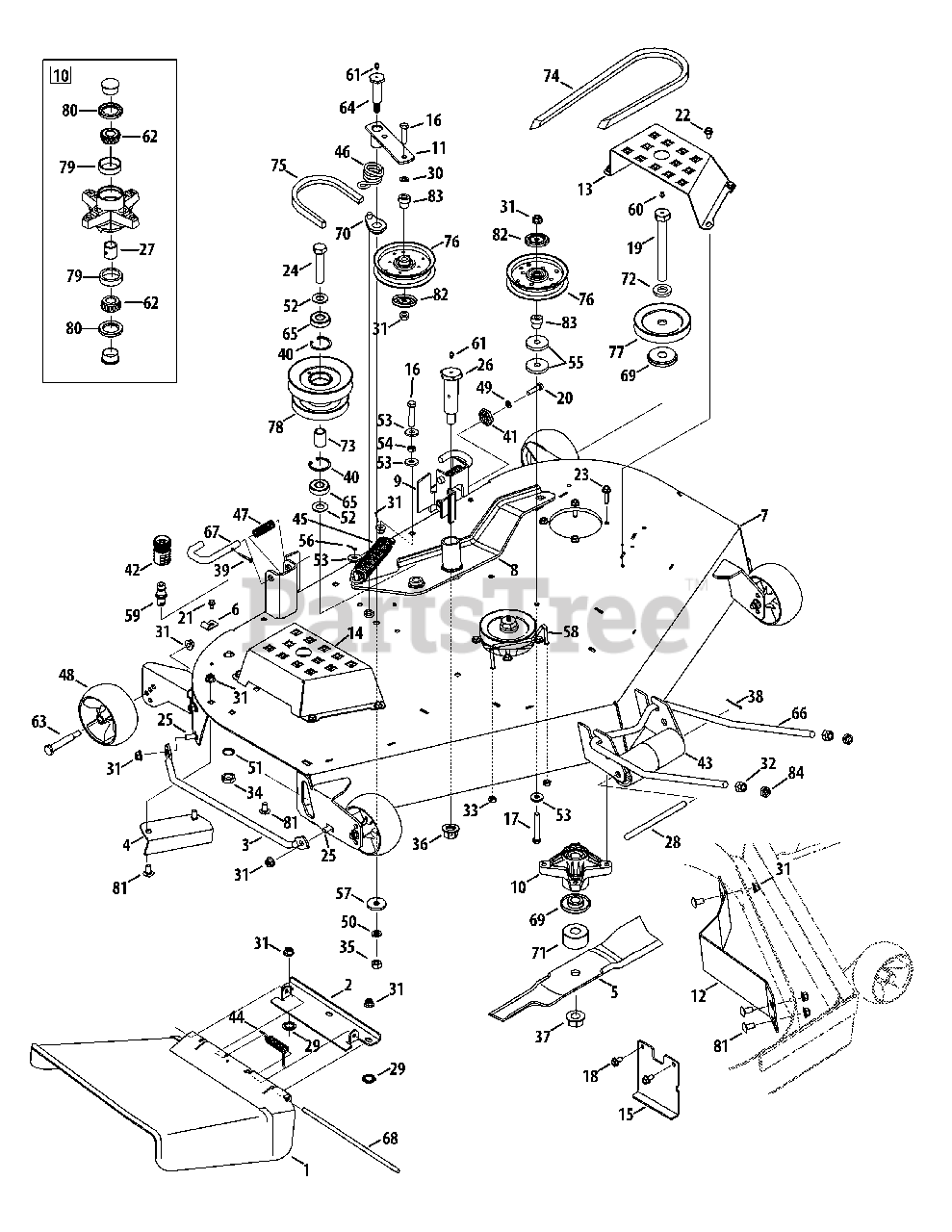

Mower Deck 48-Inch Fabricated Deck Parts Diagram

  • Title

1

Cub Cadet 01006693P

Chute Deflector

$68.99

$

In Stock, Qty 8

0

2

Cub Cadet 01006748-0637

Chute Bracket

$35.99

$

In Stock, Qty 10

0

3

Cub Cadet 01008644

Finger Guard

$36.99

$

In Stock, only 1 left!

0

4

Cub Cadet 02001235-0637

Micro Chute Baffle

$31.99

$

In Stock, only 3 left!

0

5

Cub Cadet 942-04417

Blade, 17

$28.99

$

In Stock, Qty 20+

0

6

Cub Cadet 96606

Hook Retainer Bracket

$7.49

$

In Stock, Qty 7

0

7

Cub Cadet 903-04928-0637

Deck 48"
(Superseded to 903-04928A-0637)

$1600.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 603-04851B

PTO Idler Assembly
(Superseded to 603-04851B-0637)

Variations

Cub Cadet 603-04851B-0637

PTO Idler Arm Assembly - POWDER BLACK (0637)

$113.99

$

Usually ships in 3-6 days

0

$113.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 603-04859-0637

Hanger Adjustment Bracket

$46.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 918-3129C

Spindle Assembly
(Superseded to 918-04426)

$112.99

$

In Stock, Qty 20+

0

11

Cub Cadet 603-04920A

Idler Arm

Variations

Cub Cadet 603-04920A-0637

Idler Arm Assembly - POWDER BLACK (0637)

$75.99

$

In Stock, only 1 left!

0

$75.99

$

In Stock, only 1 left!

0

12

Cub Cadet 703-07346A-0637

Baffle

$60.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-07664A-0637

LH Belt Cover

$91.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-07685A-0637

RH Belt Cover

$91.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-08458-0637

Up-Stop Bracket

$33.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0347

Hex Screw, 3/8 x 16 x 1.75

$5.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0859

Hex Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

18

Cub Cadet 710-04484

Hex Washer, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-05173A

Hex Screw, 3/4-16 x 6.00

$28.99

$

In Stock, only 4 left!

0

20

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-04605A

Hex Washer Screw, 5/16-18 x 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0923

Hex Screw, 5/8-18 x 3.00

$9.99

$

In Stock, only 1 left!

0

25

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 738-04544

Shoulder Screw, 1.0 x 3.00
(Superseded to 738-04544A)

$55.99

$

In Stock, only 4 left!

0

27

Cub Cadet 750-04409

Bearing Spacer, .78 x 1.0 x 1.0425

$20.99

$

In Stock, only 2 left!

0

28

Cub Cadet 711-3314A

Roller Pin, 1/2 x 7.31

$25.99

$

In Stock, Qty 11

0

29

Cub Cadet 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 15

0

32

Cub Cadet 712-05046

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 912-0291

Hex Lock Nut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

34

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

35

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 712-04327

Flange Lock Nut, 5/8-18

$7.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

38

Cub Cadet 714-3004

Cotter Pin, 3/32 x 1.25

$4.99

$

In Stock, Qty 8

0

39

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 916-3020

Retainer Ring

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 19

0

42

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

43

Cub Cadet 731-05679B

Front Roller

$18.99

$

In Stock, Qty 20+

0

44

Cub Cadet 732-04797

Torsion Spring, 180 x .639 x 2.16 x .12

$11.99

$

In Stock, only 4 left!

0

45

Cub Cadet 732-04896

Extension Spring, 1.25 x 6.9

$28.99

$

In Stock, only 3 left!

0

46

Cub Cadet 732-3067

Idler Torsion Spring, 1.10 x 1.3

$23.99

$

In Stock, only 1 left!

0

47

Cub Cadet 932-3127

Compression Spring, .66 x 1.8

$4.49

$

In Stock, only 4 left!

0

48

Cub Cadet 734-04155

Deck Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

49

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

51

Cub Cadet 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

52

Cub Cadet 736-0237

Flat Washer, .65 x 1.25 x .075

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 19

0

55

Cub Cadet 736-04131

Flat Washer, .4375 x 1.75 x .25

$15.99

$

In Stock, only 1 left!

0

56

Cub Cadet 914-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, Qty 17

0

57

Cub Cadet 736-3082A

Flat Washer, .45 x 1.5 x .172

$9.99

$

In Stock, Qty 16

0

58

Cub Cadet 747-05586A

Belt Drive Guard

$29.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

60

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

61

Cub Cadet 937-3000

Drive Lube Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

62

Cub Cadet 941-04089

Cone Bearing, .750
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

63

Cub Cadet 938-3056

Shoulder Screw, 1/2 x 2.50

$9.49

$

In Stock, Qty 20+

0

64

Cub Cadet 738-04545

Shoulder Screw, 7/16-14 x .687 x 2.443

$26.99

$

In Stock, only 2 left!

0

65

Cub Cadet 941-0524A

Ball Bearing, .625 x 40 x 12

$23.99

$

In Stock, Qty 20+

0

66

Cub Cadet 747-05350

Front Hanger Rod

$55.99

$

In Stock, Qty 5

0

67

Cub Cadet 747-3188

Mower Support Pin

$34.99

$

In Stock, only 3 left!

0

68

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0

69

Cub Cadet 748-3065A

Spindle Spacer

$13.99

$

In Stock, Qty 14

0

70

Cub Cadet 748-3100A

Spring Retainer

$28.99

$

In Stock, only 1 left!

0

71

Cub Cadet 750-05420

Spindle Spacer, .760 x 2.0 x 1.10

$13.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 750-05553

Spacer, .812 x .218

$9.99

$

In Stock, Qty 20+

0

73

Cub Cadet 950-3132

Spacer, .88 x .635 x 1.25

$9.99

$

In Stock, only 1 left!

0

74

Cub Cadet 954-04045

Deck Belt

$56.99

$

In Stock, Qty 10

0

75

Cub Cadet 954-04055

PTO Belt

$78.99

$

In Stock, only 2 left!

0

76

Cub Cadet 756-05042

Idler Pulley

$31.99

$

In Stock, Qty 20+

0

77

Cub Cadet 756-3089

Pulley

$36.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 756-3107A

Double Pulley

$112.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 941-04091

Bearing Cup, .750
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

80

Cub Cadet 921-3018A

Oil Seal

$8.49

$

In Stock, Qty 20+

0

81

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

82

Cub Cadet 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

83

Cub Cadet 748-05029A

Shoulder Spacer, Idler

$4.99

$

In Stock, Qty 20+

0

84

Cub Cadet 912-3048

Nut, Jam, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 18

0
