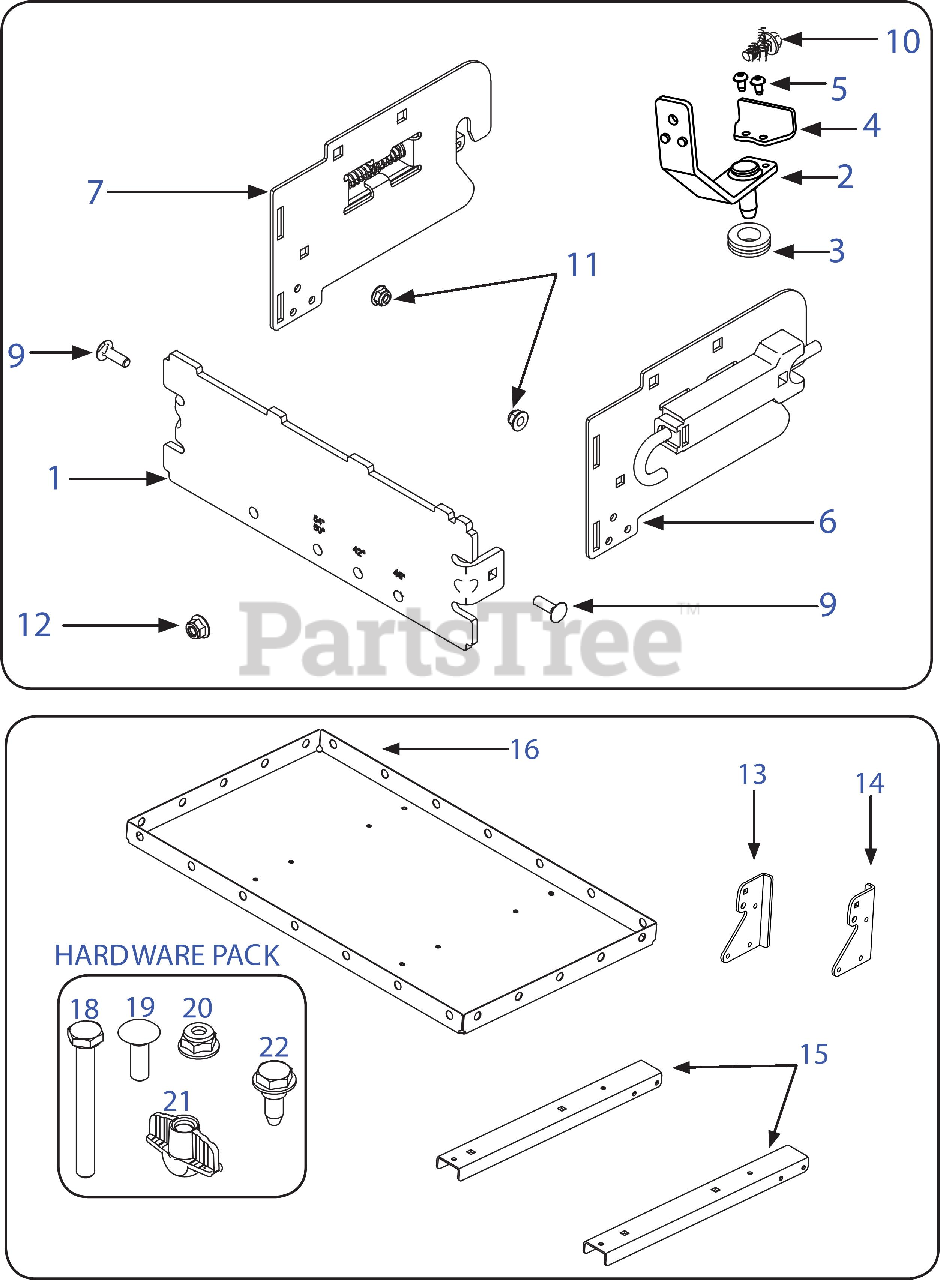

19B30029 (19B30029100) - Cub Cadet Cargo Carrier with Hitch Bracket Assembly General Assembly Parts Diagram

Cargo Carrier with Hitch Bracket Assembly

General Assembly Parts Diagram

  • Title
1

Cub Cadet 783-08056A

Rear Support Bracket

Variations

Cub Cadet 783-08056A-0637

REAR MOUNTING PLAT - POWDER BLACK (0637)

$34.99

$

In Stock, only 1 left!

0

$28.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 689Z00463A

Pin Hitch Support Assembly

Note: Parts come preassembled, Fast Attach Support Bracket Assembly.

$61.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 735-0277A

Rubber Grommet

$10.99

$

In Stock, only 1 left!

0

4

Cub Cadet 689Z00463A

Hitch Support Bracket

Note: Parts come preassembled, Fast Attach Support Bracket Assembly.

$61.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-05070A

Torx Screw: 1/4-20

$6.99

$

In Stock, Qty 7

0

6

RH Bracket Assembly

$

$

Not available

7

LH Bracket Assembly

$

$

Not available

Cub Cadet 689-00486

Hitch Hardware Pack

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0276

Carriage Screw: 5/16-18: 1.0

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04683C

Hex Screw: 3/8-16: 1.0

$6.49

$

In Stock, only 4 left!

0

11

Cub Cadet 712-04063

Nylon Lock Nut: 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

Flange Lock Nut: 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 789-00402

LH Cargo Hinge Bracket
(Superseded to 789-00402-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

$26.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 789-00403

RH Cargo Hinge Bracket
(Superseded to 789-00403-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

$26.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 789-00352

Cargo Support Bracket

Variations

Cub Cadet 789-00352-0637

CARGO CARRIER SUPP - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 789-00354

Cargo Carrier

Variations

Cub Cadet 789-00354-0637

CARGO CARRIER BOX - POWDER BLACK (0637)

$90.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 689-00487

Cargo Carrier Hardware Pack

$30.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0641

Hex Screw: 1/4-20: 2.25

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet 710-0703

Carriage Screw: 1/4-20: .75

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04064

Flange Lock Nut: 1/4-20

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 720-0279

Wing Nut: 1/4-20

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 938-1225

Shoulder Screw: .3175 x .188: 1/4-20
(Superseded to 738-1225)

$

$

Not available
