19A70064 (19A70064100) - Cub Cadet 48" Xtreme Mulch Kit (2019) General Assembly Parts Diagram

48" Xtreme Mulch Kit

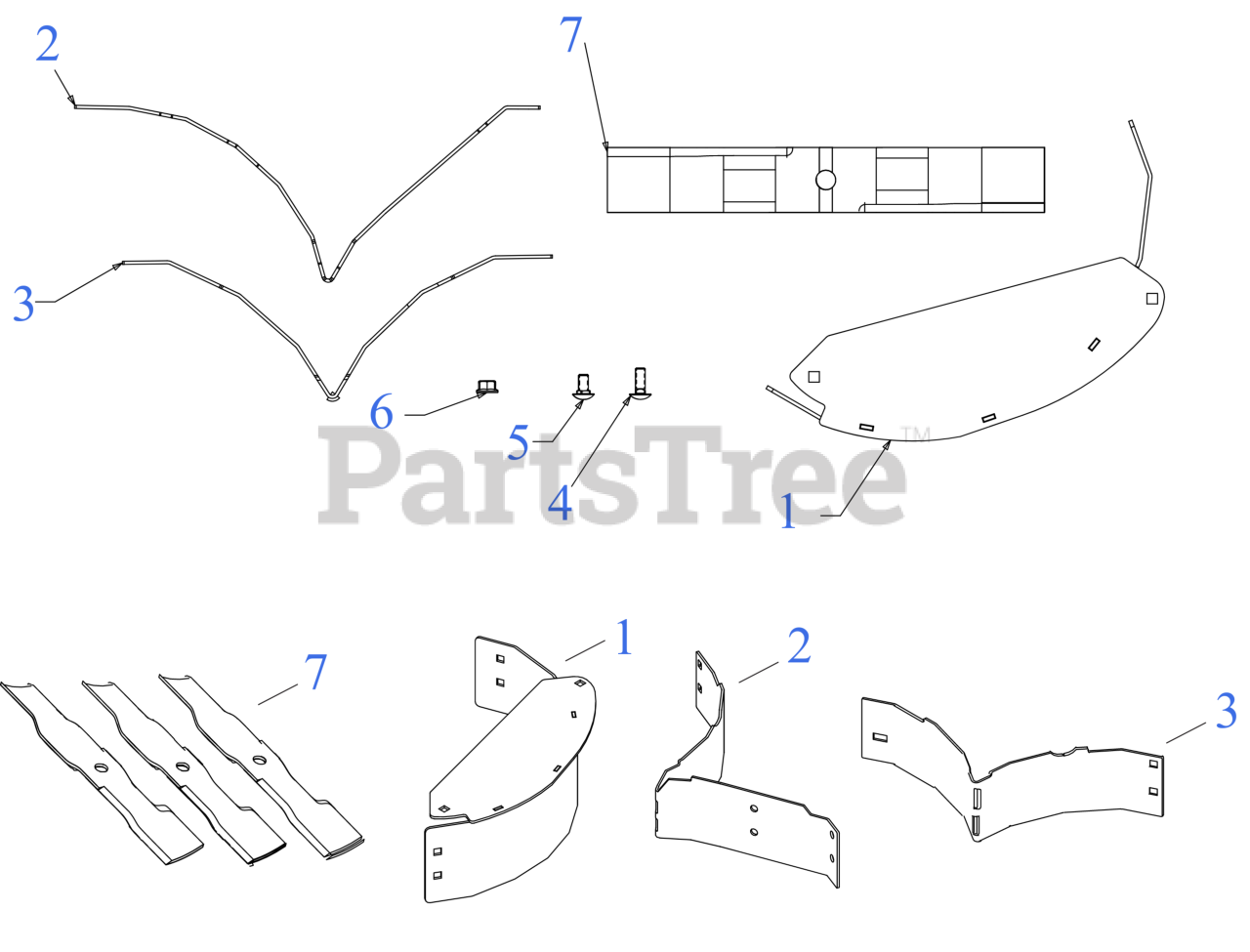

General Assembly Parts Diagram

  • Title
1

48" DISCHARGE MULCH BAFFLE

$

$

Not available

2

Cub Cadet 703-07182A

MULCH BAFFLE (CENTER)

Variations

Cub Cadet 703-07182A-0637

BFL-CENTER MULCH - POWDER BLACK (0637)

$83.99

$

In Stock, only 2 left!

0

$67.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-07210A

MULCH BAFFLE (LEFT)

Variations

Cub Cadet 703-07210A-0637

BAFFLE-LEFT MULCH - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-05007

NUT-CTRLCK FLG HEX

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 742-04278A

17" BLADE (MULCH)
(Superseded to 942-04278A)

$39.99

$

In Stock, Qty 6

0

Cub Cadet 19A70064100

48" MULCH KIT
(Superseded to 19B70064100)

$278.99

$

Usually ships in 3-6 days

0
