19A70052 (19A70052OEM) - Cub Cadet 34" Twin Rear Bagger (2017) Mount Parts Diagram

34" Twin Rear Bagger

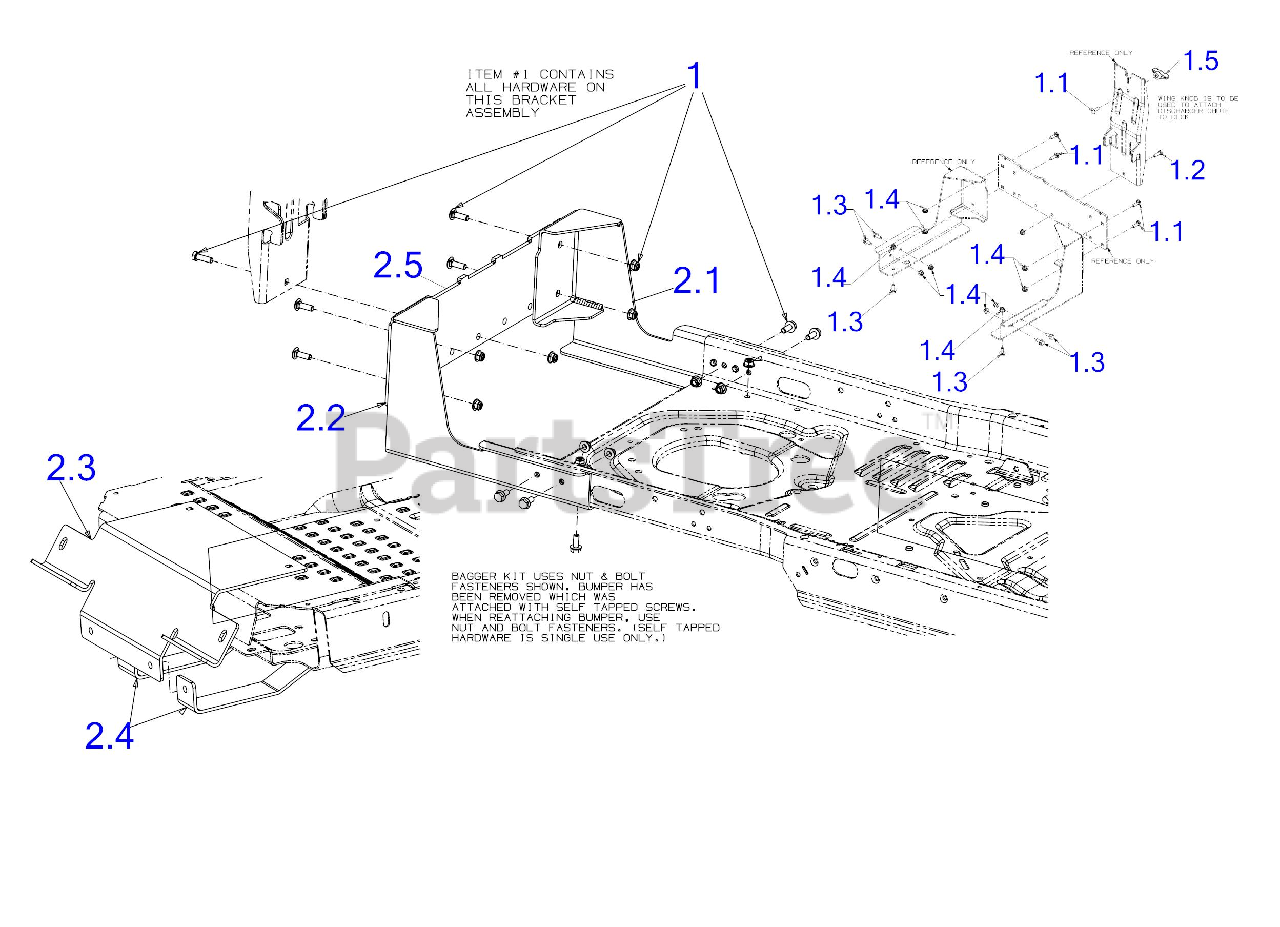

Mount Parts Diagram

  • Title

1

Cub Cadet 689-00567

HARDWARE PACK BAGGER MOUNTING

$26.99

$

Usually ships in 3-6 days

0

1.1

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

1.2

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

1.3

Cub Cadet 710-04043

SCREW 5/16-18

$4.49

$

Usually ships in 3-6 days

0

1.4

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

1.5

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

2.1

Cub Cadet 703-10951

BAGGER MOUNTING BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10951-0637

BAGGER MOUNTING BR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

2.2

Cub Cadet 703-10952

BAGGER MOUNTING BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10952-0637

BAGGER MOUNTING BR - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

2.3

Cub Cadet 703-11046

WEIGHT MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-11046-0637

WEIGHT MOUNTING BR - POWDER BLACK (0637)

$85.99

$

Usually ships in 3-6 days

0

$74.99

$

Usually ships in 3-6 days

0

2.4

Cub Cadet 703-11112

WEIGHT MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-11112-0637

WEIGHT MOUNTING BR - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

2.5

Cub Cadet 783-06168-0637

SUPPORT PLATE

$140.99

$

Usually ships in 3-6 days

0
