19A70052 (19A70052OEM) - Cub Cadet 34" Twin Rear Bagger (2017) Boot Parts Diagram

34" Twin Rear Bagger

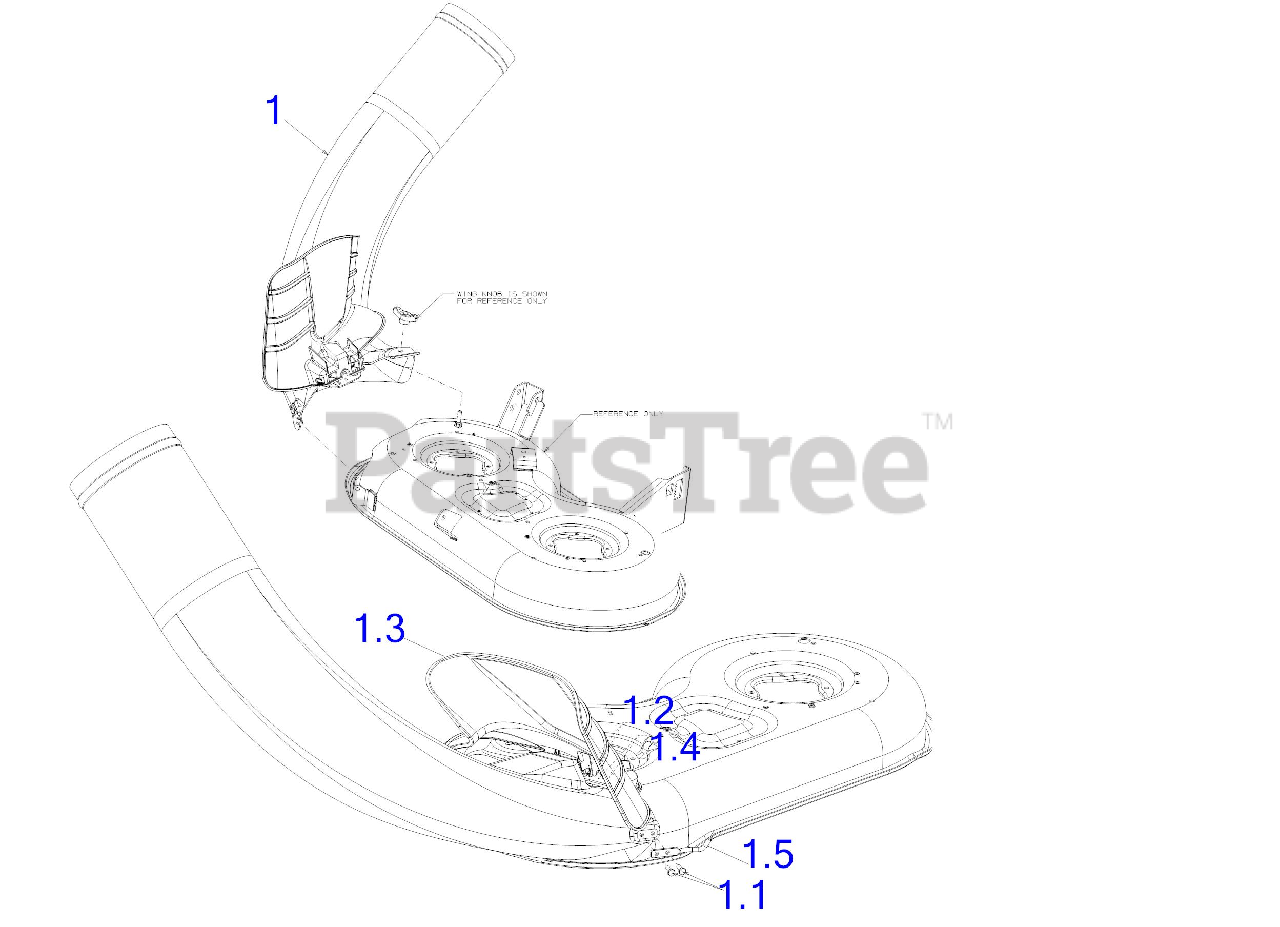

Boot Parts Diagram

  • Title
1

Cub Cadet 931-05438

34" LOWER BOOT ASSEMBLY

$145.99

$

Usually ships in 3-6 days

0

1.1

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

1.2

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

1.3

DISCHARGE CHUTE

Note: (Order Complete Assembly)

$

$

Not available

1.4

Cub Cadet 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 20+

0

1.5

Cub Cadet 747-06317A

MULCH PLUG MOUTING ROD

$6.49

$

In Stock, only 1 left!

0
