19A70045 (19A70045100) - Cub Cadet Power Deck Lift Kit General Assembly Version 1 Parts Diagram

Power Deck Lift Kit

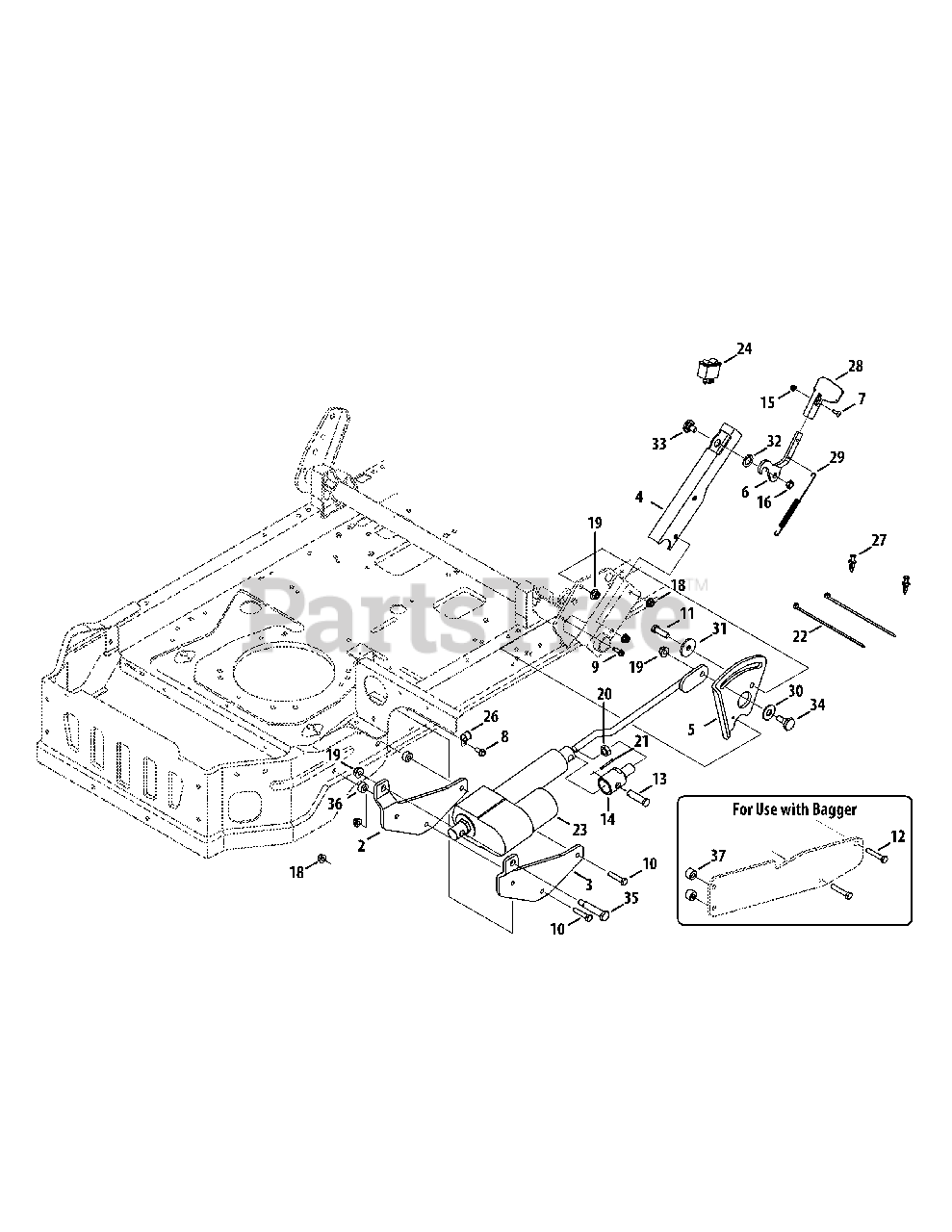

General Assembly Version 1 Parts Diagram

  • Title

1

Cub Cadet 603-05103

Link Assembly, Lift

$241.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09485-0637

Bracket, Mounting, Inner

$90.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09487-0637

Bracket, Mounting, Outer

$90.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09520-0637

Handle, Lift, Electric

$77.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09525-0637

Bracket, Lift, Electric, RH

$68.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09532-0637

Bracket, Lock, Lift

$30.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0425

Screw, Machine, #10-24, 0.625

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0642

Screw, Self-tapping, 1/4-20, .750

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0805

Hex Screw, 5/16-18, 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 710-3005

Hex Screw, 3/8-16, 1.25

$3.99

$

In Stock, Qty 12

0

12

Cub Cadet 710-3180

Hex Screw, 5/16-18, 1.75

$5.49

$

In Stock, Qty 15

0

13

Cub Cadet 911-0231

Pin, Clevis, .50 Dia x 1.59
(Superseded to 711-0231A)

$6.49

$

In Stock, only 3 left!

0

14

Cub Cadet 711-06168

Coupling, Lift, Actuator

$374.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0161

Nut, Hex Lock, #10-24, Nylon

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet 712-0266A

Nut, Jam, 3/8-16, Gr5

$3.99

$

In Stock, Qty 11

0

17

Cub Cadet 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

18

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 912-3048

Nut, Jam, 1/2-13, Gr5
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 7

0

21

Cub Cadet 914-0115

Pin, Cotter, 1/8 x 1.0
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 725-0157

Cable Ties

$3.99

$

In Stock, only 2 left!

0

23

Cub Cadet 725-04500

Actuator

$1473.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 725-04704

Switch

$65.99

$

In Stock, only 1 left!

0

25

Cub Cadet 925-06136

Harness, Electric Deck Lift

$133.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 728-0199

Rivet, Plastic

$4.49

$

In Stock, Qty 15

0

28

Cub Cadet 731-08170

Knob

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 732-0932

Spring, Extension, .38 Dia x 5.6

$14.99

$

In Stock, only 2 left!

0

30

Cub Cadet 936-0179

Washer, Flat, .531 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

31

Cub Cadet 936-0227

Washer, Flat, .390 x 1.50 x .134
(Superseded to 736-0227)

$

$

Not available

32

Cub Cadet 936-0337

Washer, Flat, .634 x 1.00 x .04

$4.49

$

In Stock, Qty 9

0

33

Cub Cadet 938-0281

Screw, Shoulder, .625 x .17, 3/8-16
(Superseded to 738-0281)

$

$

Not available

34

Cub Cadet 938-0507B

Screw, Shoulder, .500 x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

35

Cub Cadet 938-0527

Screw, Shoulder, .498 x 2.045
(Superseded to 738-0527)

$8.49

$

In Stock, Qty 5

0

36

Cub Cadet 750-0258

Spacer, .315 x .75 x .375

$11.99

$

In Stock, only 1 left!

0

37

Cub Cadet 750-0890

Spacer, .325 x .75 x .520

$6.99

$

In Stock, Qty 6

0
