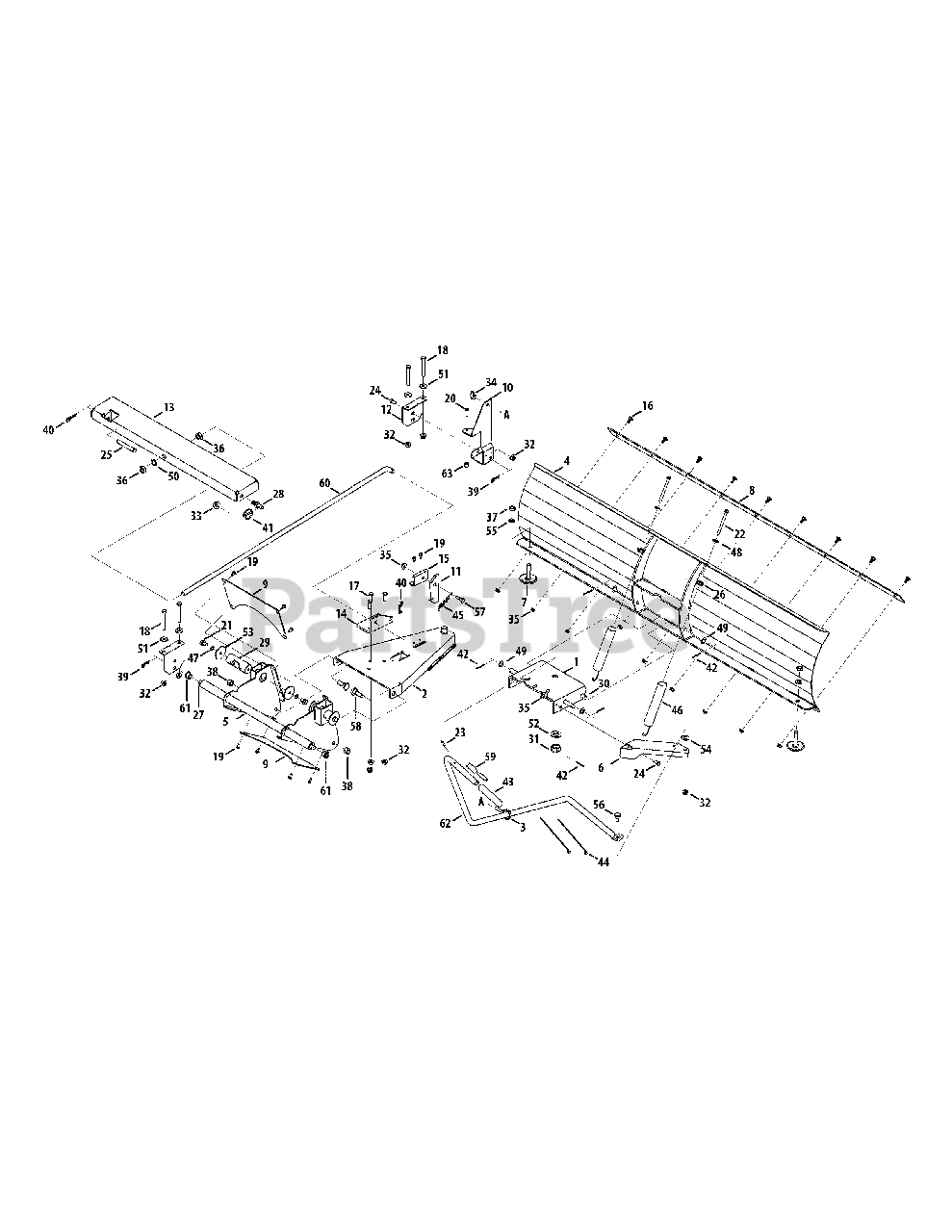

19A70044 (19A70044100) - Cub Cadet 58" Snow Blade General Assembly Parts Diagram

58" Snow Blade

General Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0266-0637

Blade Pivot Assembly

$144.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0267A-0637

Blade Frame Assembly

$354.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0297

Eyebolt Assembly

$14.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04893-0637

Blade Assembly

$600.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-05157-0637

Brace Bracket Assembly

$256.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-05171-0637

RH Blade Adjust Arm

$69.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-0650

Skid Shoe Assembly

Variations

Cub Cadet 703-0650-0637

Snow Skid Shoe - POWDER BLACK (0637)

$47.99

$

In Stock, only 3 left!

0

$47.99

$

In Stock, only 3 left!

0

8

Cub Cadet 703-08523-0637

Blade Scraper Plate

$122.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08843-0637

Brace Cover

$39.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08868A-0637

Handle Mount Bracket

$61.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-09000A

Blade Lock Plate

$42.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-09133-0637

Mount Bracket

$26.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-09774-0637

Blade Lift Bracket

$166.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-2679-0637

Front Lift Bracket

$22.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-2693-0637

Pivot Bracket

$19.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0521

Hex Screw, 3/8-16 x 3.00

$5.49

$

In Stock, Qty 10

0

19

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0788

Hex Washer Screw, 1/4-20 x 1.000

$7.49

$

In Stock, only 4 left!

0

21

Cub Cadet 710-0870

Hex Washer Screw, 3/8-16 x .625

$6.49

$

In Stock, only 1 left!

0

22

Cub Cadet 710-1207

Hex Screw, 5/16-18 x 3.50

$6.99

$

In Stock, only 4 left!

0

23

Cub Cadet 710-1233

Machine Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

24

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 911-04067

Clevis Pin, .50 x 3.25
(Superseded to 711-06472)

$6.49

$

In Stock, only 1 left!

0

26

Cub Cadet 711-0509

Spring Insert

$60.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 711-05748

Rod, .50 x 22.65

$94.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 711-06200

Deck Lock Pin, .500
(Superseded to 711-06200B)

$6.49

$

In Stock, only 2 left!

0

29

Cub Cadet 711-06282

Pivot Pin, 1.250

$39.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 711-3402A

Rod, .50 x 10.428

$37.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

32

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, only 1 left!

0

34

Cub Cadet 712-0421

Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 912-3015

Jam Nut, 5/8-11
(Superseded to 712-3015)

$4.99

$

In Stock, only 2 left!

0

37

Cub Cadet 912-3048

Jam Nut, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 7

0

38

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 714-0147

Cotter Pin, .125 x 1.75

$4.99

$

In Stock, Qty 7

0

41

Cub Cadet 753-04070

Lynch Pin, .1875

$9.99

$

In Stock, Qty 20+

0

42

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 720-0283

Foam Grip

$8.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 725-0157

Cable Tie, 3/16 x 7.4

$3.99

$

In Stock, only 2 left!

0

45

Cub Cadet 932-0320

Extension Spring, .38 x 3.25

$10.99

$

In Stock, only 1 left!

0

46

Cub Cadet 732-3123

Extension Spring, 1.25 x 6.7

$28.99

$

In Stock, only 4 left!

0

47

Cub Cadet 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, only 3 left!

0

48

Cub Cadet 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

49

Cub Cadet 936-0160

Flat Washer, .53 x .93 x .050

$4.49

$

In Stock, Qty 9

0

50

Cub Cadet 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

51

Cub Cadet 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

In Stock, only 4 left!

0

52

Cub Cadet 736-0315

Flat Washer, .760 x 1.50 x .120

$6.99

$

In Stock, Qty 6

0

53

Cub Cadet 736-04018

Flat Washer, .38 x 2.00 x .12

$7.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 936-0414

Flat Washer, .570 x 1.120 x .062
(Superseded to 736-0414)

$

$

Not available

55

Cub Cadet 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 5

0

56

Cub Cadet 738-0143

Shoulder Bolt, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 738-04320

Shoulder Screw, 5/16-18 x .405 x .435

$5.49

$

In Stock, only 2 left!

0

58

Cub Cadet 938-0744A

Shoulder Screw, 1/2-13 x .625 x .36

$11.99

$

In Stock, only 4 left!

0

59

Cub Cadet 946-3059B

Blade Release Cable

$56.99

$

In Stock, only 1 left!

0

60

Cub Cadet 747-05499

Lift Rod

$94.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 948-0108

Flange Bearing, .503 x .75

$8.99

$

In Stock, only 4 left!

0

62

Cub Cadet 749-04953A-0637

Blade Adjust Handle

$138.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 950-04143

Spacer, .258 x .50 x .50

$6.99

$

Usually ships in 3-6 days

0
