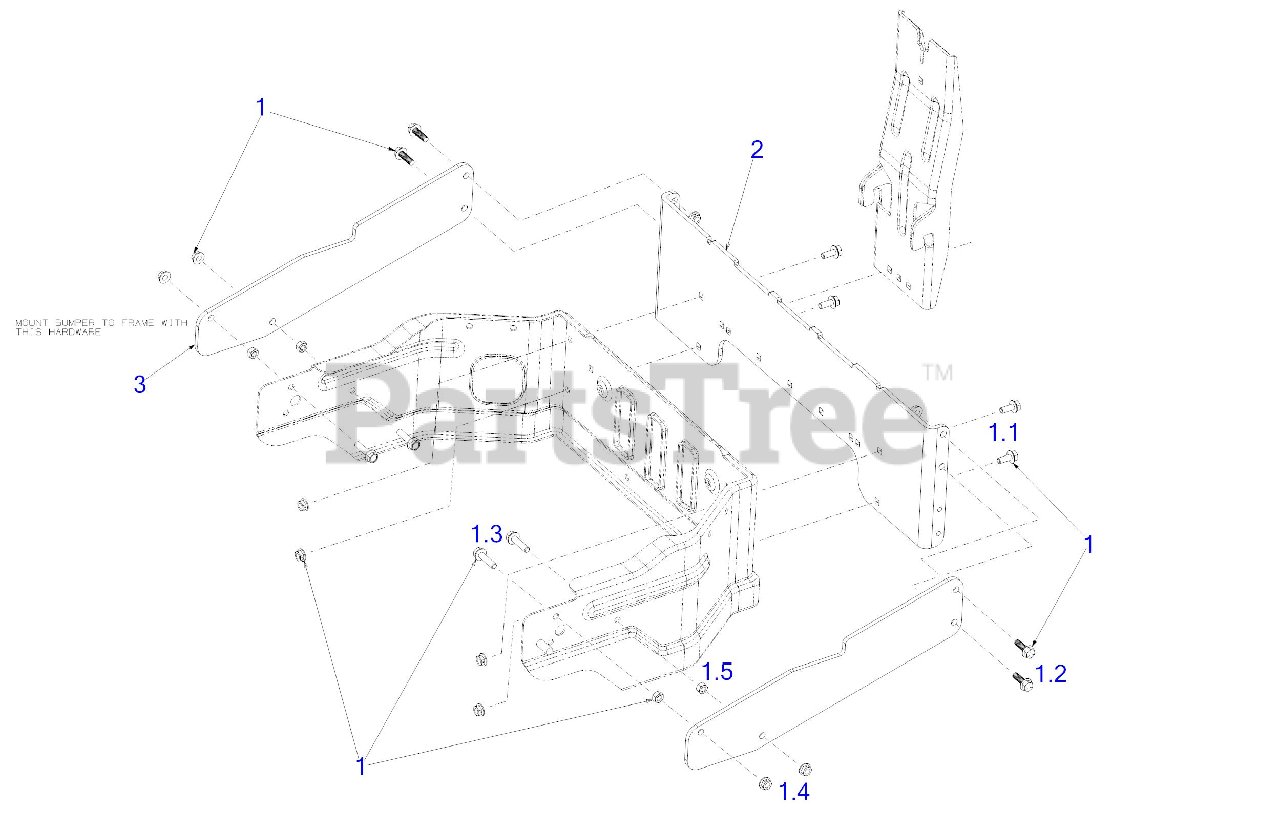

19A70040000 - MTD Triple Rear Bagger (2015) Mount Parts Diagram

Triple Rear Bagger

Mount Parts Diagram

  • Title

1

MTD n/a

HARDWARE PACK

$

$

Currently unavailable

1.1

MTD 710-04043

SCREW 5/16-18

$4.49

$

Usually ships in 3-6 days

0

1.2

MTD 710-04048

SCREW 5/16-18 x 1 GR5

$4.99

$

In Stock, Qty 7

0

1.3

MTD 710-1090

SCREW 5/16-18 x 1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

1.4

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

1.5

MTD 912-3010

HEX NUT
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

2

MTD 703-07657A

CATCHER MOUNTING PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-07657A-0637

Catcher Mounting Plate - POWDER BLACK (0637)

$128.99

$

Usually ships in 3-6 days

0

$119.99

$

Usually ships in 3-6 days

0

3

MTD 703-09778

CATCHER SUPPORT

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09778-0637

Catcher Support Plate - POWDER BLACK (0637)

$61.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0
