19A70028 (19A70028100) - Cub Cadet 52" Snow Blade att2 General Assembly Parts Diagram

52" Snow Blade

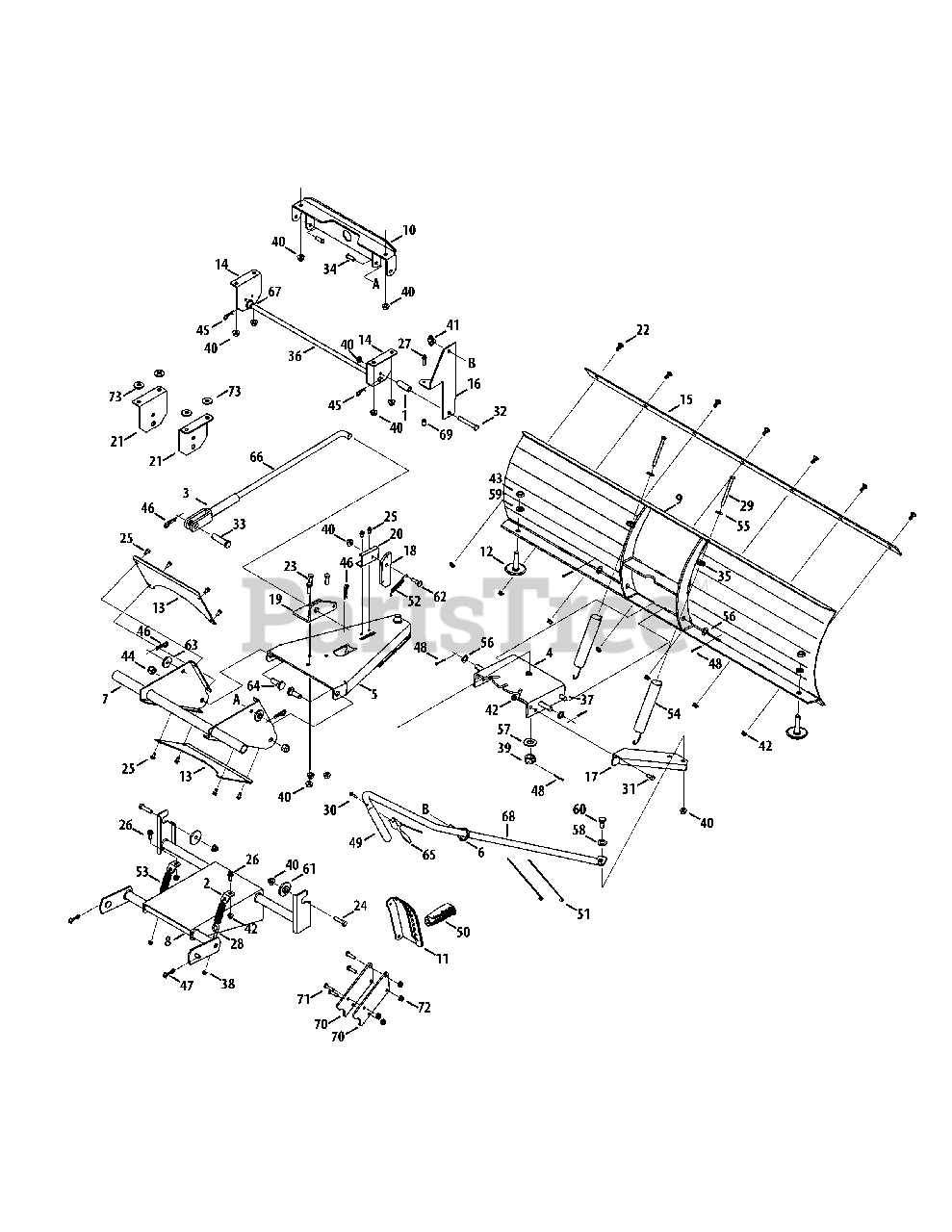

General Assembly Parts Diagram

  • Title

1

Cub Cadet 02003640

Spacer, .390 x .625 x 1.88

$6.99

$

In Stock, Qty 10

0

2

Cub Cadet 02004194

Spring Mount Bracket, 45°
(Superseded to 02004195)

$31.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 10991-0637

Clevis Adjustment Assembly

$137.99

$

In Stock, only 1 left!

0

4

Cub Cadet 603-0266

Blade Pivot Assembly

Variations

Cub Cadet 603-0266-0498

USE 603-0266-0716 PIVOT ASM-B - OLD CUB YELLOW (0498)

$134.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0266-0716

PIVOT ASM-BLADE - CUB YELLOW-99 (0716)

$134.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0266-0637

PIVOT ASM-BLADE - POWDER BLACK (0637)

$144.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0266-4021

PIVOT ASM-BLADE - CUB YELLOW 2 (4021)

$134.99

$

Usually ships in 3-6 days

0

$116.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-0267A

Blade Frame Assembly

Variations

Cub Cadet 603-0267A-0637

FRAME ASM-BLADE A - POWDER BLACK (0637)

$354.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0267A-4021

FRAME ASSY-BLADE - CUB YELLOW 2 (4021)

$354.99

$

Usually ships in 3-6 days

0

$308.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-0297

Eyebolt Assembly

$14.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 603-04963-4021

Bracket Assembly

$171.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 603-04968-4021

Lift Bracket Assembly

$

$

Not available

9

Cub Cadet 603-04969-4021

Blade Assembly. 52"

$596.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 603-05003-4021

Blade Mount Bracket Assembly
(Superseded to 603-05003A-4021)

$111.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 603-05018

Blade Height Adj. Index Bracket
(Superseded to 603-05018B)

$55.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-0650-0637

Skid Shoe Assembly
(Superseded to 703-0650)

$47.99

$

In Stock, Qty 8

0

13

Cub Cadet 703-08843-4021

Cover Brace

$34.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-08844-4021

Mounting Bracket

$21.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-08866-4021

Blade Scraper Plate, 52"

$134.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-08868-4021

Handle Mount Bracket
(Superseded to 703-08868A-4021)

$61.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 703-08879-4021

Blade Adjustment Arm
(Superseded to 603-05171-4021)

$69.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 703-09000

Blade Lock Plate
(Superseded to 703-09000A)

$42.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-2679-4021

Front Lift Bracket

$22.99

$

In Stock, only 1 left!

0

20

Cub Cadet 703-2693-4021

Pivot Bracket

$20.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 703-09133

Mount Bracket

Variations

Cub Cadet 703-09133-0637

BRACKET-HNGR ROD MTG - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09133-4021

BRACKET-HNGR ROD MTG - CUB YELLOW 2 (4021)

$24.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.50

$4.49

$

In Stock, Qty 5

0

25

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0650

Hex Washer Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0788

Hex Washer Screw, 1/4-20 x 1.000

$7.49

$

In Stock, only 2 left!

0

28

Cub Cadet 710-1205

Eye Bolt, 1/4-20

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 710-1207

Hex Screw, 5/16-18 x 3.50

$6.99

$

In Stock, only 4 left!

0

30

Cub Cadet 710-1233

Machine Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

31

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3022

Hex Screw, 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

33

Cub Cadet 711-0299

Clevis Pin, .625 x 2.40

$36.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 711-04722

Clevis Pin, .375 x .969

$6.99

$

In Stock, only 3 left!

0

35

Cub Cadet 711-0509

Spring Insert

$60.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 711-05748

Rod, .50 x 22.65

$94.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 711-3402A

Rod, .50 x 10.428

$37.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

39

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

40

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0421

Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

42

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 912-3048

Jam Nut, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 714-0147

Cotter Pin, .125 x 1.75

$4.99

$

In Stock, Qty 6

0

47

Cub Cadet 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 12

0

48

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 720-0283

Foam Grip

$8.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 720-04139B

Grip. .50

$18.99

$

In Stock, Qty 10

0

51

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 932-0320

Extension Spring, .38 x 3.25

$10.99

$

In Stock, Qty 6

0

53

Cub Cadet 732-04293

Extension Spring, .75 x 3.240

$12.99

$

In Stock, only 1 left!

0

54

Cub Cadet 732-3123

Extension Spring, 1.25 x 6.7

$28.99

$

In Stock, only 4 left!

0

55

Cub Cadet 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

56

Cub Cadet 936-0160

Flat Washer, .530 x .930 x .050

$4.49

$

In Stock, only 1 left!

0

57

Cub Cadet 736-0315

Flat Washer, .760 x 1.500 x .120

$6.99

$

In Stock, Qty 6

0

58

Cub Cadet 936-0414

Flat Washer, .570 x 1.120 x .062
(Superseded to 736-0414)

$

$

Not available

59

Cub Cadet 936-0921

Flat Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

60

Cub Cadet 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 738-04162A

Shoulder Spacer, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

62

Cub Cadet 738-04320

Shoulder Screw, 5/16-18 x .405 x .435

$5.49

$

In Stock, only 2 left!

0

63

Cub Cadet 738-04420

Shoulder Spacer, 1.375 x .380 x .183

$6.99

$

In Stock, only 3 left!

0

64

Cub Cadet 938-0744A

Shoulder Screw, 1/2-13 x .625 x .36

$11.99

$

In Stock, only 4 left!

0

65

Cub Cadet 946-3059B

Blade Release Cable

$56.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 747-05715

Lift Rod

$53.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 948-0108

Flange Bearing, .503 x .75

$8.99

$

In Stock, Qty 20+

0

68

Cub Cadet 749-04953-4021

Blade Adjustment Handle
(Superseded to 749-04953A-4021)

$120.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 950-04143

Spacer, .258 x .50 x .50

$6.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 703-09157

Lift Arm Stiffener Bracket

Variations

Cub Cadet 703-09157-0637

STFNER-LIFT HNDL - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09157-4021

STFNER-LIFT HANDLE - CUB YELLOW 2 (4021)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 13

0

72

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

73

Cub Cadet 736-0258

Flat Washer, .385 x 1.000 x .135

$4.49

$

In Stock, only 4 left!

0
