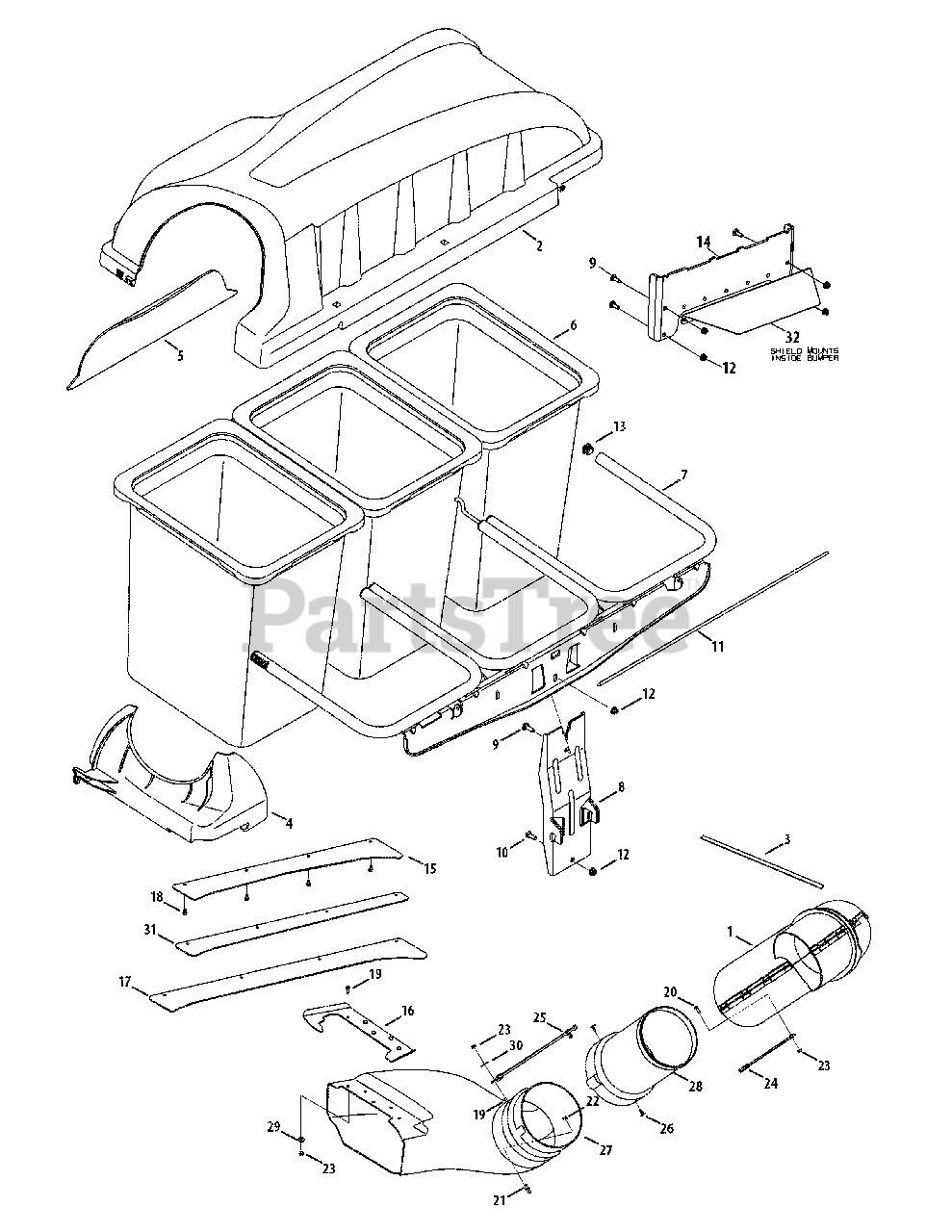

19A70012 (19A70012100) - Cub Cadet Triple Rear Bagger General Assembly Parts Diagram

Triple Rear Bagger

General Assembly Parts Diagram

  • Title

1

Cub Cadet 931-04295A

Chute Assembly, Bagger, Upper, 32in
(Superseded to 931-04295B)

$145.99

$

In Stock, only 1 left!

0

2

Cub Cadet 631-04298P

Cover Assembly, Bagger, Triple

$211.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 721-04388

Foam, Tape, .75 Wide X .125 Thick

$7.49

$

In Stock, Qty 9

0

4

Cub Cadet 731-06497

Support, Bagger, Upper Chute

$36.99

$

In Stock, only 1 left!

0

5

Cub Cadet 731-06504

Screen, Bagger

$17.99

$

In Stock, only 1 left!

0

6

Cub Cadet 964-04090A

Bag Assembly, Grassbag, Cub

$95.99

$

In Stock, Qty 20+

0

7

Cub Cadet 683-04498A-0637

Support Assembly, Bag, Triple
(Superseded to 683-04498B-0637)

$220.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 683-04519-0637

Bracket Assembly, Bagger, Vert. Support
(Superseded to 683-04519B-0637)

$143.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0276

Screw, Carriage, 5/16-18, 1.00

$3.99

$

In Stock, Qty 10

0

10

Cub Cadet 710-3008

Hex Head Screw, 5/16-18, .75, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 711-05079

Pin, Cover Hinge, Bagger, Triple

$22.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Grf, Nylon

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet 735-0246A

Plug, End

$5.99

$

In Stock, only 1 left!

0

14

Cub Cadet 703-07657-0637

Bracket, Bagger
(Superseded to 703-07657A-0637)

$128.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-07774

Baffle, Front, 48, Zf-S
(Superseded to 703-07774A)

Variations

Cub Cadet 703-07774-0637

Front Deck Baffle - POWDER BLACK (0637)

$57.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-07775

Mt, Boot, Zf-S
(Superseded to 703-07775A-0637)

Variations

Cub Cadet 703-07775-0637

Chute Mounting Plate - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 703-07777

Baffle, Front, 60, Zf-S

Variations

Cub Cadet 703-07777-0637

BAFFLE-FRONT DECK - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

$61.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0599

Screw, Tap, 1/4-20, 0.500, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0751

Hex Head Screw, 1/4-20, .620, Gr5, Std

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0924

Screw, Mach, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 911-04069

Pin, Grasscatcher, 1/4-20

$8.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0324

Nut, Hex Lock, 1/4-20, Gr8, Nylon

$3.99

$

In Stock, Qty 16

0

23

Cub Cadet 912-3027

Nut, Flange Lock, 1/4-20, Grf

$4.49

$

In Stock, Qty 17

0

24

Cub Cadet 723-04009A

Strap, Chute, 11.65 Lg

$11.99

$

In Stock, only 1 left!

0

25

Cub Cadet 723-0476

Strap, Chute

$33.99

$

In Stock, only 1 left!

0

26

Cub Cadet 726-3046

Clip, Ratchet, .250 Dia

$3.99

$

In Stock, Qty 16

0

27

Cub Cadet 731-04347A

Chute, Elbow

$208.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 731-06611

Chute, Bagger, Adapter, 8x13.5

$46.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0270

Wash, Bell, .265 X.75 X .062

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-3092

Wash, Flat, .265x1.0x.030, Ht

$3.99

$

In Stock, Qty 9

0

31

Cub Cadet 703-08330-0637

Baffle, Front 54
(Superseded to 703-08330A-0637)

$53.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 703-08692

Muffler Shield

$47.99

$

Usually ships in 3-6 days

0
