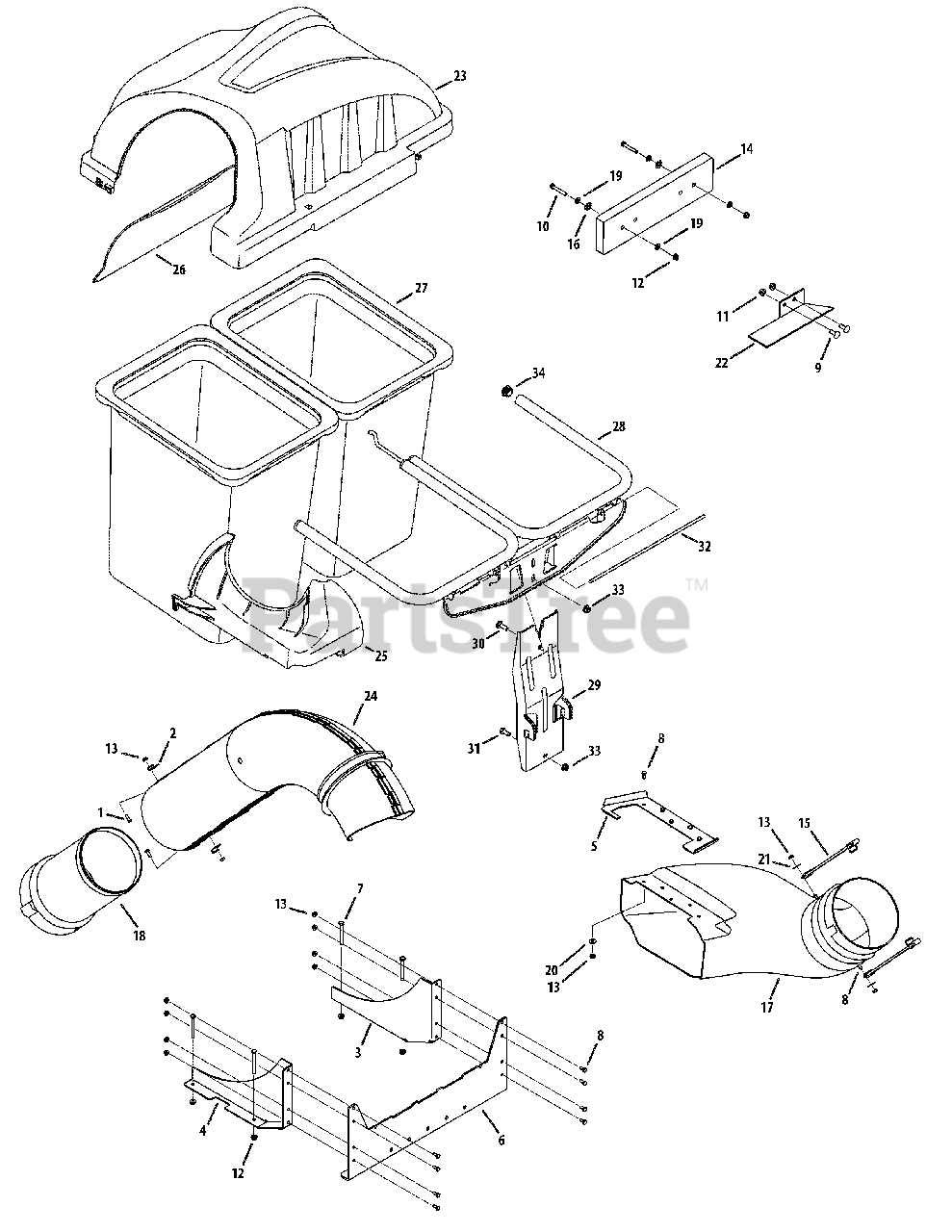

19A70010 (19A70010100) - Cub Cadet Twin Rear Bagger att4 General Assembly Parts Diagram

Twin Rear Bagger

General Assembly Parts Diagram

  • Title

1

Cub Cadet 01009362

Cap Screw, 1/4-20 x .750
(Superseded to 710-04064)

$8.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 96606

Retainer Hook Bracket

$7.49

$

In Stock, Qty 6

0

3

Cub Cadet 603-04082-0637

Mount Assembly, RH

$107.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04083-0637

Mount Assembly, LH

$107.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-05245A-0637

Boot Mount Bracket

$64.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-07670-0637

Catcher Mounting Bracket

$129.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0176

Hex Head Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0751

Hex Head Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3097

Carriage Bolt, 3/8-16 x 1.00

$6.99

$

In Stock, Qty 5

0

10

Cub Cadet 710-3103

Hex Head Screw, 5/16-18 x 2.00

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 912-3027

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 02002426

Weight Bar

Variations

Cub Cadet 02002426-0637

BAR- WEIGHT CAT - POWDER BLACK (0637)

$185.99

$

Usually ships in 3-6 days

0

$168.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0

16

Cub Cadet 726-04040

Push Nut, 5/16

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-04347

Discharge Chute Elbow
(Superseded to 731-04347A)

$208.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-06611

Chute Adapter

$46.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0270

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-3092

Flat Washer, .265 X 1.0 X .030

$3.99

$

In Stock, Qty 6

0

22

Cub Cadet 783-05183-0637

Baffle

$

$

Not available

23

Cub Cadet 931-04292

Twin Bagger Cover Assembly

$147.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 631-04295P

Upper Chute Assembly
(Superseded to 931-04295B)

$145.99

$

In Stock, only 1 left!

0

25

Cub Cadet 731-06497

Upper Chute Support

$36.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-06504

Bagger Cover Screen

$17.99

$

In Stock, only 1 left!

0

27

Cub Cadet 964-04090

Grass-bag Assembly
(Superseded to 964-04090A)

$95.99

$

In Stock, Qty 20+

0

28

Cub Cadet 683-04461-0637

Twin Bag Support Assembly
(Superseded to 683-04461B-0637)

$207.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 683-04519-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$143.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 711-04988

Cover Hinge Pin

$12.99

$

In Stock, only 1 left!

0

33

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 735-0246A

End Plug

$5.99

$

In Stock, only 2 left!
