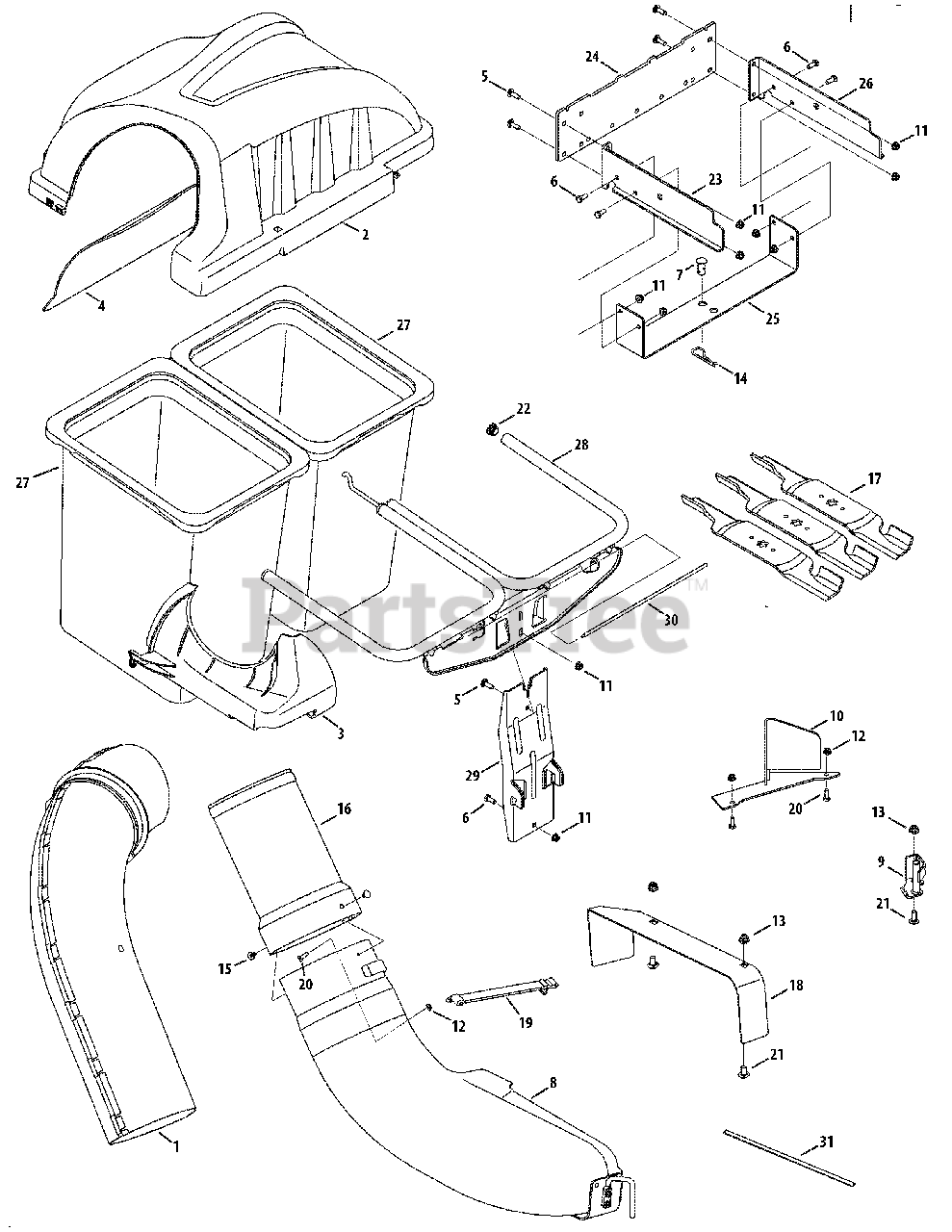

19A70006 (19A70006100) - Cub Cadet Twin Rear Bagger att General Assembly Parts Diagram

Twin Rear Bagger

General Assembly Parts Diagram

  • Title

1

Cub Cadet 931-04295

Upper Chute Assembly

$

$

Not available

2

Cub Cadet 931-04292

Double Bagger Cover Assembly

$147.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-06497

Upper Chute Support

$36.99

$

In Stock, only 1 left!

0

4

Cub Cadet 731-06504

Bagger Cover Screen

$17.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-0309A

Clevis Pin, .62" Dia.

$12.99

$

In Stock, Qty 7

0

8

Cub Cadet 631-04493

Bagger Discharge Chute, Elbow

$236.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 683-0617A-0637

Chute Stop Bracket

$64.99

$

In Stock, only 3 left!

0

10

Cub Cadet 703-05783-0637

Deck Baffle

$87.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 16

0

15

Cub Cadet 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

16

Cub Cadet 731-06611

Bagger Chute Adapter

$46.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 742-04056C-0637

Blade, 17.9 Lg. Star Mount
(Superseded to 942-04056C)

$35.99

$

In Stock, only 3 left!

0

18

Cub Cadet 783-06694-0637

Chute Discharge Plate
(Superseded to 783-06694A-0637)

$43.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0

20

Cub Cadet 710-3015

Hex Head Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 735-0246A

End Plug

$5.99

$

In Stock, only 1 left!

0

23

Cub Cadet 783-06156-0637

Mounting Bracket, RH

$

$

Not available

24

Cub Cadet 783-06168-0637

Universal Mounting Bracket

$140.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 783-06230-0637

Universal Bracket Support, I-Series

$

$

Not available

26

Cub Cadet 783-06231-0637

Mounting Bracket, LH

$

$

Not available

27

Cub Cadet 964-04090

Grass-bag Assembly
(Superseded to 964-04090A)

$95.99

$

In Stock, Qty 20+

0

28

Cub Cadet 683-04461

Double Bag Support Assembly
(Superseded to 683-04461B-0637)

Variations

Cub Cadet 683-04461-0637

Double Bag Support Assembly - POWDER BLACK (0637)

$207.99

$

Usually ships in 3-6 days

0

$207.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 683-04519

Vertical Support Bracket
(Superseded to 683-04519B-0637)

Variations

Cub Cadet 683-04519-0637

Vertical Support Bracket - POWDER BLACK (0637)

$143.99

$

Usually ships in 3-6 days

0

$143.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 711-04988

Cover Hinge Pin

$12.99

$

In Stock, only 1 left!

0

31

Cub Cadet 721-04388

Adhesive Strip

$7.49

$

In Stock, Qty 9

0
