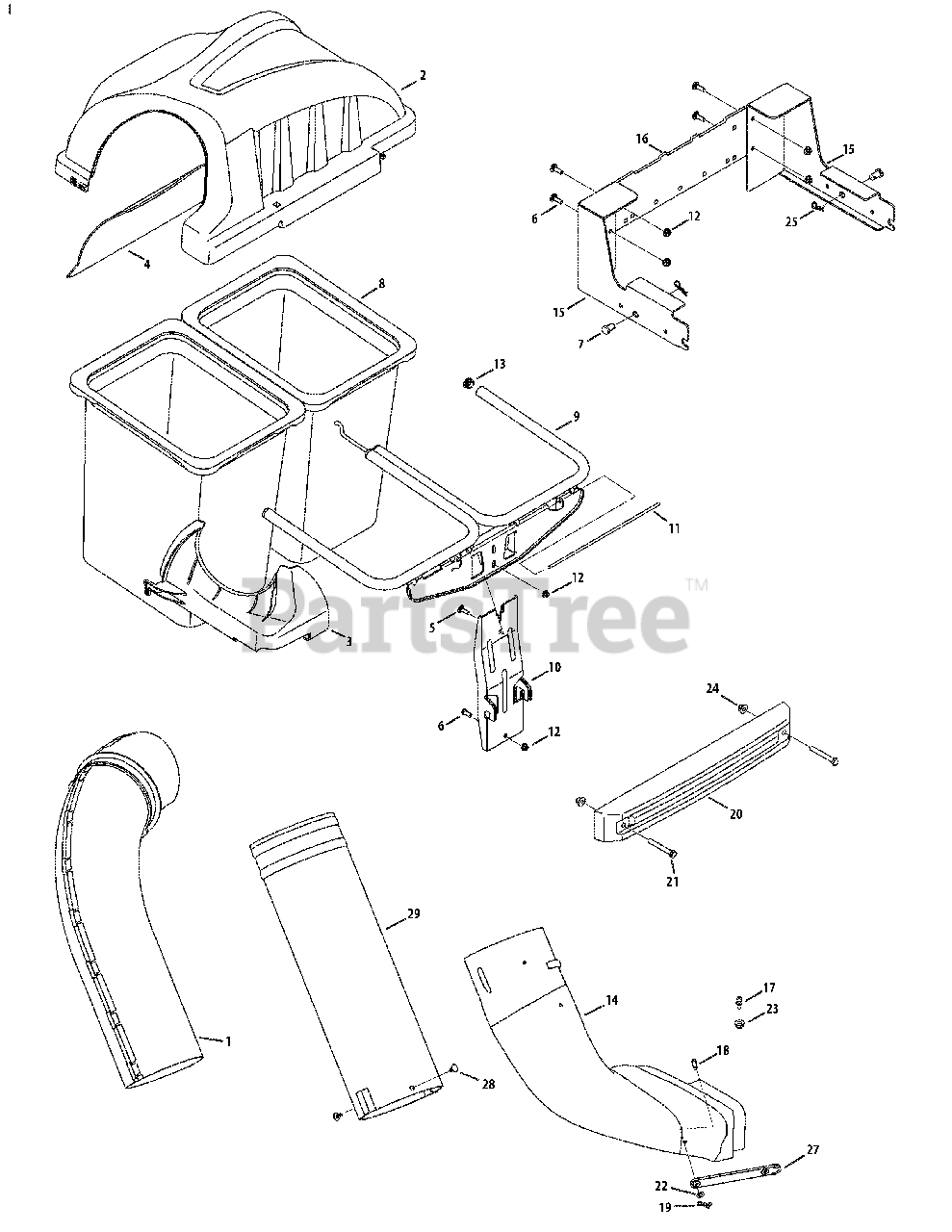

19A70005 (19A70005100) - Cub Cadet Twin Rear Bagger att General Assembly Parts Diagram

Twin Rear Bagger

General Assembly Parts Diagram

  • Title

1

Cub Cadet 631-04295P

Upper Chute Assembly
(Superseded to 931-04295B)

$145.99

$

In Stock, only 1 left!

0

2

Cub Cadet 931-04292

Twin Bagger Cover Assembly

$147.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-06497

Upper Chute Support

$36.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-06504

Bagger Cover Screen

$17.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 14

0

6

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 911-0332

Clevis Pin, .50" Dia.

$16.99

$

In Stock, Qty 18

0

8

Cub Cadet 964-04090

Grass-bag Assembly
(Superseded to 964-04090A)

$95.99

$

In Stock, Qty 20+

0

9

Cub Cadet 983-04482-4021

Twin Bag Support Assembly

$

$

Not available

10

Cub Cadet 683-04519

Vertical Support Bracket
(Superseded to 683-04519B-0637)

Variations

Cub Cadet 683-04519-0637

Vertical Support Bracket - POWDER BLACK (0637)

$143.99

$

Usually ships in 3-6 days

0

$143.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-04988

Cover Hinge Pin

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 735-0246A

End Plug

$5.99

$

In Stock, only 1 left!

0

14

Cub Cadet 731-04777C

Discharge Chute Elbow

$163.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 689-00111

RZT Hitch Bracket Kit (RH & LH)
(Superseded to 689-00204A)

$191.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 783-06168-0637

Universal Cross Bracket

$140.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 911-04069

Grass-catcher Pin

$8.49

$

In Stock, Qty 20+

0

18

Cub Cadet 711-05063

Clevis Pin 5/16 x 3/4

$3.99

$

In Stock, only 4 left!

0

19

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet 719-04271A

Bagger Weight

$252.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-3022

Hex Head Screw, 3/8 - 16 x 2.75

$4.99

$

In Stock, Qty 7

0

22

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 8

0

23

Cub Cadet 712-04064

Flange Lock Nut, 1/4 - 20

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04065

Flange Lock Nut, 3/8 - 16

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 914-04023

Cotter Pin, .080 x 1.5625 Internal
(Superseded to 714-04023)

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet 719-04271A

RZT Bagger Weight

$252.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 723-04008A

Chute Strap

$9.99

$

In Stock, Qty 20+

0

28

Cub Cadet 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 731-06668

Bagger Chute Adapter, 7 In.

$80.99

$

Usually ships in 3-6 days

0
