19A70004OEM - White Outdoor Twin Bag Grass Collector (2010) General Assembly Parts Diagram

Twin Bag Grass Collector

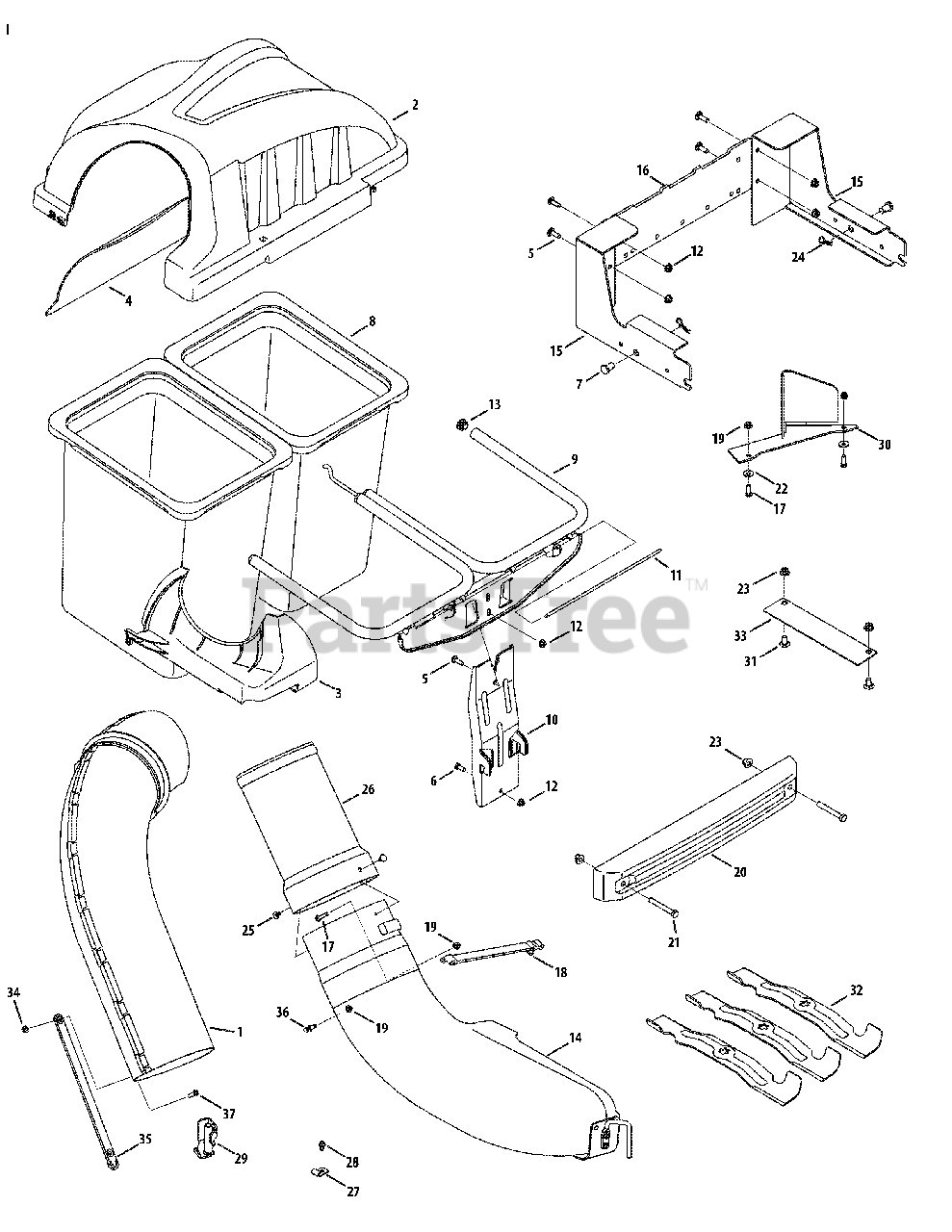

General Assembly Parts Diagram

  • Title

1

White Outdoor 631-04295P

Upper Chute Assembly
(Superseded to 931-04295B)

$145.99

$

In Stock, only 1 left!

0

2

White Outdoor 931-04292

Twin Bagger Cover Assembly

$147.99

$

Usually ships in 3-6 days

0

3

White Outdoor 731-06497

Upper Chute Support

$36.99

$

In Stock, only 1 left!

0

4

White Outdoor 731-06504

Bagger Cover Screen

$17.99

$

In Stock, only 1 left!

0

5

White Outdoor 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 911-0332

Clevis Pin, .50" Dia.

$16.99

$

In Stock, Qty 14

0

8

White Outdoor 964-04096

Grass-bag Assembly
(Superseded to 964-05104)

$95.99

$

In Stock, Qty 20+

0

9

White Outdoor 683-04461-0637

Twin Bag Support Assembly
(Superseded to 683-04461B-0637)

$207.99

$

Usually ships in 3-6 days

0

10

White Outdoor 683-04519-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$143.99

$

Usually ships in 3-6 days

0

11

White Outdoor 711-04988

Cover Hinge Pin

$12.99

$

In Stock, only 1 left!

0

12

White Outdoor 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 735-0246A

End Plug

$5.99

$

In Stock, only 2 left!

0

14

White Outdoor 631-04300A

Discharge Chute Elbow
(Superseded to 631-04300C)

$283.99

$

Usually ships in 3-6 days

0

15

White Outdoor 689-00111

RZT Hitch Bracket Kit (RH & LH)
(Superseded to 689-00204A)

$191.99

$

Usually ships in 3-6 days

0

16

White Outdoor 783-06168-0637

Universal Cross Bracket

$140.99

$

Usually ships in 3-6 days

0

17

White Outdoor 710-3015

Hex Head Screw, 1/4 - 20 x .75

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0

19

White Outdoor 712-04064

Flange Lock Nut, 1/4 - 20

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 719-04271A

Bagger Weight

$252.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-3022

Hex Head Screw, 3/8 - 16 x 2.75

$4.99

$

In Stock, Qty 7

0

22

White Outdoor 736-0270

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 712-04065

Flange Lock Nut, 3/8 - 16

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 914-04023

Cotter Pin, .080 x 1.5625 Internal
(Superseded to 714-04023)

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 15

0

26

White Outdoor 731-06611

Bagger Chute Adapter, 8 x 13.5

$46.99

$

In Stock, only 1 left!

0

27

White Outdoor 96606

Retainer Hook Bracket

$7.49

$

In Stock, Qty 7

0

28

White Outdoor 710-0599

Self-Tap Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 683-0617A-0637

Chute Stop Bracket

$64.99

$

In Stock, only 3 left!

0

30

White Outdoor 703-05783-0637

Deck Baffle, 50"

$87.99

$

Usually ships in 3-6 days

0

31

White Outdoor 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 742-04056C-0637

Bagging Blade, 17.90 Lg. Star
(Superseded to 942-04056C)

$35.99

$

In Stock, only 3 left!

0

33

White Outdoor 783-06418-0637

Chute Discharge Plate

$18.99

$

Usually ships in 3-6 days

0

34

White Outdoor 912-3027

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 723-04009A

Chute Strap

$11.99

$

Usually ships in 3-6 days

0

36

White Outdoor 911-04069

Grass-catcher Pin

$8.49

$

In Stock, Qty 20+

0

37

White Outdoor 710-0924

Machine Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0
