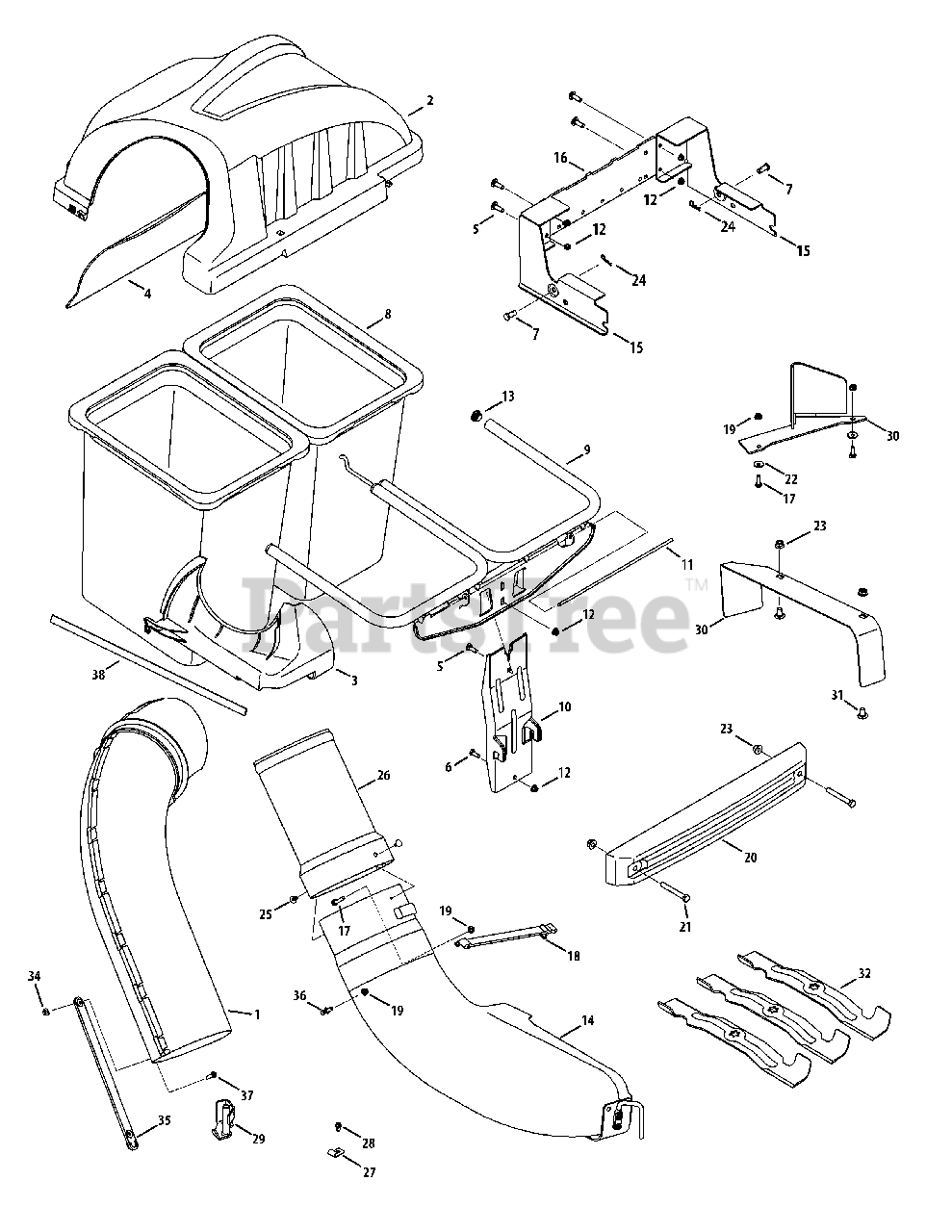

19A70004 (19A70004100) - Cub Cadet Twin Rear Bagger (2012) General Assembly Parts Diagram

Twin Rear Bagger

General Assembly Parts Diagram

  • Title

1

Cub Cadet 931-04295A

Upper Chute Assembly
(Superseded to 931-04295B)

$145.99

$

In Stock, only 1 left!

0

2

Cub Cadet 931-04292

Twin Bagger Cover Assembly

$147.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-06497

Upper Chute Support

$36.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-06504

Bagger Cover Screen

$17.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 14

0

6

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 911-0310

Clevis Pin, .50" Dia.
(Superseded to 711-0310)

$

$

Not available

8

Cub Cadet 964-04090

Grass-bag Assembly
(Superseded to 964-04090A)

$95.99

$

In Stock, Qty 20+

0

9

Cub Cadet 683-04461-0637

Twin Bag Support Assembly
(Superseded to 683-04461B-0637)

$207.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 683-04519-0637

Vertical Support Bracket
(Superseded to 683-04519B-0637)

$143.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-04988

Cover Hinge Pin

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 735-0246A

End Plug

$5.99

$

In Stock, only 1 left!

0

14

Cub Cadet 631-04300A

Discharge Chute Elbow
(Superseded to 631-04300C)

$283.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 689-00204

RZT Hitch Bracket Kit
(Superseded to 689-00204A)

Note: (Includes RH, LH & Cross Bracket)

$191.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 783-06168-0637

Universal Cross Bracket

$140.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-3015

Hex Head Screw, 1/4 - 20 x .75

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0

19

Cub Cadet 712-04064

Flange Lock Nut, 1/4 - 20

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 719-04271A

Bagger Weight

Note: * RZT Models Only!

$252.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-3022

Hex Head Screw, 3/8 - 16 x 2.75

Note: * RZT Models Only!

$4.99

$

In Stock, Qty 7

0

22

Cub Cadet 736-0270

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04065

Flange Lock Nut, 3/8 - 16

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 914-04023

Cotter Pin, .080 x 1.5625 Internal
(Superseded to 714-04023)

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 731-06611

Bagger Chute Adapter, 8 x 13.5

$46.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 96606

Retainer Hook Bracket

$7.49

$

In Stock, Qty 7

0

28

Cub Cadet 710-0599

Self-Tap Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 683-0617A-0637

Chute Stop Bracket

$64.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 703-05783-0637

Deck Baffle, 50"

$87.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 742-04056C-0637

Bagging Blade, 17.90 Lg. Star
(Superseded to 942-04056C)

$35.99

$

In Stock, only 3 left!

0

33

Cub Cadet 783-06694-0637

Chute Discharge Plate
(Superseded to 783-06694A-0637)

$43.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 912-3027

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 723-04009A

Chute Strap

$11.99

$

In Stock, only 1 left!

0

36

Cub Cadet 911-04069

Grass-catcher Pin

$8.49

$

In Stock, Qty 20+

0

37

Cub Cadet 710-0924

Machine Screw, 1/4-20

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 721-04388

Adhesive Strip

$7.49

$

In Stock, Qty 10

0
