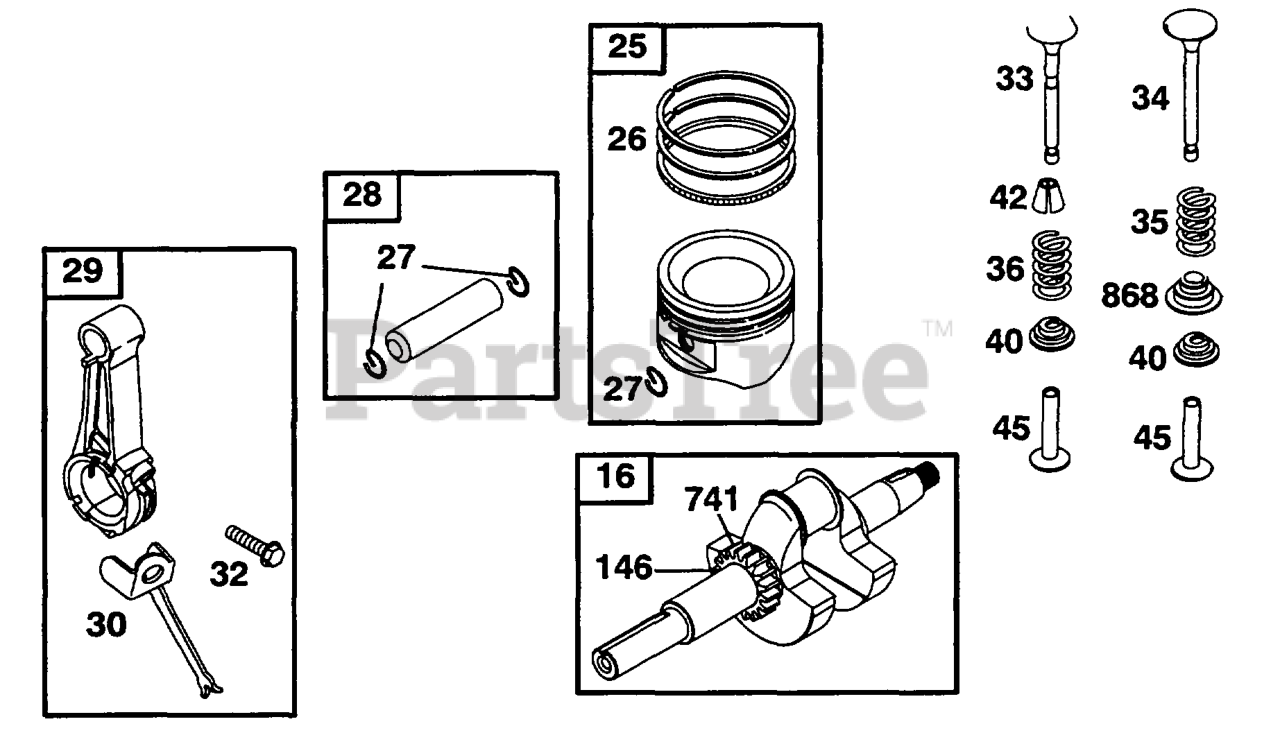

19A402-0699-XX - Briggs & Stratton Horizontal Engine Connecting Rod Parts Diagram

Horizontal Engine

Connecting Rod Parts Diagram

  • Title

16

Briggs & Stratton 495790

Crankshaft

$176.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391673

Piston Assembly (Standard)
(Superseded to 499907)

$

$

Not available

25

Briggs & Stratton 391674

Piston Assembly (.010" O.S.)

$

$

Not available

25

Briggs & Stratton 391675

Piston Assembly (.020" O.S.)
(Superseded to 499909)

$149.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391676

Piston Assembly (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 299743

Ring Set (Standard Chrome)
(Superseded to 690014)

$

$

Not available

26

Briggs & Stratton 391669

Ring Set (Standard)
(Superseded to 499921)

$47.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391670

Ring Set (.010" O.S.)

$18.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391671

Ring Set (.020" O.S.)
(Superseded to 690019)

$59.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 690020

Ring Set (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 691073

Lock-Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295840

Pin-Piston (Standard)
(Superseded to 499302)

$15.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295841

Pin-Piston (.005" O.S.)

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390401

Rod-Connecting (Standard)

$

$

Not available

29

Briggs & Stratton 390773

Rod-Connecting (.020" Undersize)

$103.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 222113

Dipper-Connecting Rod
(Superseded to 691728)

$8.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 690352

Screw (Connecting Rod)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 691287

Valve-Exhaust

$

$

Not available

34

Briggs & Stratton 261055

Valve-Intake
(Superseded to 261055S)

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 65906

Spring-Valve (Intake)
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer-Valve (Intake)
(Superseded to 690656)

$

$

Not available

42

Briggs & Stratton 494553

Keeper-Valve (Exhaust)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 94388

Key-Timing
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 691288

GEAR, Timing

$21.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 497656

Seal-Valve
(Superseded to 692324)

$

$

Not available
