19A40039 (19A40039100) - Cub Cadet 175lb Broadcast Spreader General Assembly Parts Diagram

175lb Broadcast Spreader

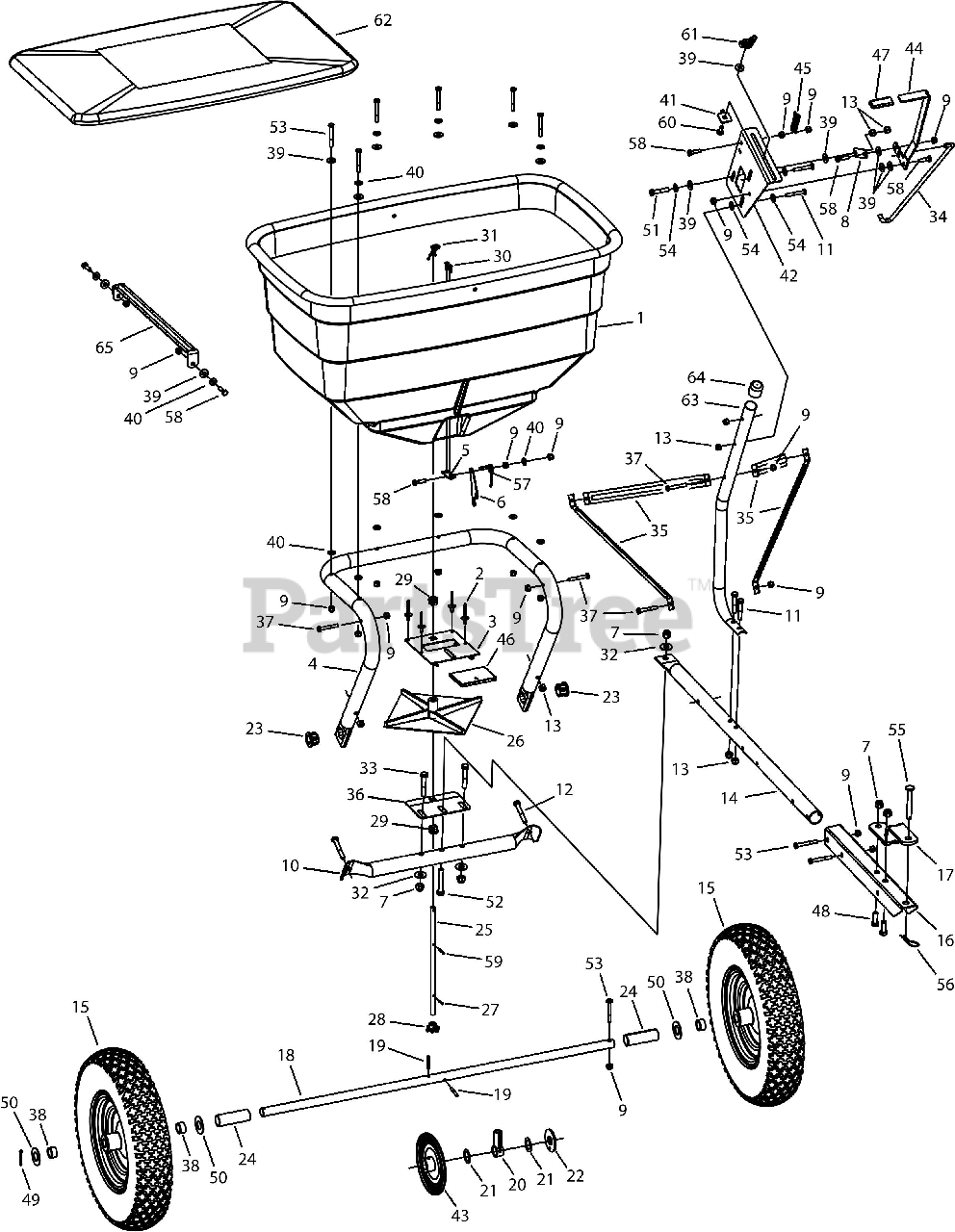

General Assembly Parts Diagram

  • Title

1

Cub Cadet AF-44480

Hopper

$153.99

$

Usually ships in 3-6 days

0

2

n/a

Rivet, Stainless

Note: Purchase standard hardware locally

$

$

Not available

3

Cub Cadet AF-65129

Guide Closure Assembly

$39.99

$

Usually ships in 3-6 days

0

4

Cub Cadet AF-44462

Frame Tube

$51.99

$

Usually ships in 3-6 days

0

5

Cub Cadet AF-23753

Slide Gate Angle Bracket

$1.49

$

Usually ships in 3-6 days

0

6

Cub Cadet AF-23758

Slide Gate Bracket

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0130

Nylock Hex Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

8

Cub Cadet AF-24857

Flow Control Link

$1.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-0324

Nylock Hex Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

10

Cub Cadet AF-43808

Crossover Tube

$35.99

$

Usually ships in 3-6 days

0

11

Cub Cadet AF-43084

Hex Bolt, 5/16-18 x 1-3/4"

$0.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-3103

Hex Bolt, 5/16-18 x 2"

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 912-0429

Nylock Hex Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet AF-48864

Hitch Tube

$24.99

$

Usually ships in 3-6 days

0

15

Cub Cadet AF-41441C

Wheel

$64.99

$

Usually ships in 3-6 days

0

16

Cub Cadet AF-25080Y

Hitch Extension Bracket

$29.99

$

Usually ships in 3-6 days

0

17

Cub Cadet AF-23014Y

Hitch Bracket

$17.99

$

Usually ships in 3-6 days

0

18

Cub Cadet AF-25017

Axle Shaft

$36.99

$

Usually ships in 3-6 days

0

19

n/a

Spring Pin, 3/16 x 3-1/4"

Note: Purchase standard hardware locally

$

$

Not available

20

Cub Cadet AF-43871

Axle Shaft Bushing

$28.99

$

Usually ships in 3-6 days

0

21

Cub Cadet HG-44008

Flat Washer, .78"

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet AF-1540-162

Flat Washer, 1/2"

$2.99

$

Usually ships in 3-6 days

0

23

Cub Cadet AF-47615

Flange Bearing

$2.49

$

Usually ships in 3-6 days

0

24

Cub Cadet AF-48665

Spacer Tube

$1.99

$

Usually ships in 3-6 days

0

25

Cub Cadet AF-25305

Sprocket Shaft

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 04367

Spreader Plate

$77.99

$

Usually ships in 3-6 days

0

27

Cub Cadet AF-43850

Spring Pin, 1/8 x 5/8"

$9.49

$

Usually ships in 3-6 days

0

28

Cub Cadet AF-44468

6 Tooth Sprocket

$17.99

$

Usually ships in 3-6 days

0

29

Cub Cadet AF-44285

Delrin Bushing

$20.99

$

Usually ships in 3-6 days

0

30

n/a

Rivet

Note: Purchase standard hardware locally

$

$

Not available

31

Cub Cadet AF-48934

Hairpin Agitator

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet AF-43070

Flat Washer, 3/8"

$8.49

$

Usually ships in 3-6 days

0

33

Cub Cadet AF-43054

Hex Bolt, 3/8-16 x 2"

$

$

Not available

34

Cub Cadet AF-41549

Flow Control Rod

$12.99

$

Usually ships in 3-6 days

0

35

Cub Cadet AF-23525

Hitch Brace

$

$

Not available

36

Cub Cadet AF-23762

Shaft Support Plate

$4.99

$

Usually ships in 3-6 days

0

37

Cub Cadet AF-1509-69

Hex Bolt, 1/4-20 x 1-3/4"

$0.99

$

Usually ships in 3-6 days

0

38

Cub Cadet AF-43631

Ball Bearing

$6.99

$

Usually ships in 3-6 days

0

39

Cub Cadet AF-1543-69

Nylon Washer

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet AF-43088

Flat Washer, 1/4"

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet AF-27177

Adjustable Stop

$1.49

$

Usually ships in 3-6 days

0

42

Cub Cadet AF-24915Y

Flow Control Mount Bracket

$22.99

$

Usually ships in 3-6 days

0

43

Cub Cadet AF-62474

Gear Assembly

$116.99

$

Usually ships in 3-6 days

0

44

Cub Cadet AF-24917Y

Flow Control Arm

$26.99

$

Usually ships in 3-6 days

0

45

Cub Cadet AF-43000

Spring

$5.49

$

Usually ships in 3-6 days

0

46

Cub Cadet AF-23533

Closure Plate

$18.99

$

Usually ships in 3-6 days

0

47

Cub Cadet AF-43848

Flow Control Arm Grip

$2.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 910-0253

Hex Bolt, 3/8-16 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet AF-43093

Cotter Pin, 1/8" x 1-1/2"

$0.99

$

Usually ships in 3-6 days

0

50

Cub Cadet AF-43009

Flat Washer, 3/4"
(Superseded to 936-0316)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 710-0805A

Hex Bolt, 5/16-18 x 1-1/2"

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet AF-HA180132

Hex Bolt, 3/8-16 x 2-1/4"

$1.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-0501

Hex Bolt, 1/4-20 x 2"

$7.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 936-0159

Washer, 5/16"
(Superseded to 736-0159)

$

$

Not available

55

Cub Cadet AF-47623

Hitch Pin

$1.49

$

Usually ships in 3-6 days

0

56

Cub Cadet AF-43343

Hair Cotter Pin, 1/8"

$12.99

$

Usually ships in 3-6 days

0

57

Cub Cadet AF-44566

Torsion Spring

$1.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-0597

Hex Bolt, 1/4-20 x 1"

$3.99

$

In Stock, Qty 13

0

59

Cub Cadet AF-46055

Spring Pin, 1/8 x 1"

$1.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 710-0703

Carriage Bolt, 1/4-20 x 3/4"

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet AF-47141

Nylon Wing Nut

$1.49

$

Usually ships in 3-6 days

0

62

Cub Cadet AF-40825

Vinyl Cover

$33.99

$

Usually ships in 3-6 days

0

63

Cub Cadet AF-48514

Flow Control Mounting Tube

$17.99

$

Usually ships in 3-6 days

0

64

Cub Cadet AF-44481

Vinyl Cap

$3.99

$

Usually ships in 3-6 days

0

65

Cub Cadet AF-23697Y

Hopper Strap

$16.99

$

Usually ships in 3-6 days

0

769-11328

Owners Manual

$

$

Not available
