19A40025 (19A40025100) - Cub Cadet 60" FAB Mower Deck (2015) att2 Mower Deck 60-Inch Fabricated Deck Parts Diagram

60" FAB Mower Deck

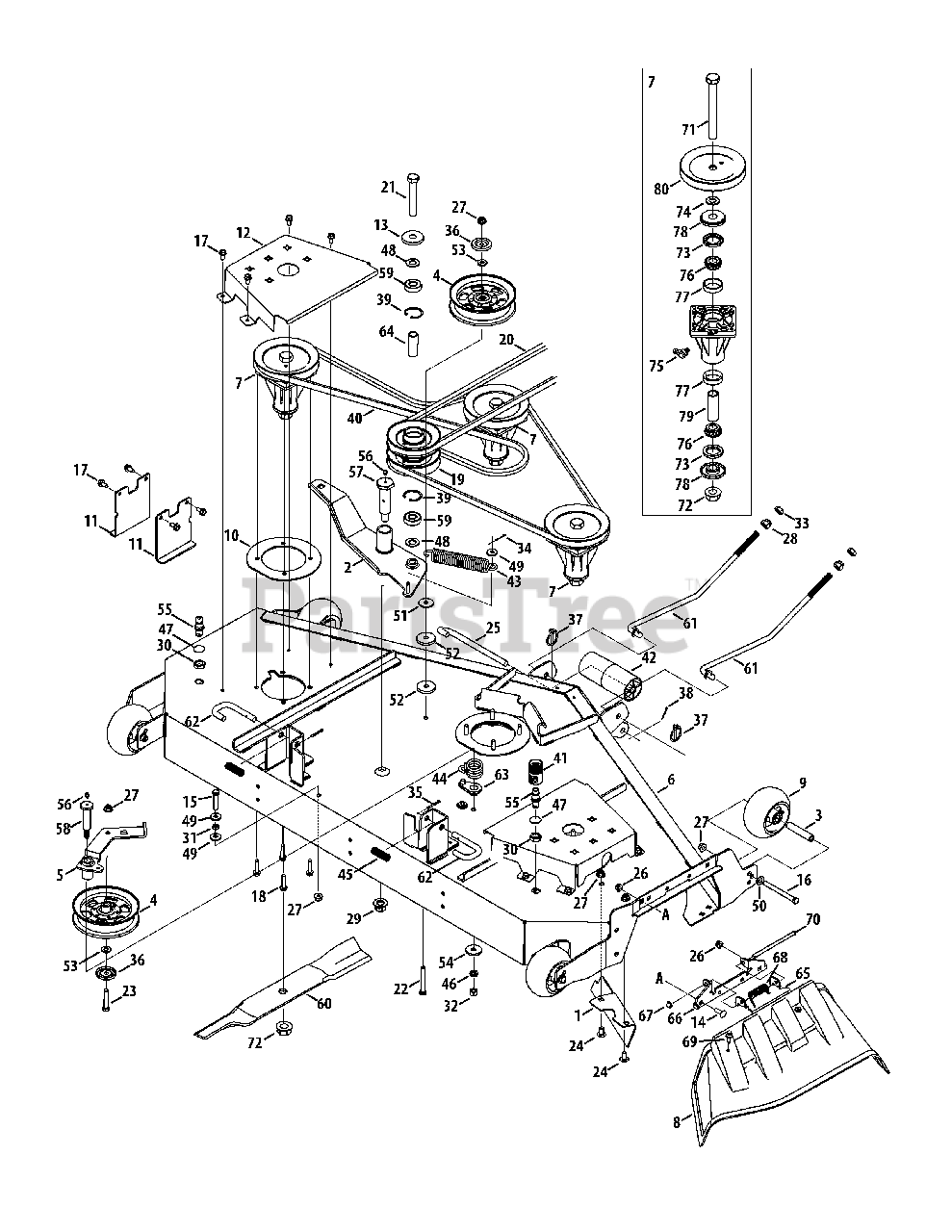

Mower Deck 60-Inch Fabricated Deck Parts Diagram

  • Title

1

Cub Cadet 02005195-0637

Chute Baffle

$45.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04851B-0637

PTO Idler Assembly

$113.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 750-3193

Spacer, .390 x .620 x 3.04

$18.99

$

In Stock, Qty 20+

0

4

Cub Cadet 756-05053

Idler Pulley, 5.00 Dia.
(Superseded to 756-05053A)

$83.99

$

In Stock, only 1 left!

0

5

Cub Cadet 603-05249

Idler Assembly

Variations

Cub Cadet 603-05249-0637

ARM ASM-IDLER - POWDER BLACK (0637)

$72.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 903-05223-0637

Deck Assembly
(Superseded to 903-05223A-0637)

$2039.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 918-07096

Spindle Assembly
(Superseded to 918-07096A)

$201.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 631-05176

Discharge Chute Assembly
(Superseded to 631-05544)

$106.99

$

In Stock, only 1 left!

0

9

Cub Cadet 634-3159

Wheel, 5.0

$34.99

$

In Stock, Qty 20+

0

10

Cub Cadet 703-07787-0637

SPINDLE REINFORCEMENT PLATE (POWDER BLACK)

$33.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-08458-0637

Up-Stop Bracket

$33.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-09965-0637

Belt Cover

$97.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-10047

Pulley Cap

$15.99

$

In Stock, only 1 left!

0

14

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 10

0

15

Cub Cadet 710-0347

Hex Screw, 3/8 x 16 x 1.75

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0411

Hex Screw, 3/8 x 16 x 4.00

$8.49

$

In Stock, Qty 17

0

17

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-04605A

Hex Washer Screw, 5/16-18 x 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 756-05155

Double Pulley

$157.99

$

In Stock, only 1 left!

0

20

Cub Cadet 954-04055

PTO Belt

$78.99

$

In Stock, only 1 left!

0

21

Cub Cadet 710-1143A

Hex Screw, 5/8 x 18 x 4.0

$11.99

$

In Stock, only 1 left!

0

22

Cub Cadet 710-3022

Hex Cap Screw, 3/8 x 16 x 2.75

$4.99

$

In Stock, Qty 7

0

23

Cub Cadet 710-3144

Hex Cap Screw, 3/8 x 16 x 2.00

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 711-3314A

Roller Pin, 1/2 x 7.31

$25.99

$

In Stock, Qty 11

0

26

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

27

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-04243

Flex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 712-04327

Flange Lock Nut, 5/8-18

$7.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

31

Cub Cadet 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 19

0

32

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

33

Cub Cadet 912-3048

Nut, Jam, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 16

0

34

Cub Cadet 914-0111

Cotter Pin 3/32" Dia. x 1" Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

35

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

37

Cub Cadet 753-04070

Pin, Lynch x .1875

$9.99

$

In Stock, Qty 20+

0

38

Cub Cadet 714-3004

Cotter Pin, 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

39

Cub Cadet 916-3020

Retainer Ring

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 954-05111

Deck Belt

$81.99

$

In Stock, only 1 left!

0

41

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

42

Cub Cadet 731-05679B

Front Roller

$18.99

$

In Stock, Qty 20+

0

43

Cub Cadet 732-04896

Extension Spring, 1.25 x 6.9

$28.99

$

In Stock, only 3 left!

0

44

Cub Cadet 732-3067

Idler Torsion Spring, 1.10 x 1.3

$23.99

$

In Stock, only 1 left!

0

45

Cub Cadet 932-3127

Compression Spring, .66 x 1.8

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

47

Cub Cadet 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

48

Cub Cadet 736-0237

Flat Washer, .650 x 1.250 x .075

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0258

Falt Washer, .385 x 1.00 x .135

$4.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0320

Flat Washer .38 x 1.38 x .125

$6.99

$

In Stock, Qty 7

0

52

Cub Cadet 736-04131

Flat Washer, .4375 x 1.75 x .25

$15.99

$

In Stock, only 1 left!

0

53

Cub Cadet 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

54

Cub Cadet 736-3082A

Flat Washer, .45 x 1.5 x .172

$9.99

$

In Stock, Qty 16

0

55

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

56

Cub Cadet 937-3000

Drive Lube Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

57

Cub Cadet 738-04544

SHOULDER BOLT 1.0 x 3.0 5/8-18
(Superseded to 738-04544A)

$55.99

$

In Stock, only 3 left!

0

58

Cub Cadet 738-04545

SHOULDER BOLT .68 x 2.44 7/16-14

$26.99

$

In Stock, only 2 left!

0

59

Cub Cadet 941-0524A

Ball Bearing, .625 x 40 x 12

$23.99

$

In Stock, Qty 20+

0

60

Cub Cadet 942-04415

Blade, 21.00

$35.99

$

In Stock, Qty 20+

0

60

Cub Cadet 490-110-C163

(Cub Cadet) 60" BLADE SET (942-04415)

$106.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 747-06510

Front Hanger Rod
(Superseded to 603-05260)

$177.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 747-3188

Mower Support Pin

$34.99

$

In Stock, only 3 left!

0

63

Cub Cadet 748-3100A

Retainer Spring

$28.99

$

In Stock, only 1 left!

0

64

Cub Cadet 750-06406

Spacer, .88 x .635 x 2.30

$15.99

$

In Stock, only 1 left!

0

65

Cub Cadet 703-09625A-0637

Chute Bracket

$52.99

$

In Stock, only 1 left!

0

66

Cub Cadet 703-09626

Chute Bracket
(Superseded to 703-09626A)

Variations

Cub Cadet 703-09626-0637

USE 703-09626A-0637 BRKT-CHUT - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$20.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 726-04009

PUSH CAP
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0

68

Cub Cadet 732-05128A

Torsion Spring

$4.49

$

In Stock, only 1 left!

0

69

Cub Cadet 738-04549A

TORX SHOULDER SCREW 1/4-20

$7.49

$

In Stock, only 2 left!

0

70

Cub Cadet 747-06318

Chute Rod
(Superseded to 747-06318A)

$10.99

$

In Stock, only 1 left!

0

71

Cub Cadet 710-06082A

Hex Cap Screw, 3/4-16 x 6.50

$23.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 712-3078

Nut, 3/4-16, Flangelock

$9.99

$

In Stock, Qty 20+

0

73

Cub Cadet 921-3018A

Oil Seal

$8.49

$

In Stock, Qty 20+

0

74

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 737-05024

Grease Fitting, 3/16

$5.99

$

In Stock, Qty 16

0

76

Cub Cadet 941-04089

Cone Bearing, Tapered Roller, .750
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

77

Cub Cadet 941-04091

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

78

Cub Cadet 748-3065A

DECK SPINDLE SPACER

$13.99

$

In Stock, Qty 14

0

79

Cub Cadet 750-06139

Spacer, .78 x 1.00 x 2.895

$11.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 756-04458A

V-Type Pulley

$37.99

$

Usually ships in 3-6 days

0
